Differential Carrier - Vehicles With: Limited-Slip Differential: Assembly

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

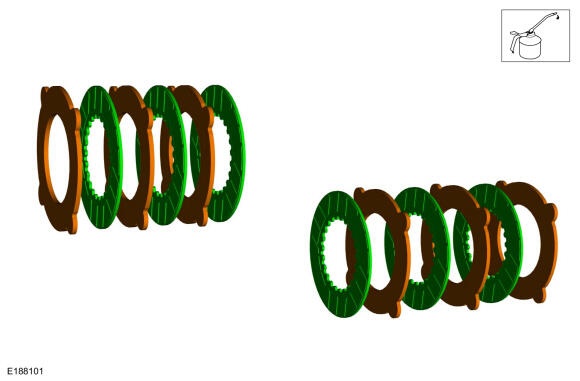

Lubricate the differential steel clutch plates. Soak the differential friction plates for no less than 15 minutes.
Material : Friction Modifier (EST-M2C118-A)

Courtesy of FORD MOTOR COMPANY

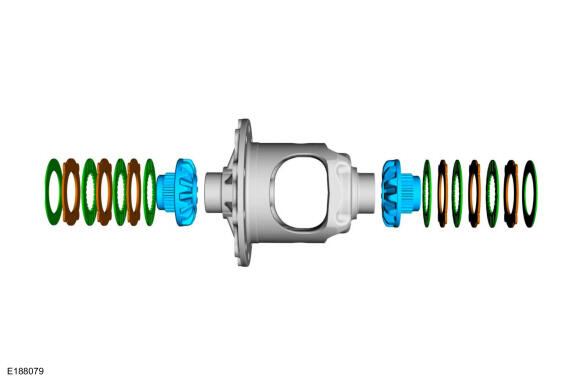

NOTE: Do not mix the clutch plates, clutch discs or shim from one side with the other.

NOTE: The Belleville spring is a dished plate.

Assemble the differential clutch packs, side gear thrust washers on the respective differential side gears.

Courtesy of FORD MOTOR COMPANY

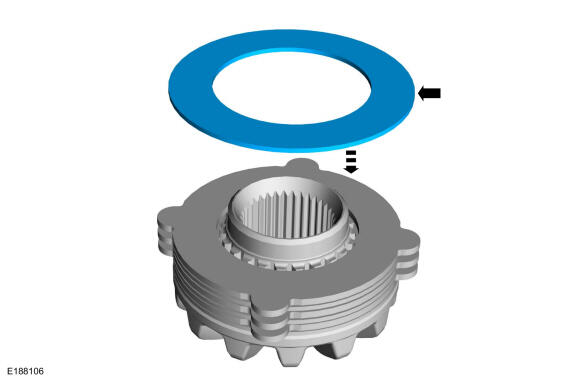

NOTE: Do not use more than 2 shims per side.

With the special tool removed, Install the shim on the differential side gear and clutch pack assembly.

Courtesy of FORD MOTOR COMPANY

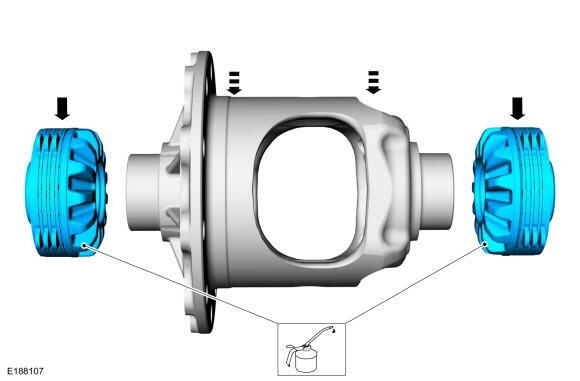

Lubricate and install the differential side gear assemblies in the differential case.
Material : Gear/Transmission Fluid - SAE 75W-85 (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

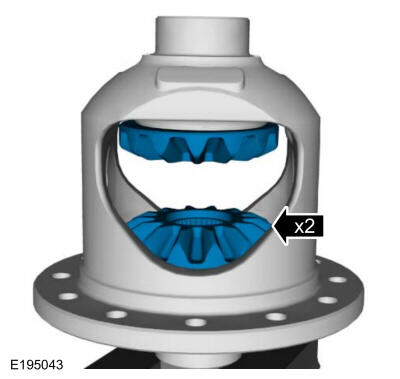

NOTE: Hold the differential side gear assembly in place to prevent it from falling out of the differential case.

Position the differential side gear assembly in the differential carrier.

Courtesy of FORD MOTOR COMPANY

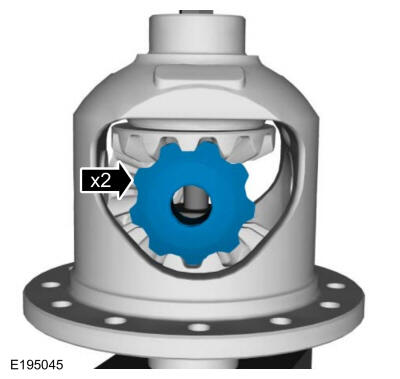

NOTE: Lubricate both sides of the differential pinion gear thrust washers with axle lubricant.

NOTE: Make sure the differential pinion gears are 180 degrees apart so they will align correctly with the pinion shaft bore.

Position the differential pinion gears and differential pinion gear thrust washers in the window of the differential case so they mesh with the differential side gear teeth.

Material : Gear/Transmission Fluid - 75W85 (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

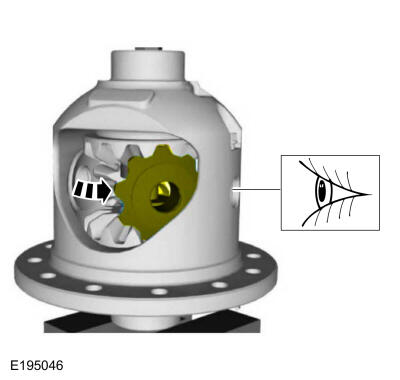

Rotate the differential pinion gears to align the differential pinion shaft bore.

Courtesy of FORD MOTOR COMPANY

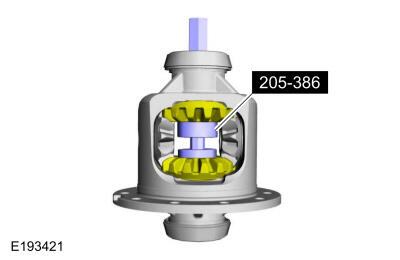

NOTE: It will probably be necessary to loosen or tighten the forcing screw to allow the differential pinion gears and differential side gears to rotate.

Using the special tool, rotate the differential pinion gears to align with the differential pinion shaft bore and remove the special tool. Use Special Service Tool: 205-386 (T97T-4205-D) Gauge, Differential (Traction Lock).

Courtesy of FORD MOTOR COMPANY

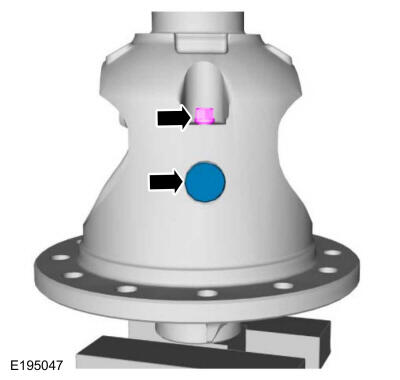

NOTE: If a new differential pinion shaft lock bolt is unavailable, coat the threads of the original differential pinion shaft bolt with thread lock prior to installation.

Insert the differential pinion shaft, and install a new differential pinion shaft lock bolt.

Material : Thread Locking Adhesive (WSK-M2G351-A6)

Torque : 34 Nm

Courtesy of FORD MOTOR COMPANY

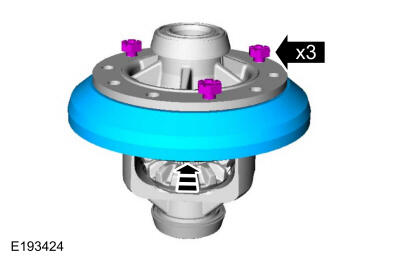

Install the ring gear onto the differential carrier. Align the ring gear using 3 new bolts. Using the general equipment: press the ring gear into place. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

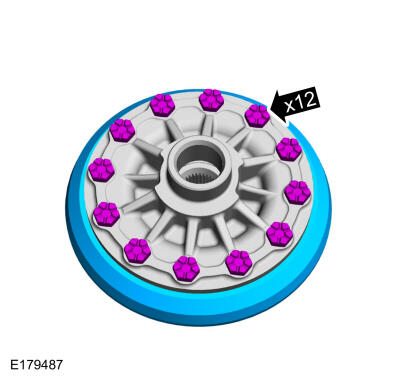

NOTE: Tighten the ring gear bolts in a cross pattern.

Install the remaining new ring gear bolts.

Torque : Stage 1: 60 Nm Stage 2: 90deg.

Courtesy of FORD MOTOR COMPANY

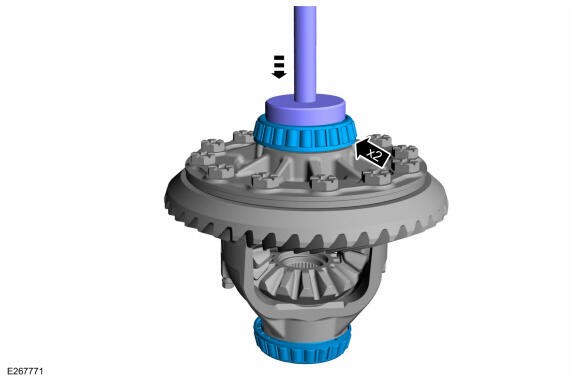

Using the general equipment, install the new differential bearings. Use Special Service Tool: 205-D044 (D81T-4221-A) Installer, Differential Carrier Bearing.

Courtesy of FORD MOTOR COMPANY
Install the differential carrier. Refer to: Differential Carrier
