Transfer Case Input Shaft Seal: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

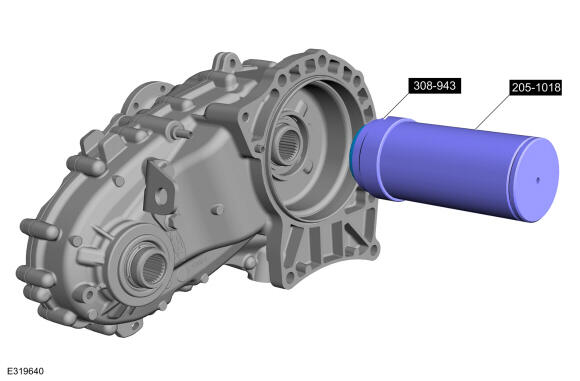

  1. NOTE: Apply petroleum jelly to the outer circumference of the oil seal.

    Use Special Service Tool: 205-1018 Installation Tube., 308-943 Installer, Input Seal.

    GFD839889Courtesy of FORD MOTOR COMPANY
  2. Install the transfer case. Refer to: Transfer Case .
