Transfer Case - Overview
Transfer case
The Transfer Case is a gearbox that attaches to the output shaft of the transmission through a splined input at the transfer case. Torque from the transmission is transferred to the rear driveshaft through the transfer case mainshaft. When torque to the front driveshaft is required it is transferred through a multi plate wet clutch and chain drive arrangement to the front output shaft of the transfer case.

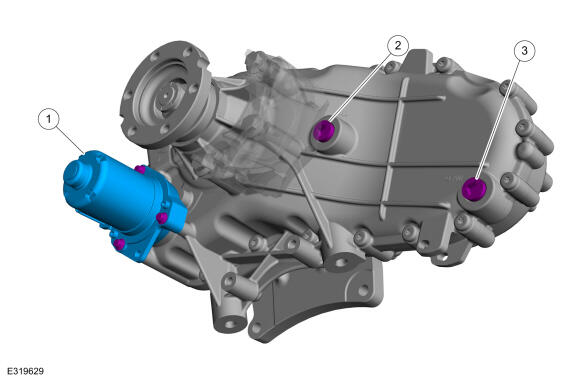

Transfer case components
| Item | Description |
|---|---|
| 1 | Transfer case clutch actuator |
| 2 | Fill plug |
| 3 | Drain plug |

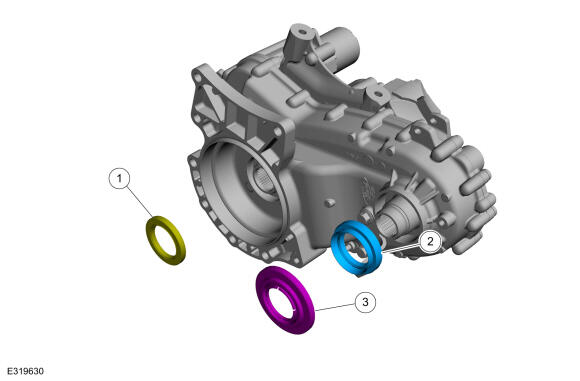

Transfer case components
| Item | Description |
|---|---|
| 1 | Transfer case input shaft seal |
| 2 | Transfer case oil seal |
| 3 | Dust cover |

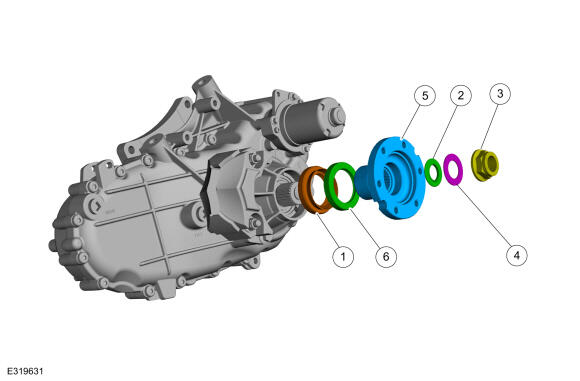

Output Shaft internal components
| Item | Description |
|---|---|
| 1 | Output shaft seal |
| 2 | Ring seal |
| 3 | Flange lock nut |
| 4 | Spacer |
| 5 | Output shaft flange |
| 6 | Dust cover |
