Rear Driveshaft: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When installing a driveshaft, it is important to ensure that the driveshaft center bearing supports are hand tightened to the body bracket prior to the transmission and axle flange being torqued to specification. For 2, 3 and 4 piece shafts, the previously mentioned process ensures that the center bearing isolator is not under excessive axial tension, twisted which can cause center bearing isolator to rub on Yoke and/or cause driveline moan. If moan occurs after driveshaft is installed loosen center bearing bolts and re-align center bearing by hand to ensure bearing is not twisted and bound.

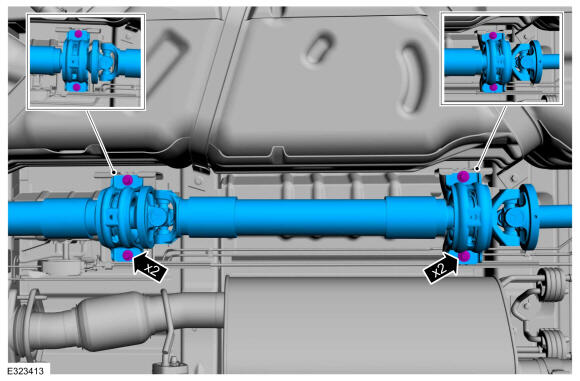

Long wheel base

NOTE: The driveshaft is long and heavy with multiple U-joints. Do not over articulate the driveshaft or damage may occur.

NOTE: This step requires the aid of another technician.

NOTE: Only tighten the bolts finger tight at this stage.

Install the driveshaft and the new driveshaft center bearing bolts.

Courtesy of FORD MOTOR COMPANY

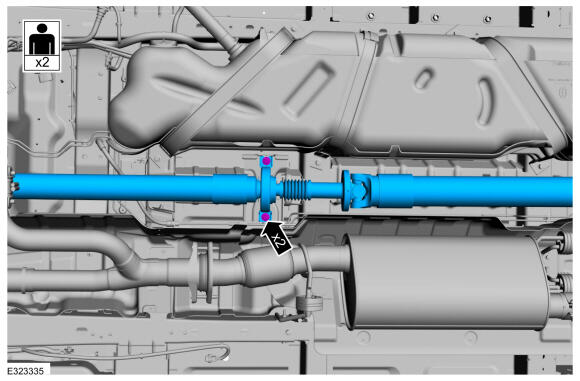

Medium wheel base
NOTE: The driveshaft is long and heavy with multiple U-joints. Do not over articulate the driveshaft or damage may occur.

NOTE: This step requires the aid of another technician.

NOTE: Only tighten the bolts finger tight at this stage.

Install the driveshaft and the new driveshaft center bearing bolts.

Courtesy of FORD MOTOR COMPANY

All vehicles

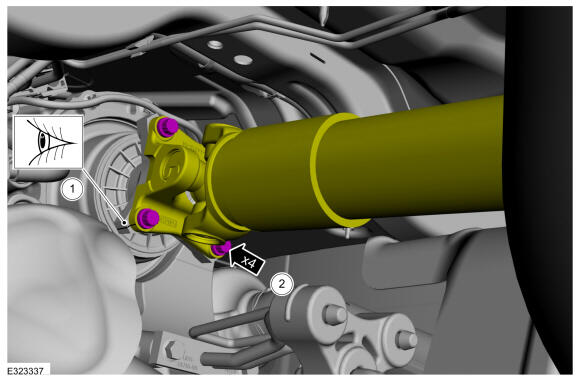

If equipped.
1. Align the index-mark on the driveshaft and transmission flange
2. Install the new driveshaft to the transmission flange bolts.
  Torque: 103 Nm
Courtesy of FORD MOTOR COMPANY

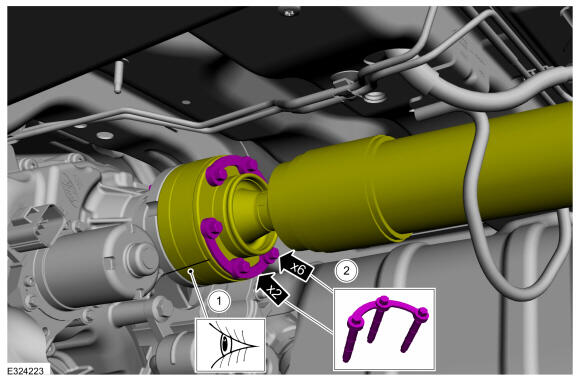

If equipped.
1. Align the index-mark on the driveshaft CV -joint and transfer case flange
2. Install the new driveshaft CV -joint to the transfer case flange bolts and the retaining straps.
  Torque: 70 Nm
Courtesy of FORD MOTOR COMPANY

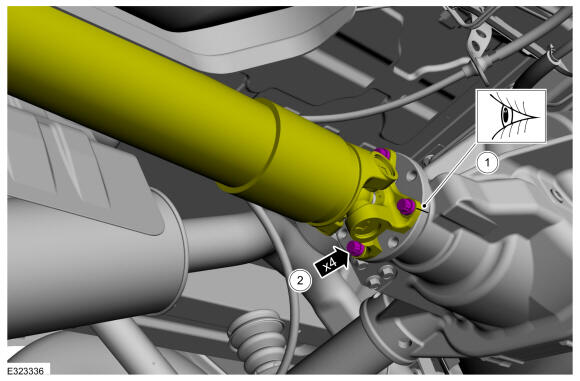

1. Align the index-mark on the driveshaft and rear drive pinion flange.
2. Install the new driveshaft to the rear drive pinion flange bolts.
  Torque: 103 Nm
Courtesy of FORD MOTOR COMPANY

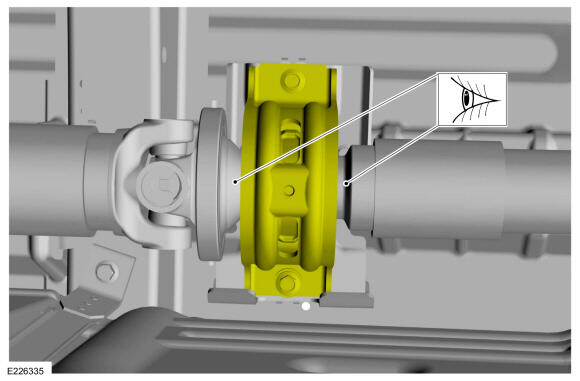

Check all center bearings alignment for bind, twist or rub.

Courtesy of FORD MOTOR COMPANY

Long wheel base
Tighten the new driveshaft center bearing bolts.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY

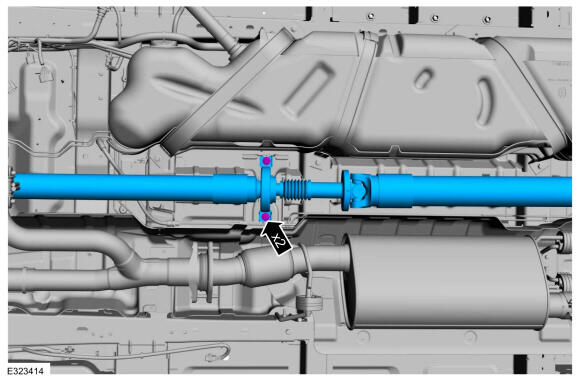

Medium wheel base
Tighten the new driveshaft center bearing bolts.
Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY

All vehicles

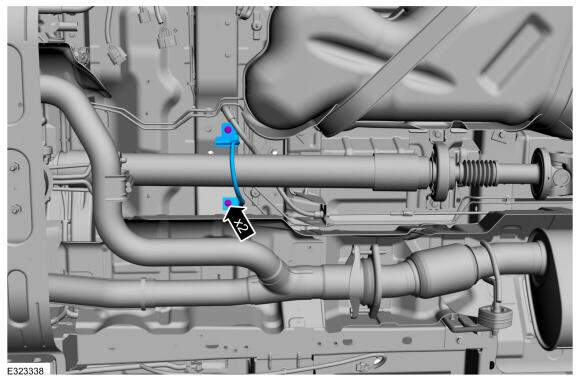

If equipped. Install the driveshaft safety strap and install new safety strap bolts.
Torque: 25 Nm

Courtesy of FORD MOTOR COMPANY
