Driveshaft Universal Joint: Disassembly
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not, under any circumstance, clamp the driveshaft assembly in the jaws of a vise or similar holding fixture. Denting or localized fracturing may result, causing driveshaft failure during vehicle operation.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the driveshaft. Refer to: Driveshaft .
-
NOTE: If the components are not marked and therefore installed incorrectly, driveshaft imbalance can occur.

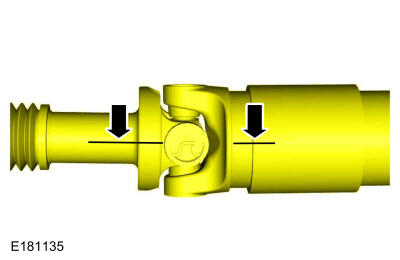

Index-mark the driveshaft for reassembly.

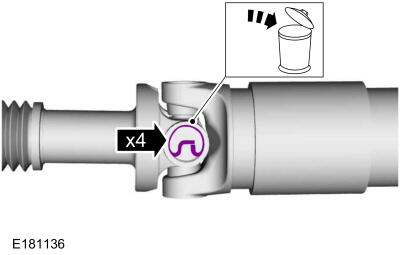

- Remove and discard the 4 snap rings.
-
NOTE: Driveshaft slip yoke shown. All other driveshaft yokes similar.

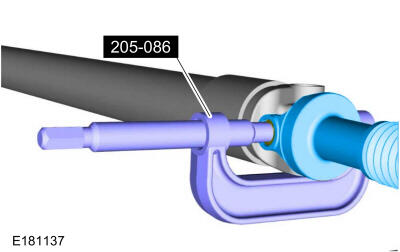

Using the special tool, press the u-joint bearing cups out of the driveshaft yoke and remove the driveshaft yoke. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

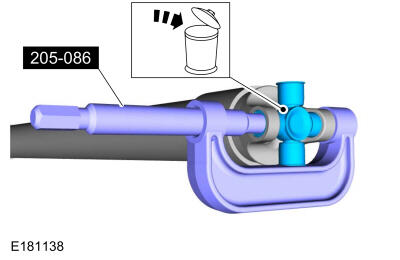

- Using the special tool, press the u-joint bearing cups out of the driveshaft yoke and remove the u-joint. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

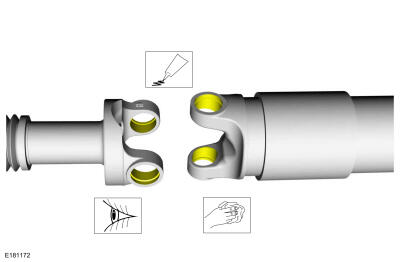

- Clean and inspect the u-joint bearing cup surfaces.
Material: Grease (ESA-M1C75-B)
