Driveshaft Universal Joint: Assembly

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Install the u-joint kits as complete assemblies only. Do not mix components from other u-joint kits.
  1. To install, reverse the removal procedure.

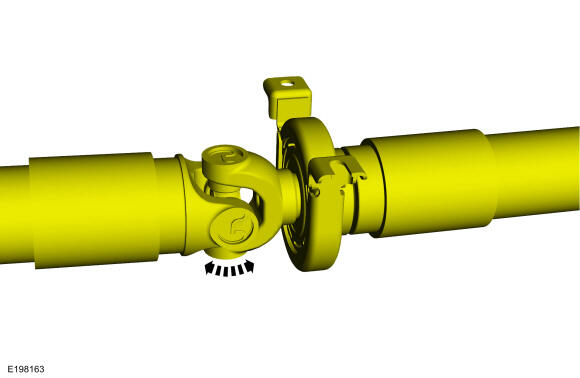

  2. After Assembly, rotate the driveshaft yoke to make sure the u-joints are free to rotate easily, without binding, before installing the driveshaft.
GFD836728Courtesy of FORD MOTOR COMPANY
