Wheel Studs: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub
-
NOTE: Single Rear Wheel (SRW) front wheel bearing and wheel hub shown. Dual Rear Wheel (DRW) similar.

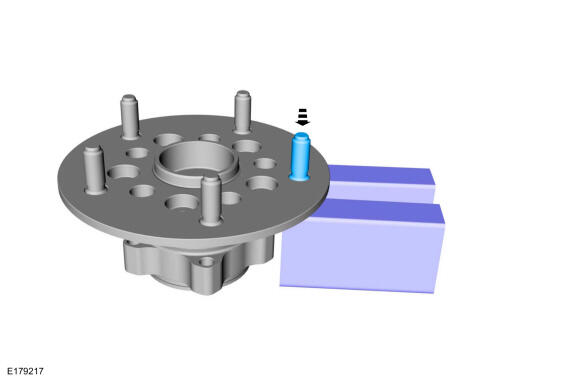

Support the front wheel bearing and wheel hub using wooden blocks and remove the wheel stud using a hydraulic press.Use the General Equipment: Wooden BlockUse the General Equipment: Hydraulic Press

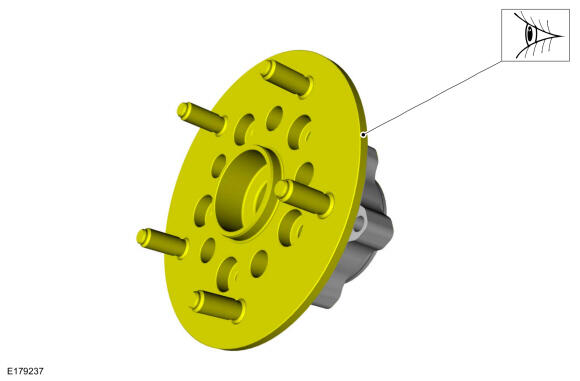

- Inspect the front wheel bearing and wheel hub for damage and/or corrosion.
