Wheel Studs: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

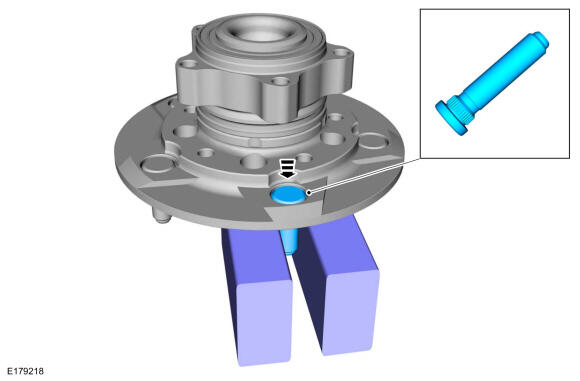

  1. Support the front wheel bearing and wheel hub using wooden blocks and install the wheel stud using a hydraulic press.Use the General Equipment: Wooden BlockUse the General Equipment: Hydraulic Press
    GFD836526Courtesy of FORD MOTOR COMPANY
  2. Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub
