Lower Arm: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Remove the wheels and tires. Refer to: Wheel and Tire . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
- Remove and discard the lower ball joint nut.
-
NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.
Separate the lower control arm from the lower ball joint.Use the General Equipment: Two Leg Puller
-
NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.
Separate the lower control arm from the lower ball joint.Use the General Equipment: Lower Arm Down Force Lever
- Remove the front lower air deflector.

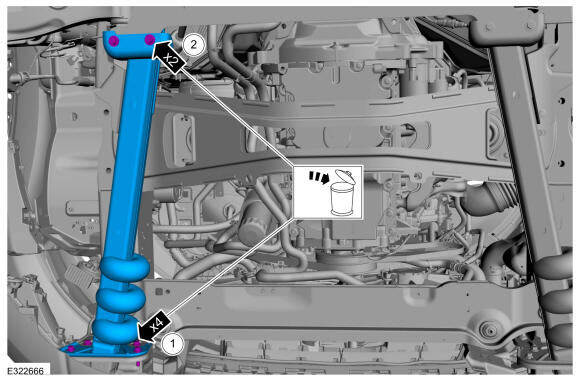

- Remove and discard the lower load path bar retainers and remove the lower load path bar.

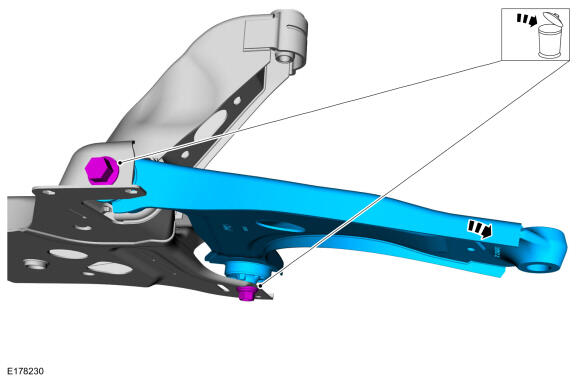

- Remove and discard the 2 lower control arm bolts.
