Front Wheel Bearing and Wheel Hub: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: SRW (single rear wheel) graphics shown, vehicles with DRW (dual rear wheels) and SRW (single rear wheel) Jumbo similar.
  1. If equipped.Remove the wheel center cap.
    GFD836544Courtesy of FORD MOTOR COMPANY
  2. Loosen the wheel hub nut.
    GFD836545Courtesy of FORD MOTOR COMPANY
  3. Remove the wheels and tires. Refer to: Wheel and Tire . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
  4. NOTE: This step requires the aid of another technician.

    While an assistant applies the brake, remove and discard the wheel hub nut.

    GFD836546Courtesy of FORD MOTOR COMPANY
  5. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove and discard the 2 brake caliper anchor plate bolts and position aside the brake caliper and anchor plate assembly.

    GFD836547Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the lower ball joint nut.
    GFD836498Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    Separate the lower control arm from the lower ball joint.Use the General Equipment: Two Leg Puller

    GFD836499Courtesy of FORD MOTOR COMPANY
  8. NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    Separate the lower control arm from the lower ball joint.Use the General Equipment: Lower Arm Down Force Lever

    GFD836500Courtesy of FORD MOTOR COMPANY
  9. NOTE: This step is only necessary when installing a new component to the left-hand side.

    Rotate the steering wheel fully to the RH side.

    GFD836548Courtesy of FORD MOTOR COMPANY
  10. NOTE: This step is only necessary when installing a new component to the right-hand side.

    Rotate the steering wheel fully to the LH side.

    GFD836549Courtesy of FORD MOTOR COMPANY
  11. Using a 3-leg puller, separate the wheel hub and brake disc assembly from the halfshaft. Support the halfshaft.Use the General Equipment: Three Leg Puller
    GFD836550Courtesy of FORD MOTOR COMPANY

    Vehicles with single rear wheels

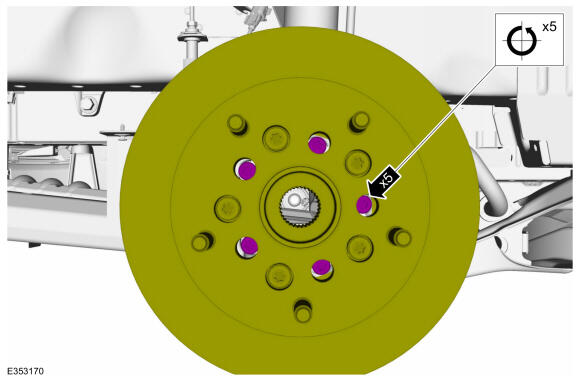

  12. Loosen the wheel hub and brake disc assembly mounting bolts by 5 turns.
    GFD836551Courtesy of FORD MOTOR COMPANY

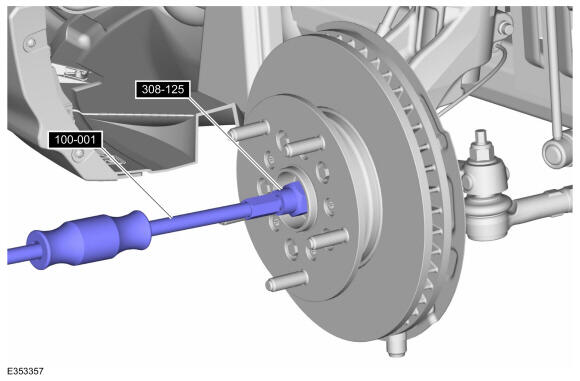

  13. Install the special tools.Install Suggested Tool: 100-001 (T50T-100-A) Slide Hammer. Tool shown or a commercially available equivalent can be used., 308-125 Remover, Transfer Case Bearing. Tool shown or a commercially available equivalent can be used.
    GFD836552Courtesy of FORD MOTOR COMPANY

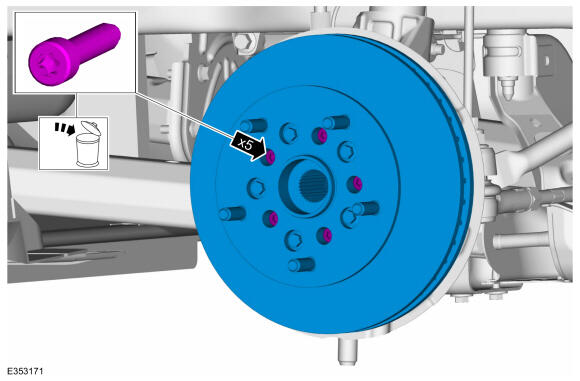

  14. Remove and discard the wheel hub and brake disc assembly mounting bolts and remove the assembly.
    GFD836553Courtesy of FORD MOTOR COMPANY
  15. NOTE: Protect the brake disc with a soft cloth to prevent damage.

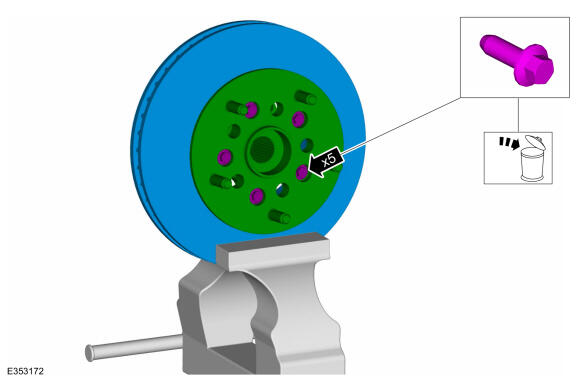

    Remove and discard the brake disc bolts and separate the brake disc from the wheel hub assembly.Use the General Equipment: Vise

    GFD836554Courtesy of FORD MOTOR COMPANY

    Vehicles with DRW and SRW Jumbo

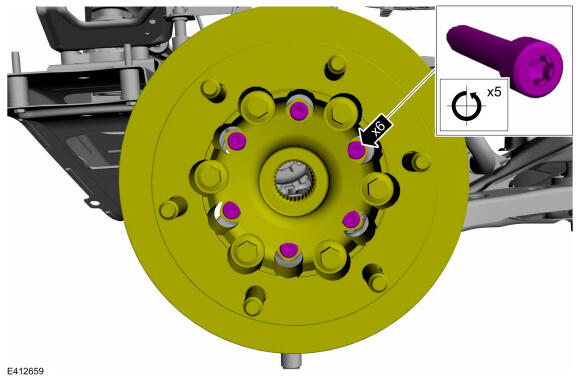

  16. Loosen the wheel hub and brake disc assembly mounting bolts by 5 turns.
    GFD836555Courtesy of FORD MOTOR COMPANY

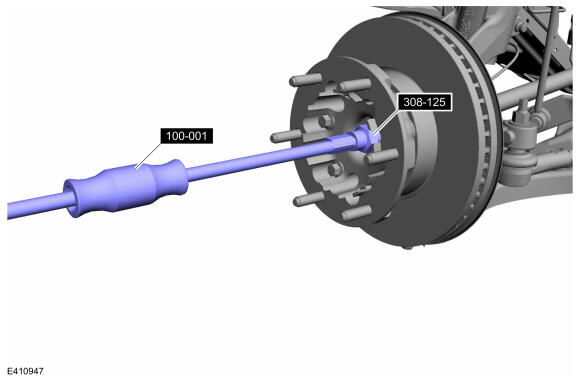

  17. Install the special tools.Install Suggested Tool: 100-001 (T50T-100-A) Slide Hammer. Tool shown or a commercially available equivalent can be used., 308-125 Remover, Transfer Case Bearing. Tool shown or a commercially available equivalent can be used.
    GFD836556Courtesy of FORD MOTOR COMPANY

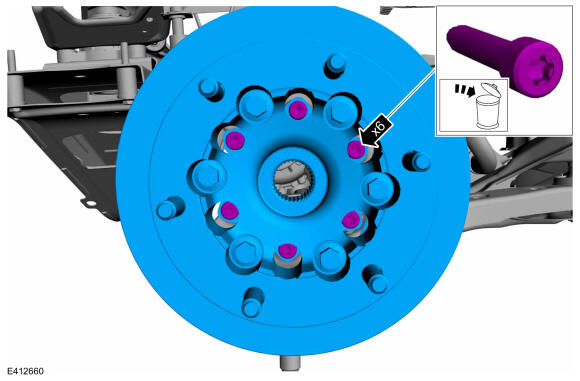

  18. Remove and discard the wheel hub and brake disc assembly mounting bolts and remove the assembly.
    GFD836557Courtesy of FORD MOTOR COMPANY
  19. NOTE: Protect the brake disc with a soft cloth to prevent damage.

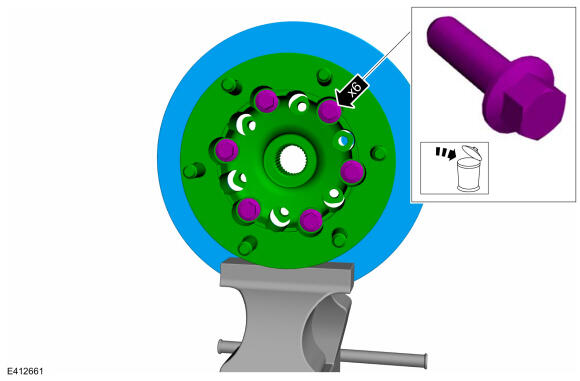

    Remove and discard the brake disc bolts and separate the brake disc from the wheel hub assembly.Use the General Equipment: Vise

GFD836558Courtesy of FORD MOTOR COMPANY
