Front Stabilizer Bar Link: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheels and tires. Refer to: Wheel and Tire . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

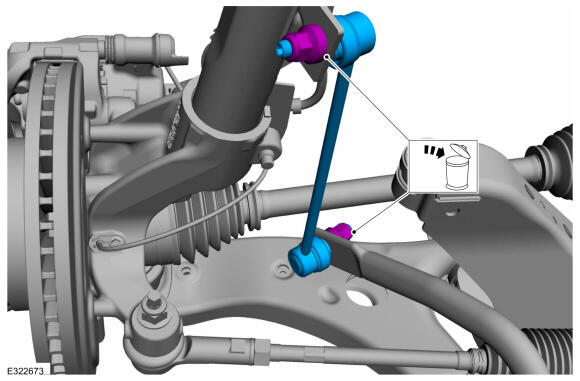

Remove and discard the 2 stabilizer bar link nuts and remove the stabilizer bar link.

Torque: 103 Nm

Courtesy of FORD MOTOR COMPANY
