Front Stabilizer Bar Bushing: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheels and tires. Refer to: Wheel and Tire . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .

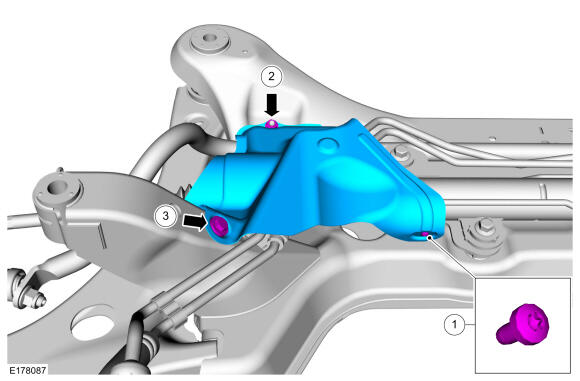

If equipped.Remove the 3 fasteners and remove the steering gear heat shield.
Torque: 1: 3 Nm 2: 20 Nm 3: 20 Nm

Courtesy of FORD MOTOR COMPANY

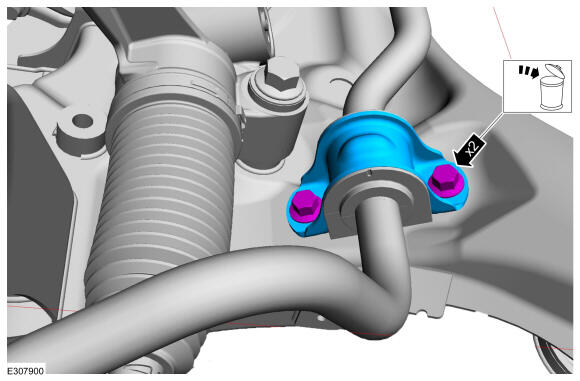

On both sides.Remove and discard the stabilizer bar bracket bolts.
Torque: 63 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use any lubrication on the stabilizer bar or the bushings or damage to the bushings may occur.

NOTE: Stabilizer bar bushings must be installed with slits facing the front of the vehicle.

NOTE: Note the position of the components before removal.

On both sides.Remove the front stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY
