Vehicle Dynamic Systems

Fig 1: No Caption

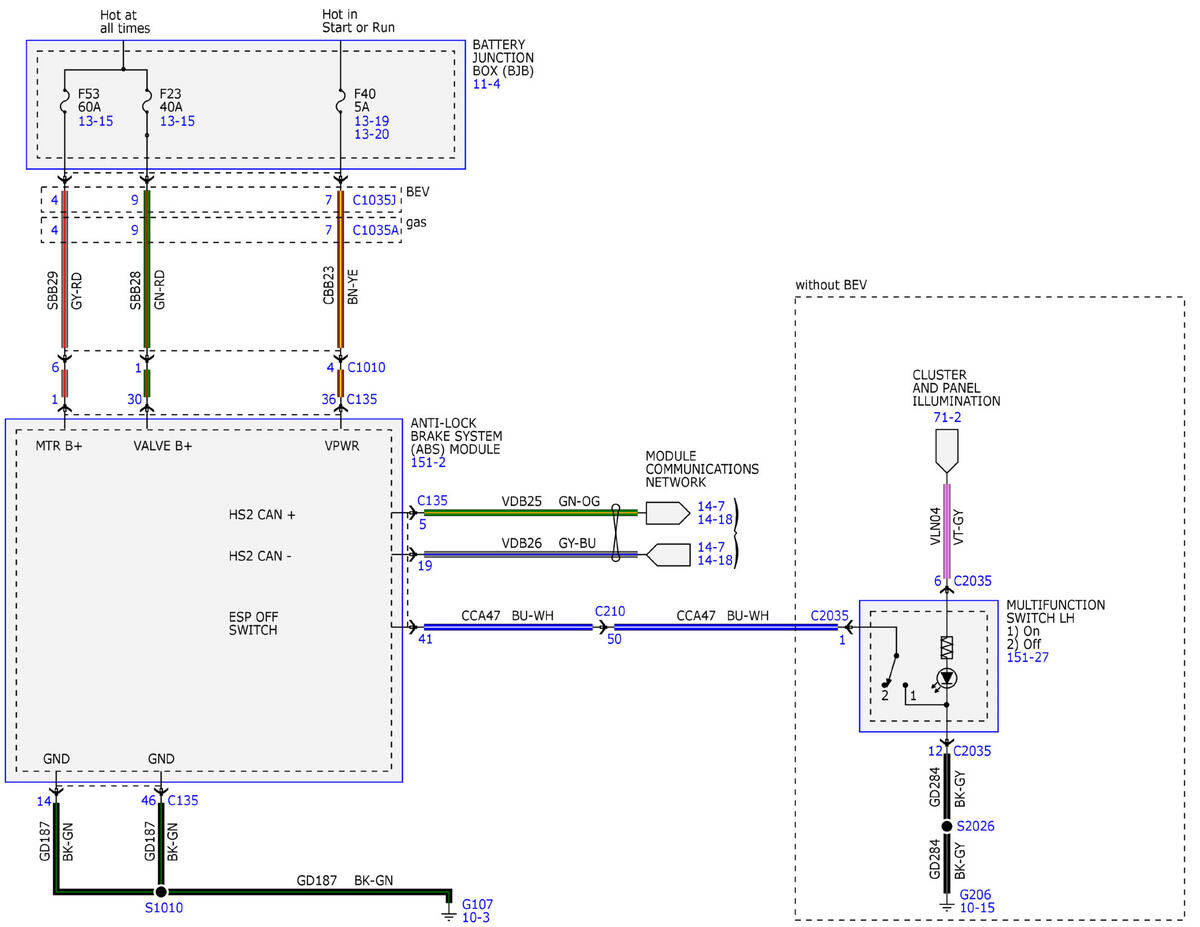

GFDWR239368Courtesy of FORD MOTOR COMPANY
Fig 2: No Caption

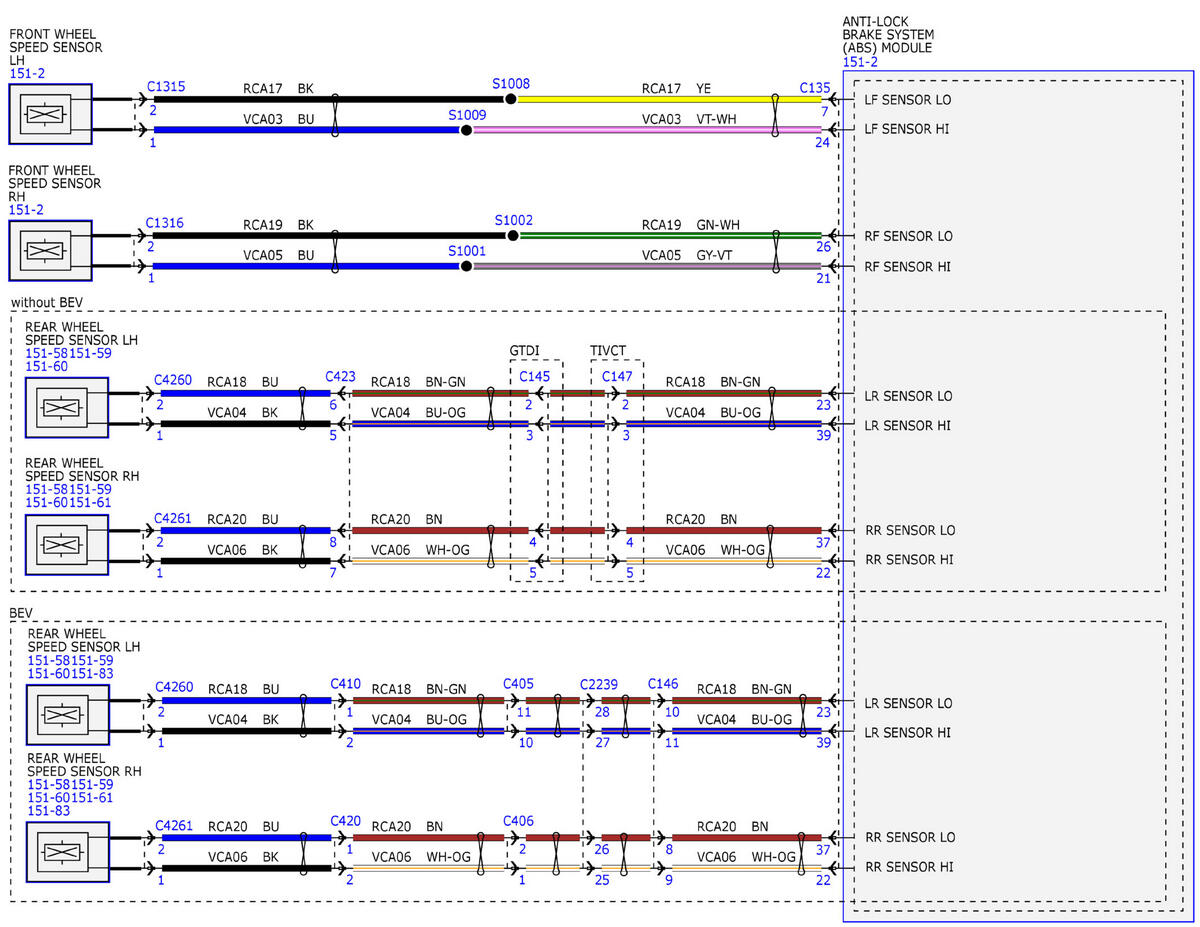

GFDWR239369Courtesy of FORD MOTOR COMPANY
Fig 3: No Caption

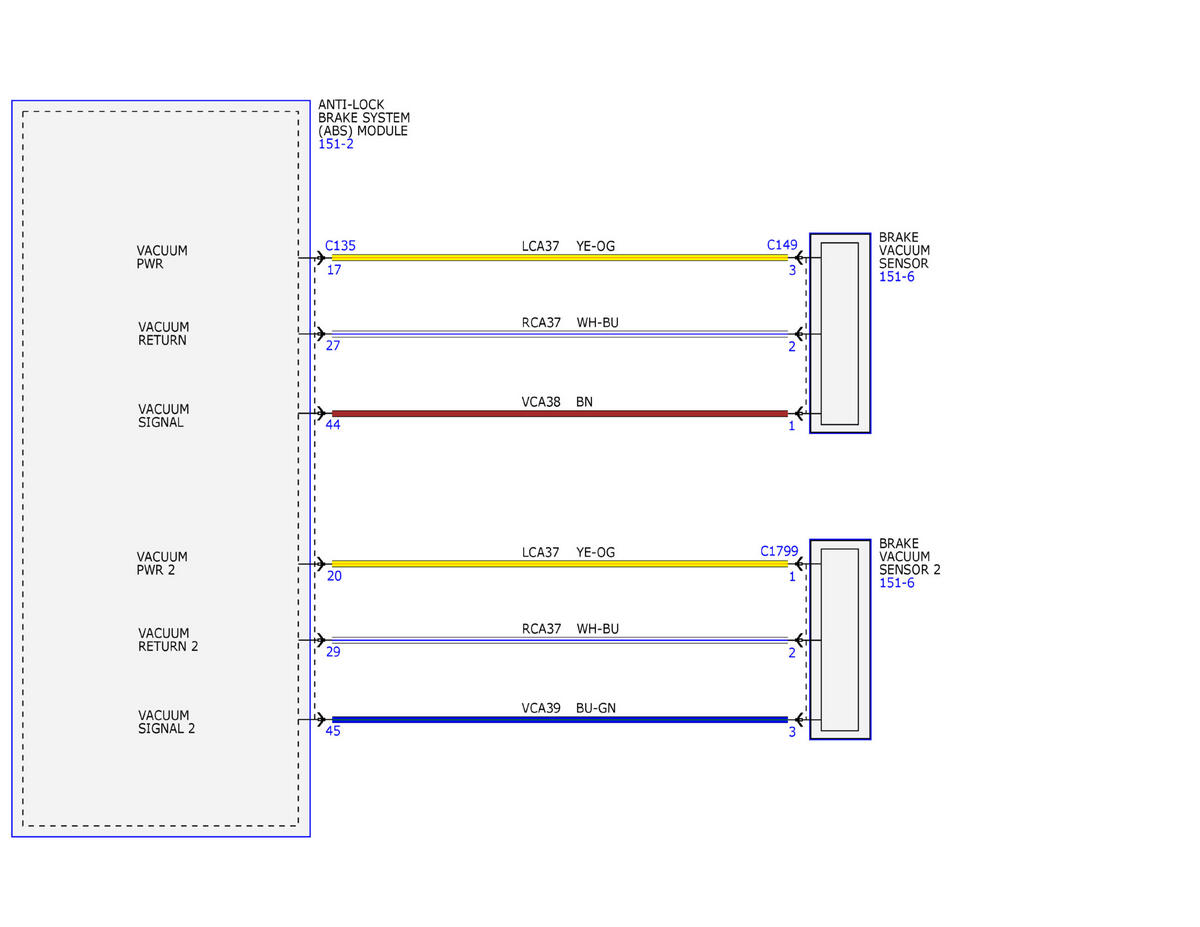

GFDWR239370Courtesy of FORD MOTOR COMPANY
Fig 4: No Caption

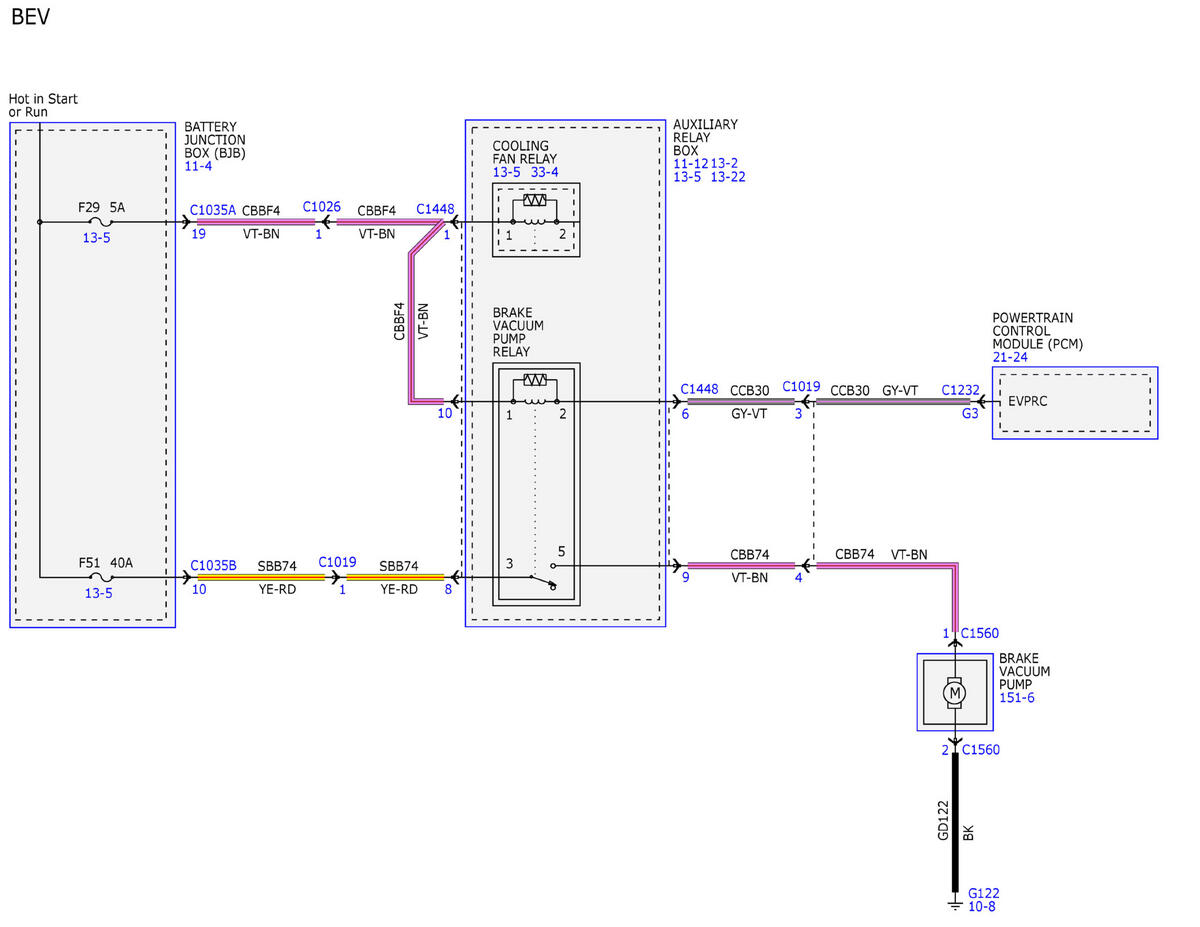

GFDWR239371Courtesy of FORD MOTOR COMPANY
Fig 5: No Caption

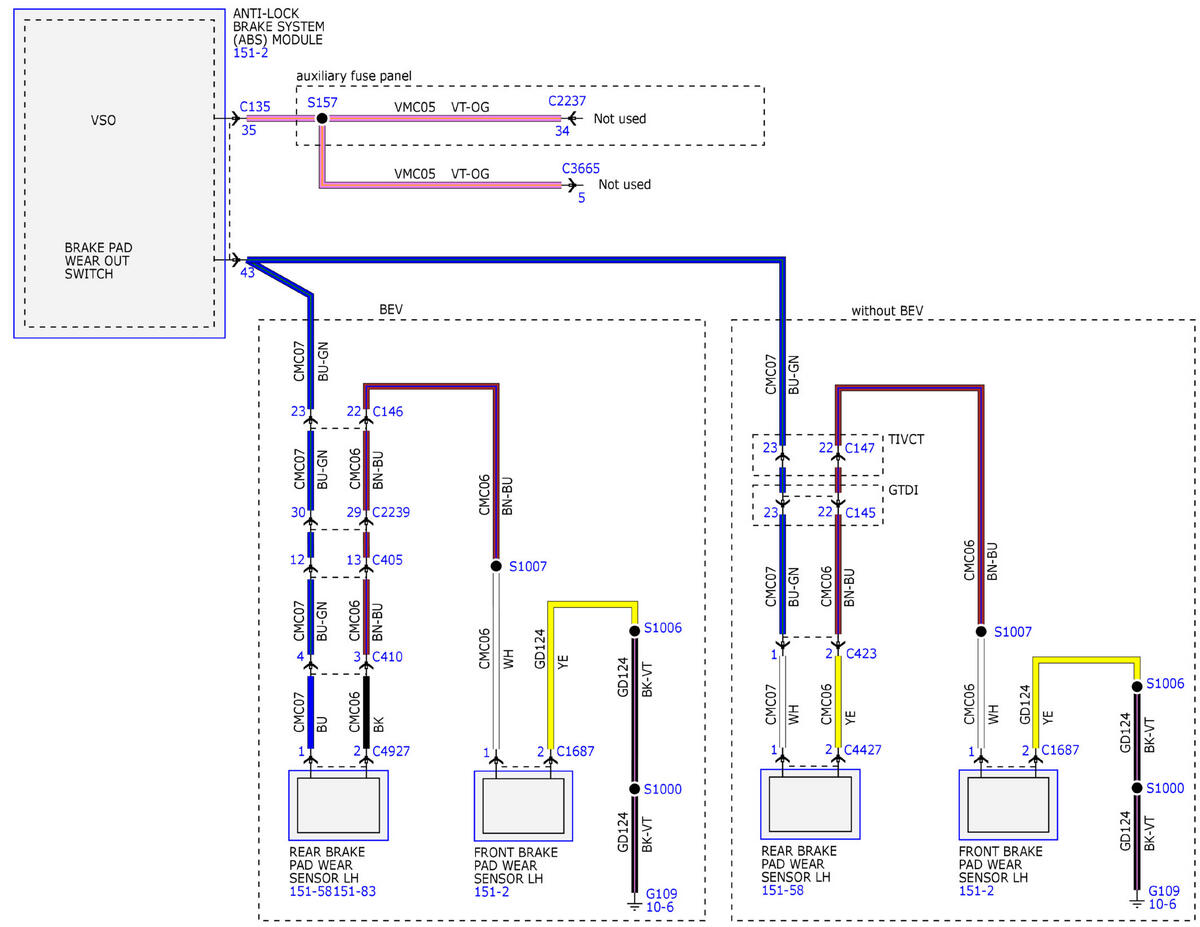

GFDWR239372Courtesy of FORD MOTOR COMPANY
Fig 6: No Caption

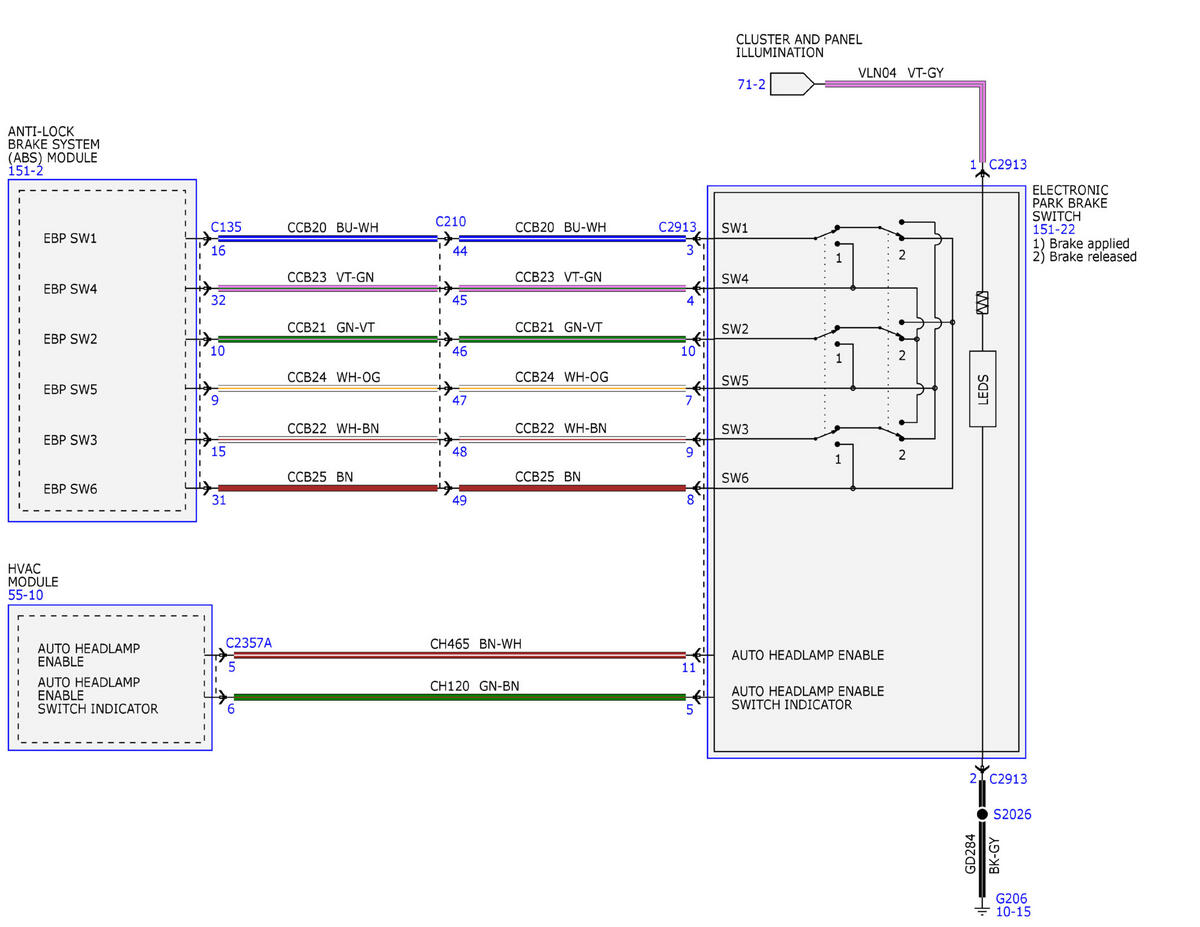

GFDWR239373Courtesy of FORD MOTOR COMPANY
Fig 7: No Caption

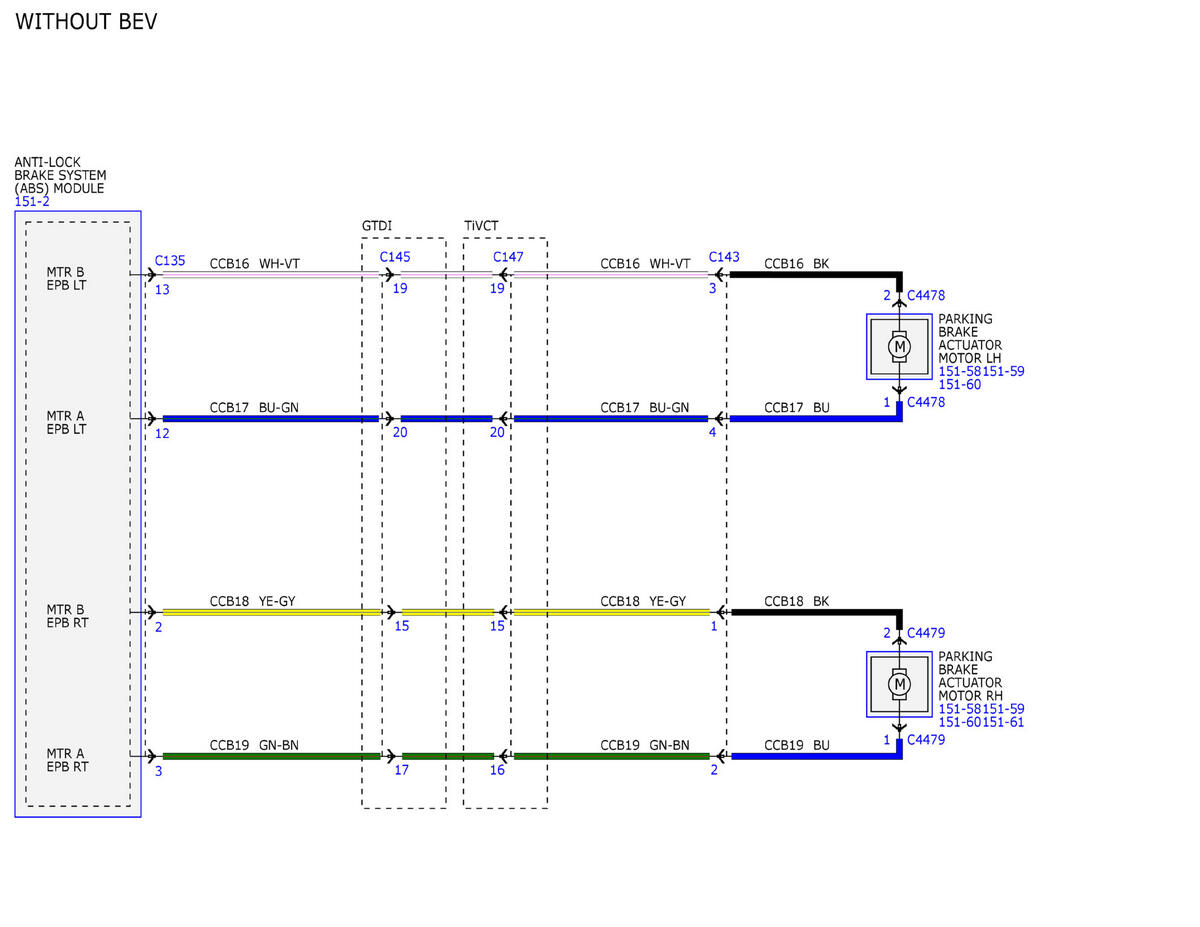

GFDWR239374Courtesy of FORD MOTOR COMPANY
Fig 8: No Caption

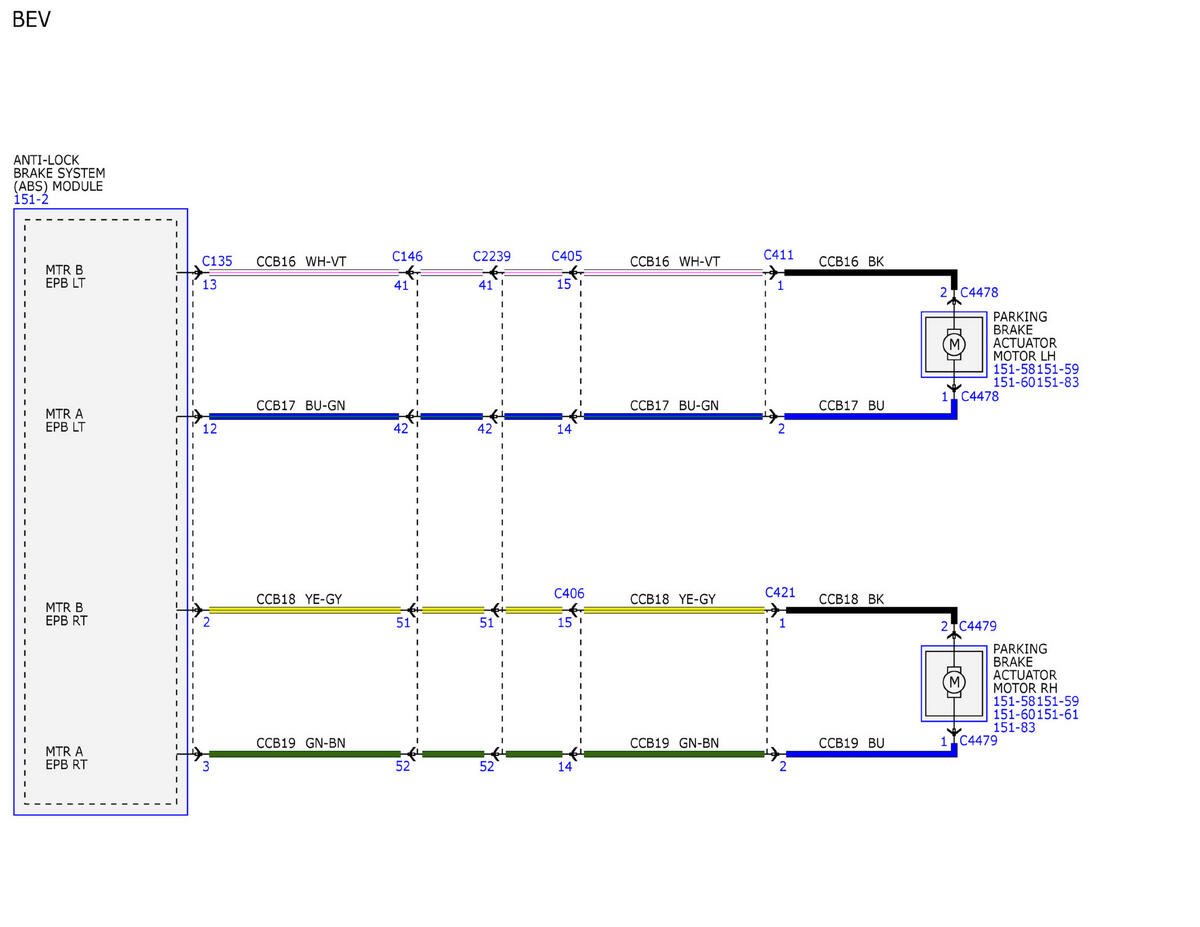

GFDWR239375Courtesy of FORD MOTOR COMPANY
