Electronic Engine Controls - 3.5L GTDI

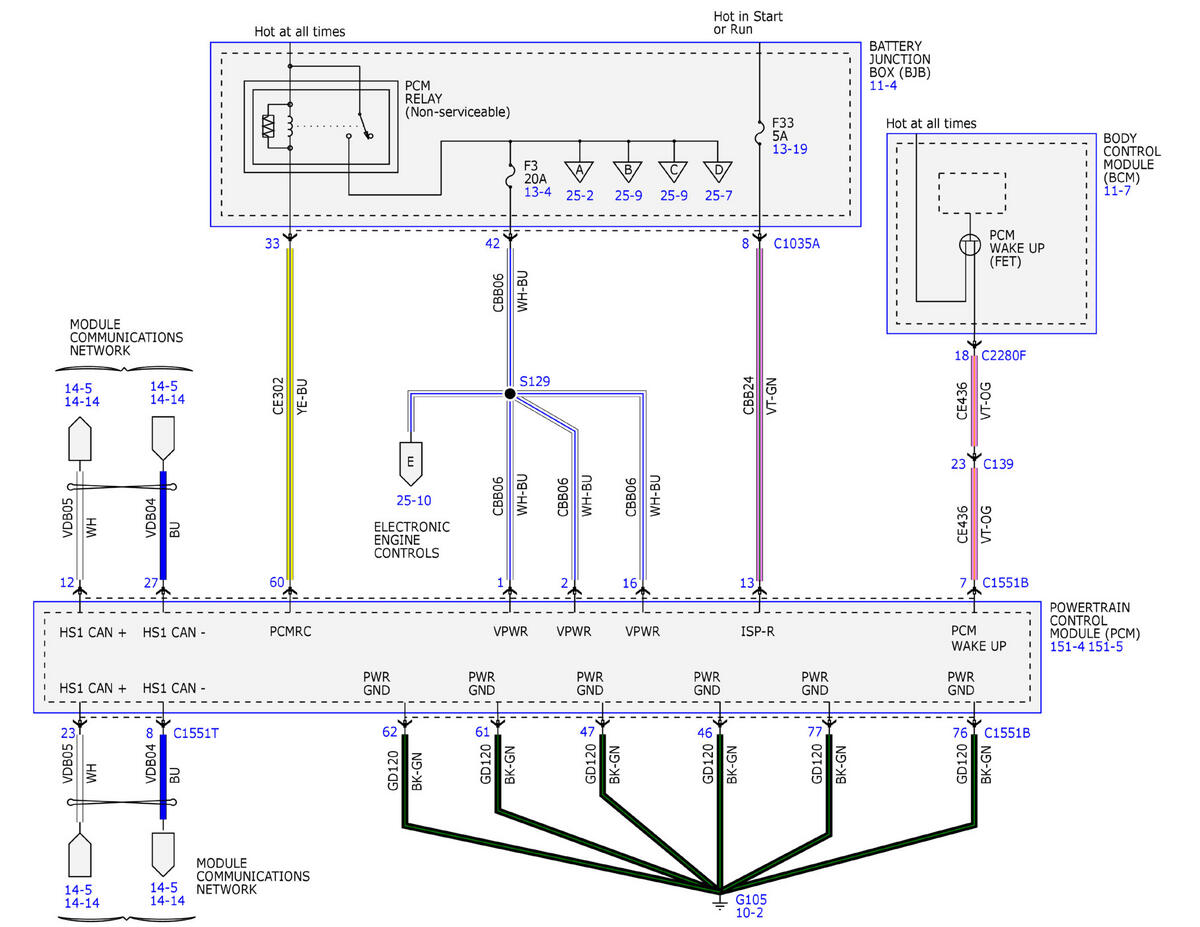

Fig 1: No Caption

GFDWR239031

Courtesy of FORD MOTOR COMPANY

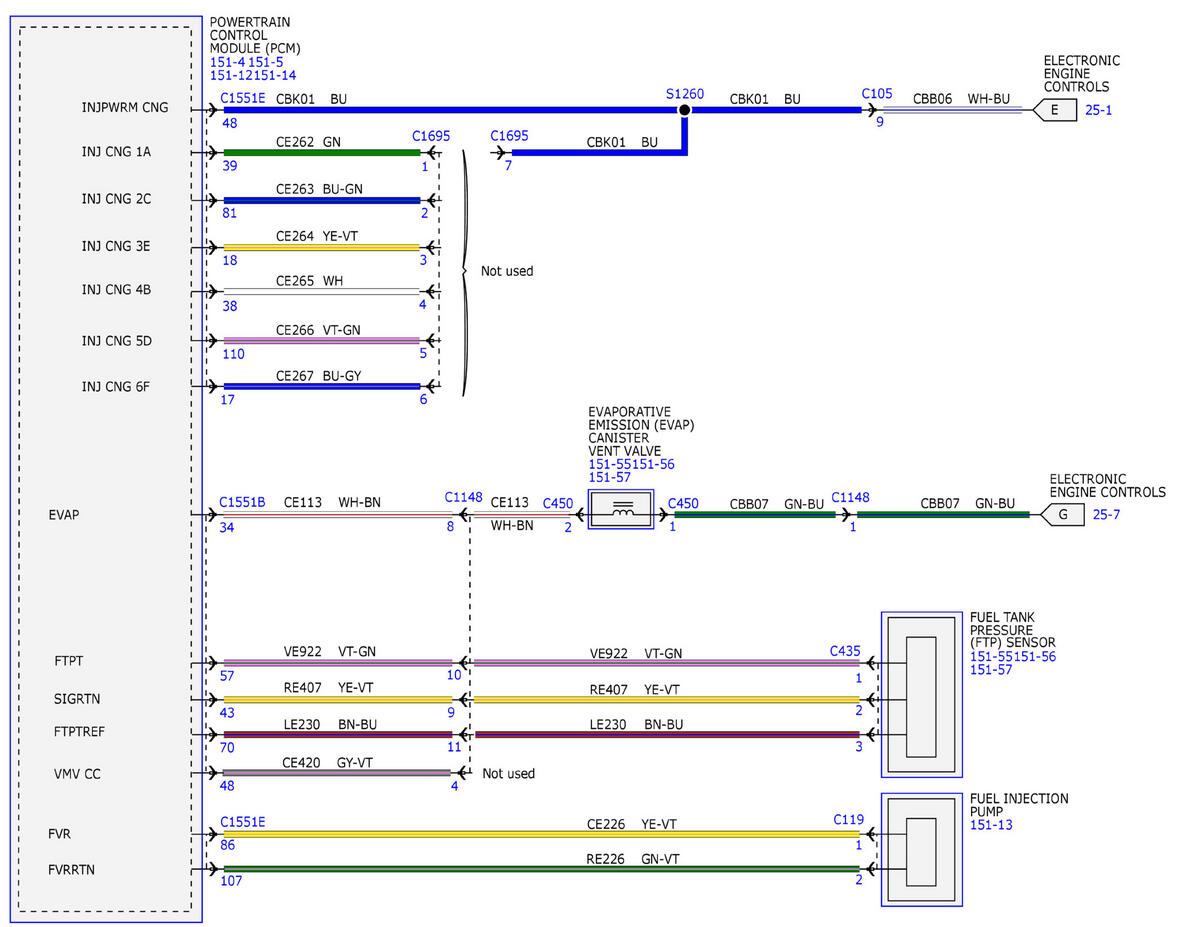

Fig 2: No Caption

GFDWR239032

Courtesy of FORD MOTOR COMPANY

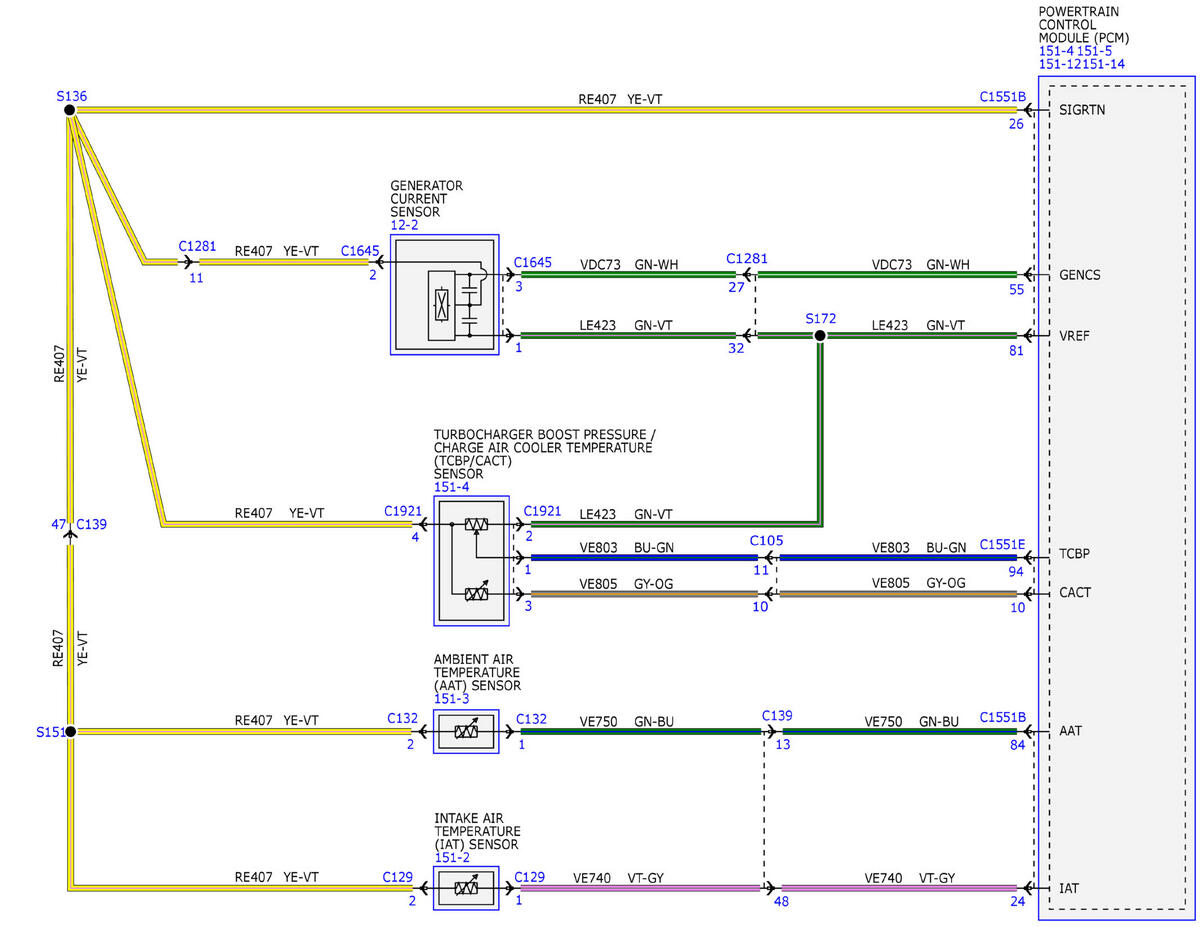

Fig 3: No Caption

GFDWR239033

Courtesy of FORD MOTOR COMPANY

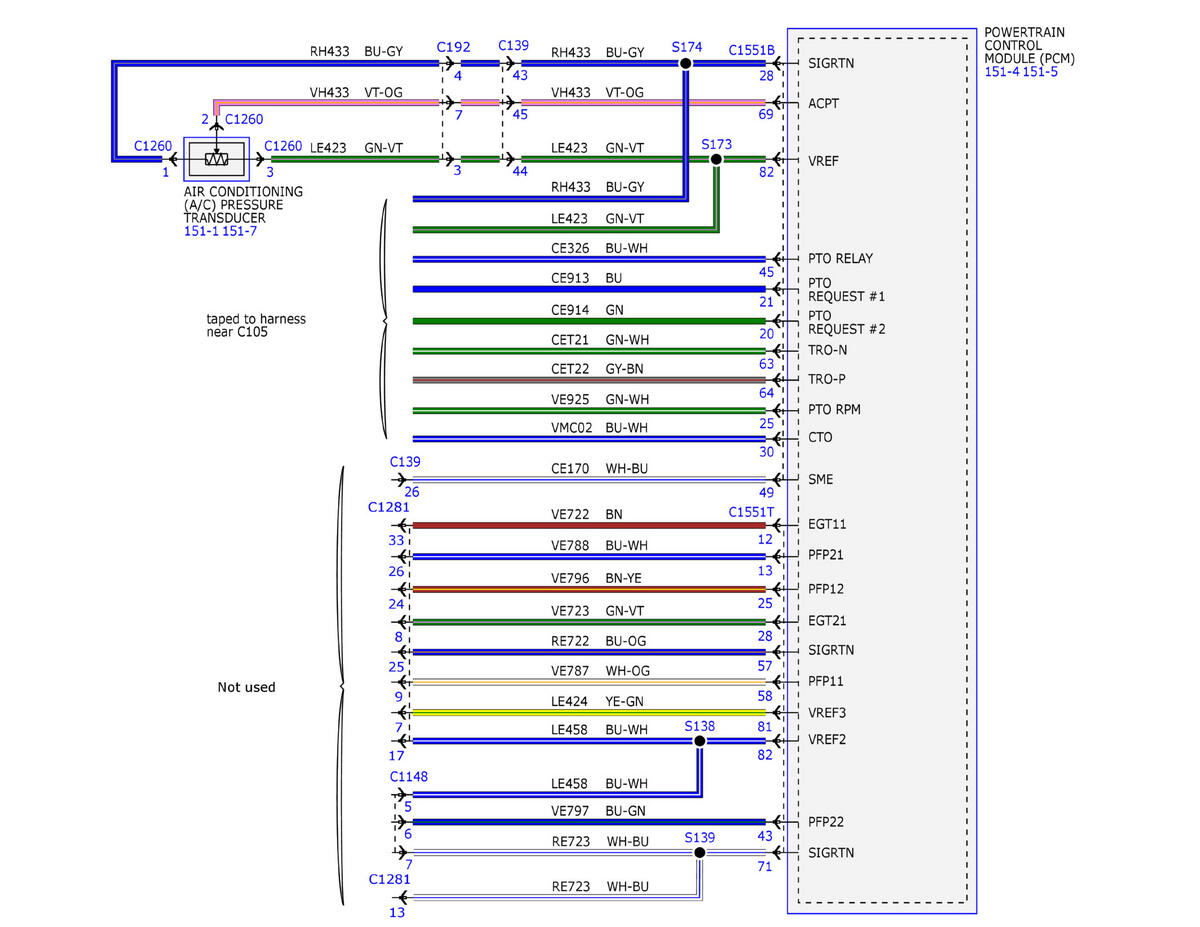

Fig 4: No Caption

GFDWR239034

Courtesy of FORD MOTOR COMPANY

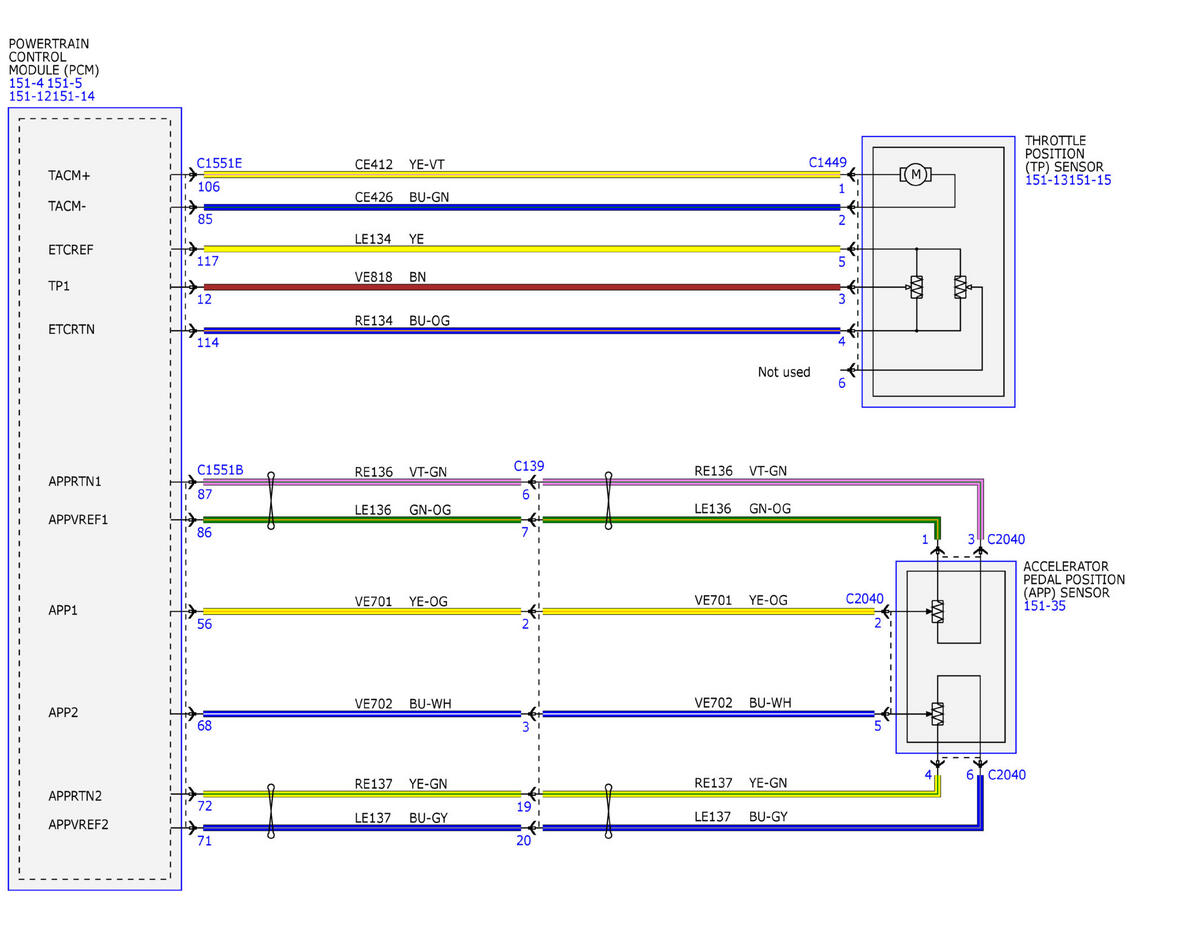

Fig 5: No Caption

GFDWR239035

Courtesy of FORD MOTOR COMPANY

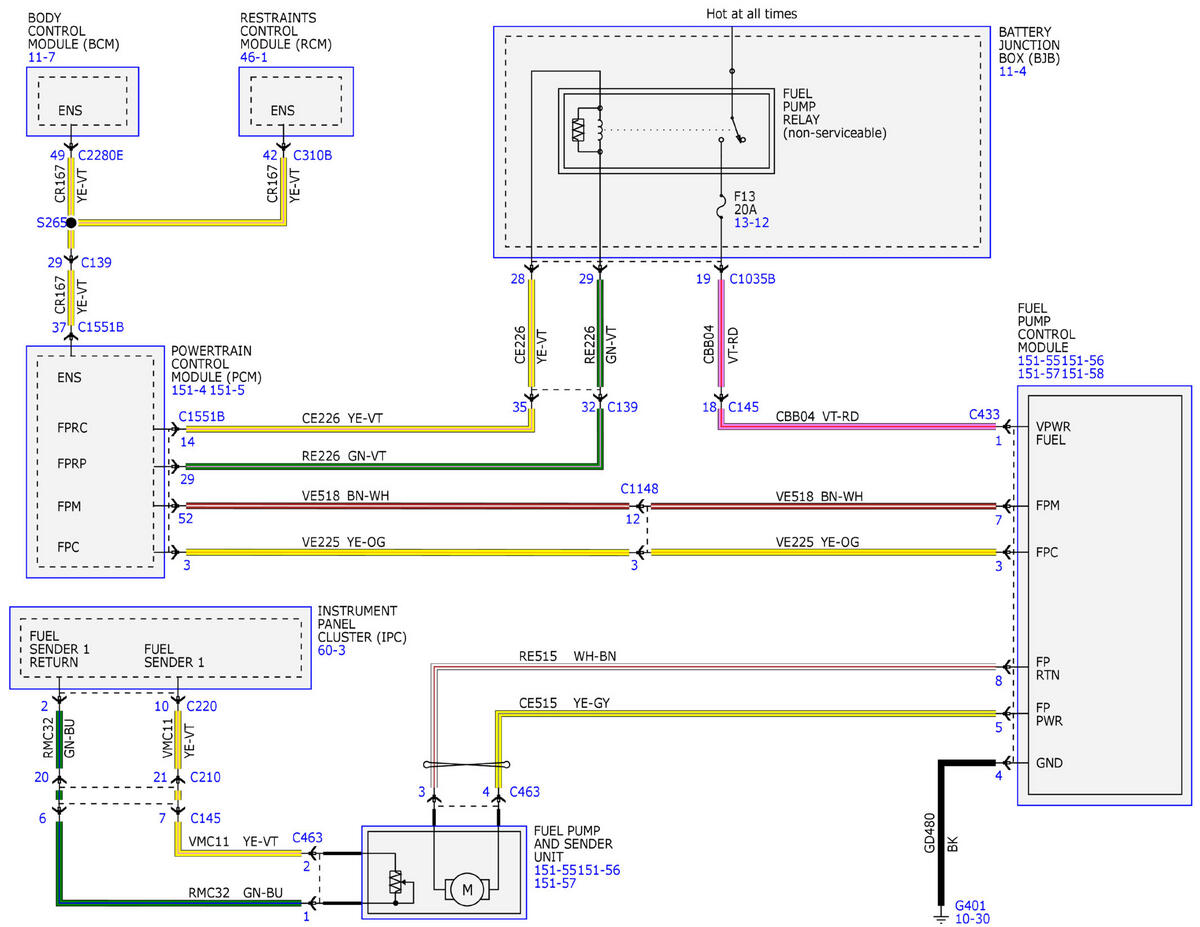

Fig 6: No Caption

GFDWR239036

Courtesy of FORD MOTOR COMPANY

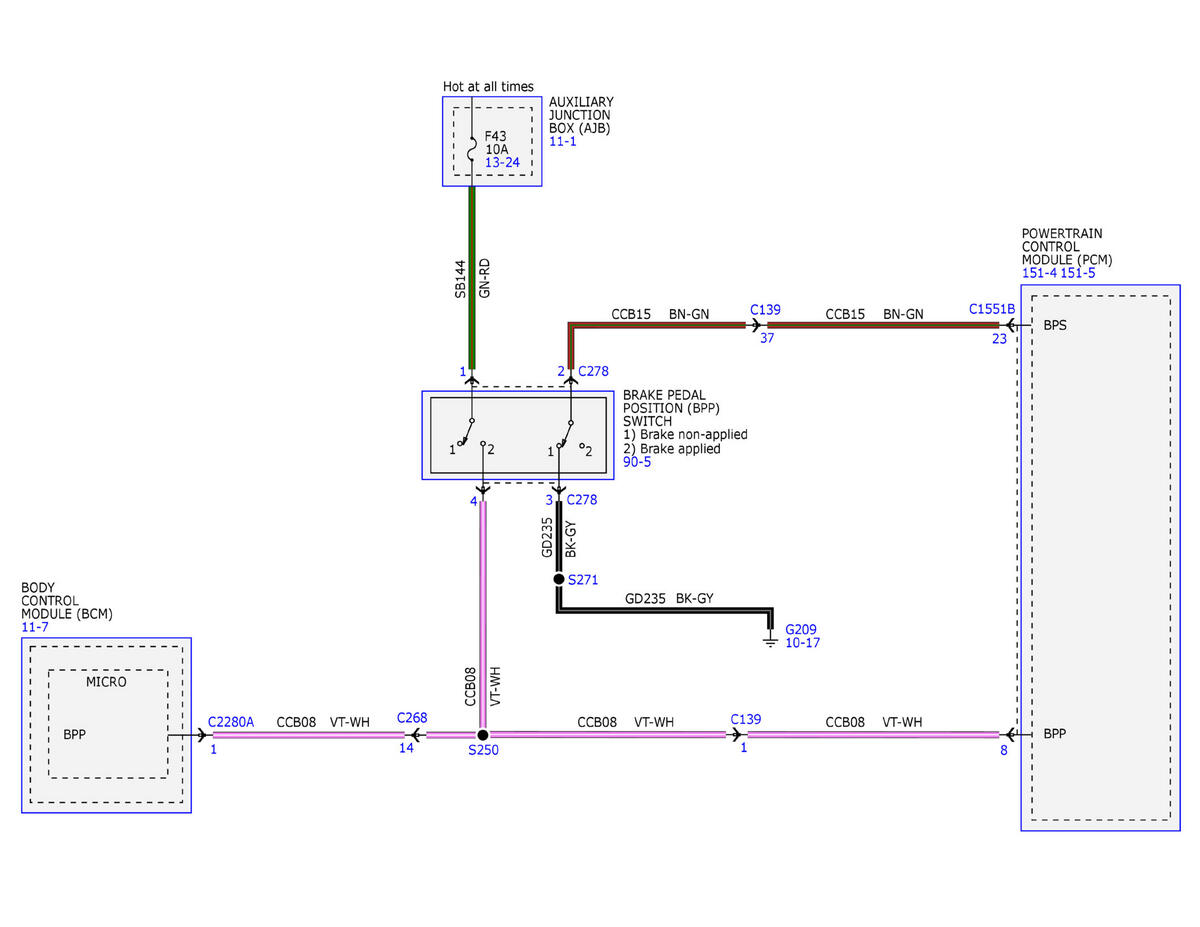

Fig 7: No Caption

GFDWR239037

Courtesy of FORD MOTOR COMPANY

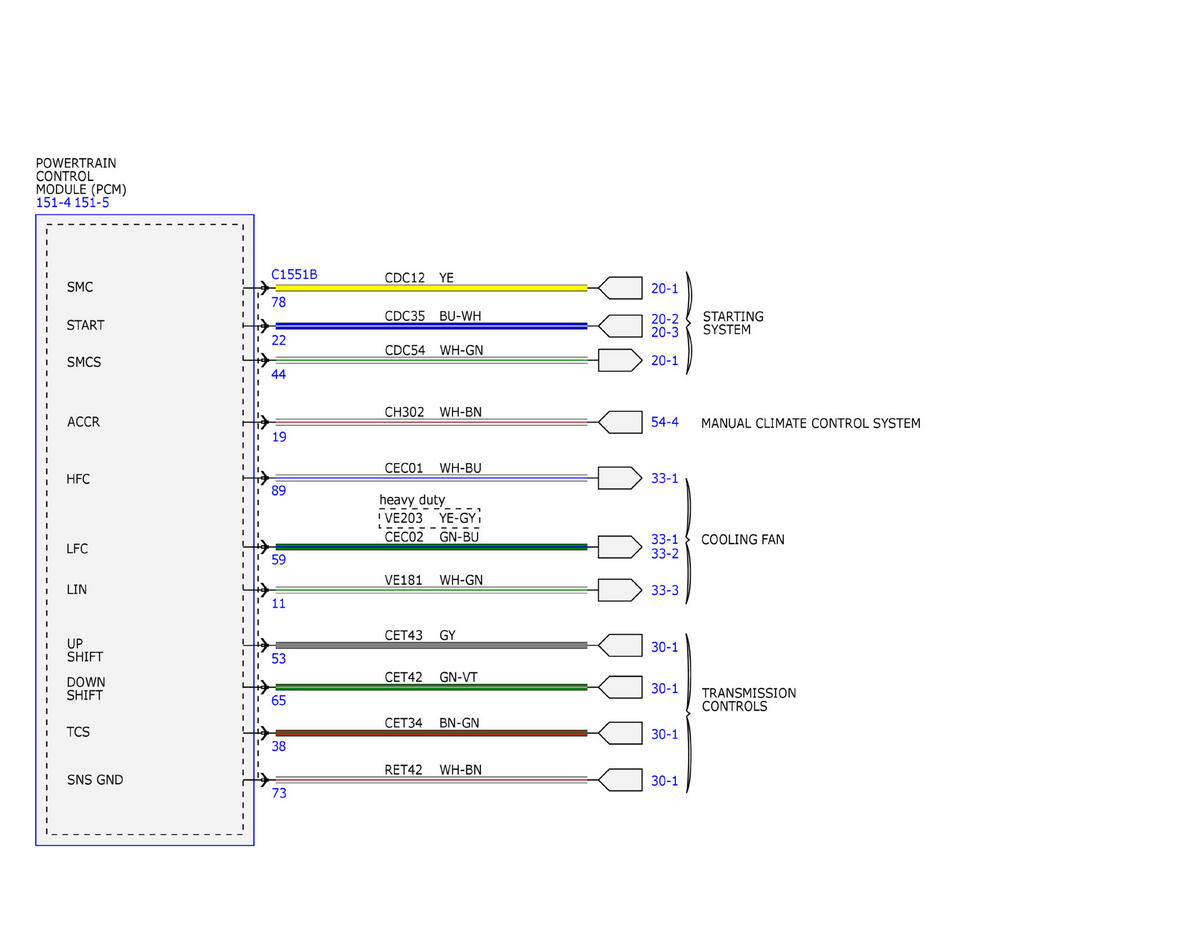

Fig 8: No Caption

GFDWR239038

Courtesy of FORD MOTOR COMPANY

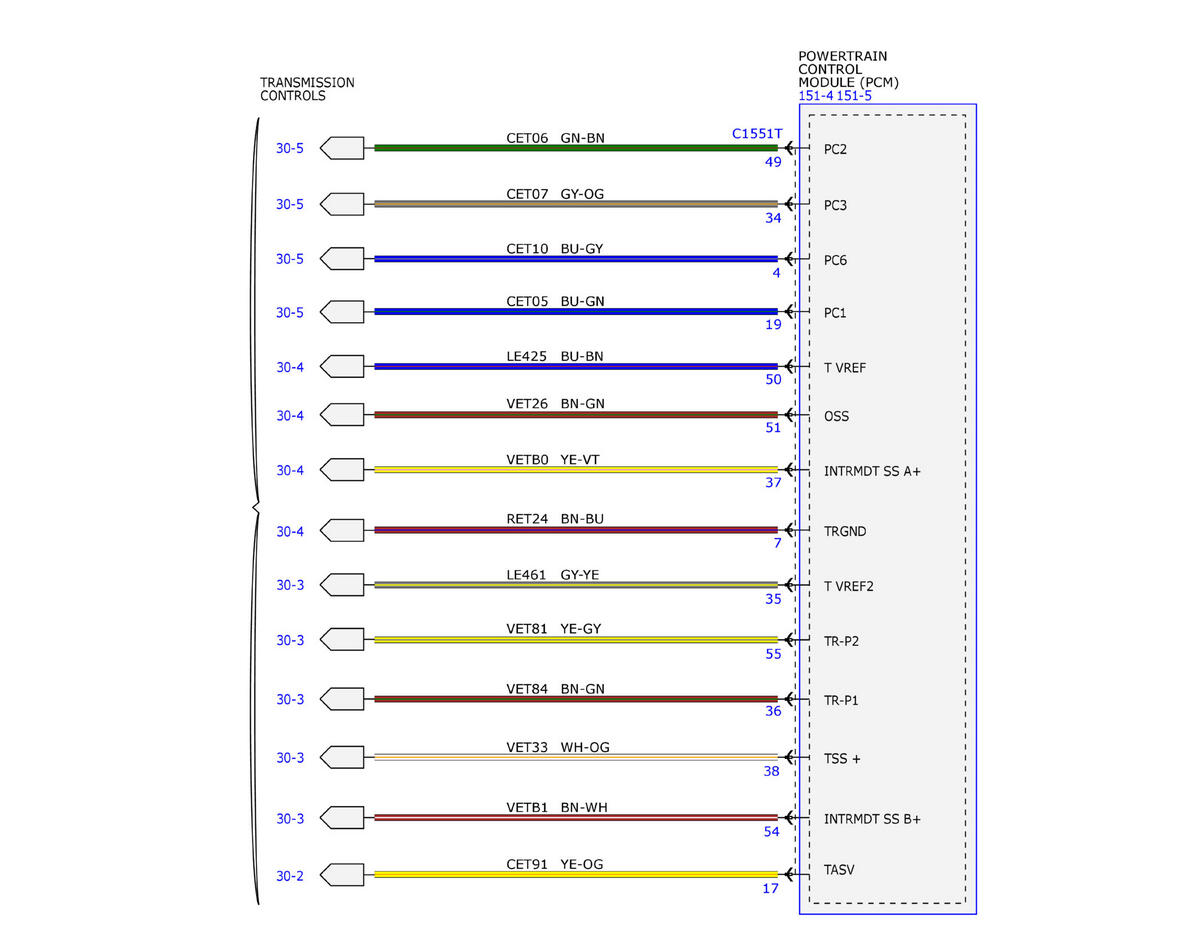

Fig 9: No Caption

GFDWR239039

Courtesy of FORD MOTOR COMPANY

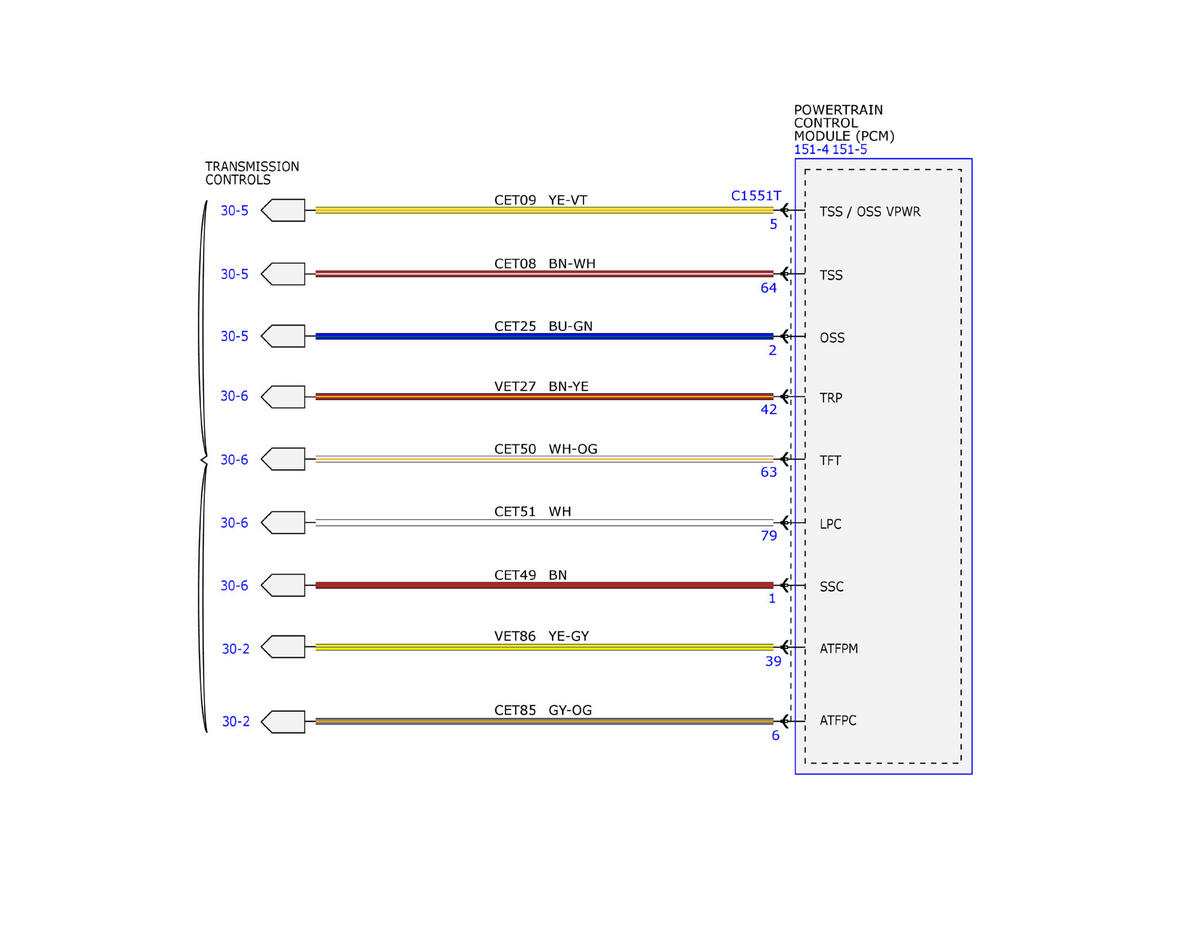

Fig 10: No Caption

GFDWR239040

Courtesy of FORD MOTOR COMPANY

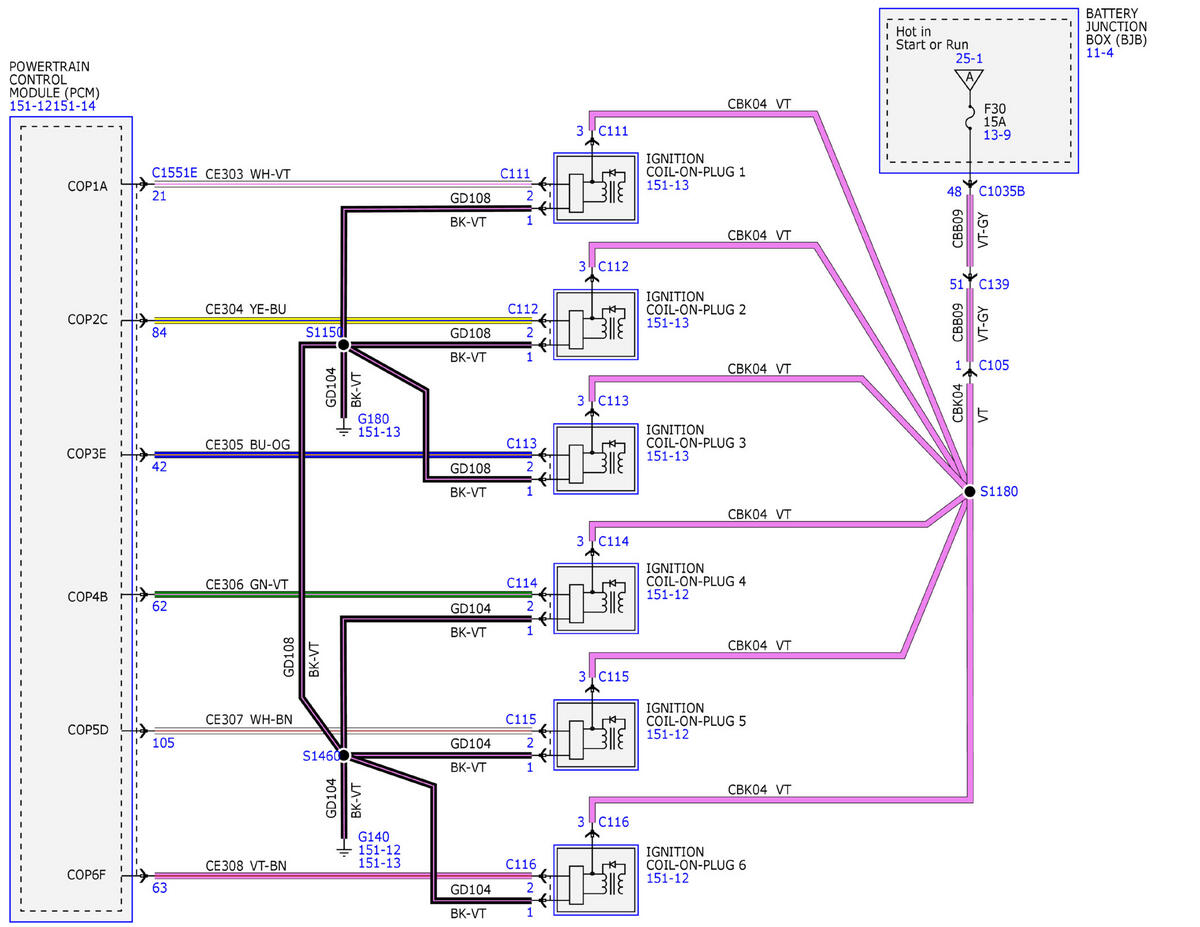

Fig 11: No Caption

GFDWR239041

Courtesy of FORD MOTOR COMPANY

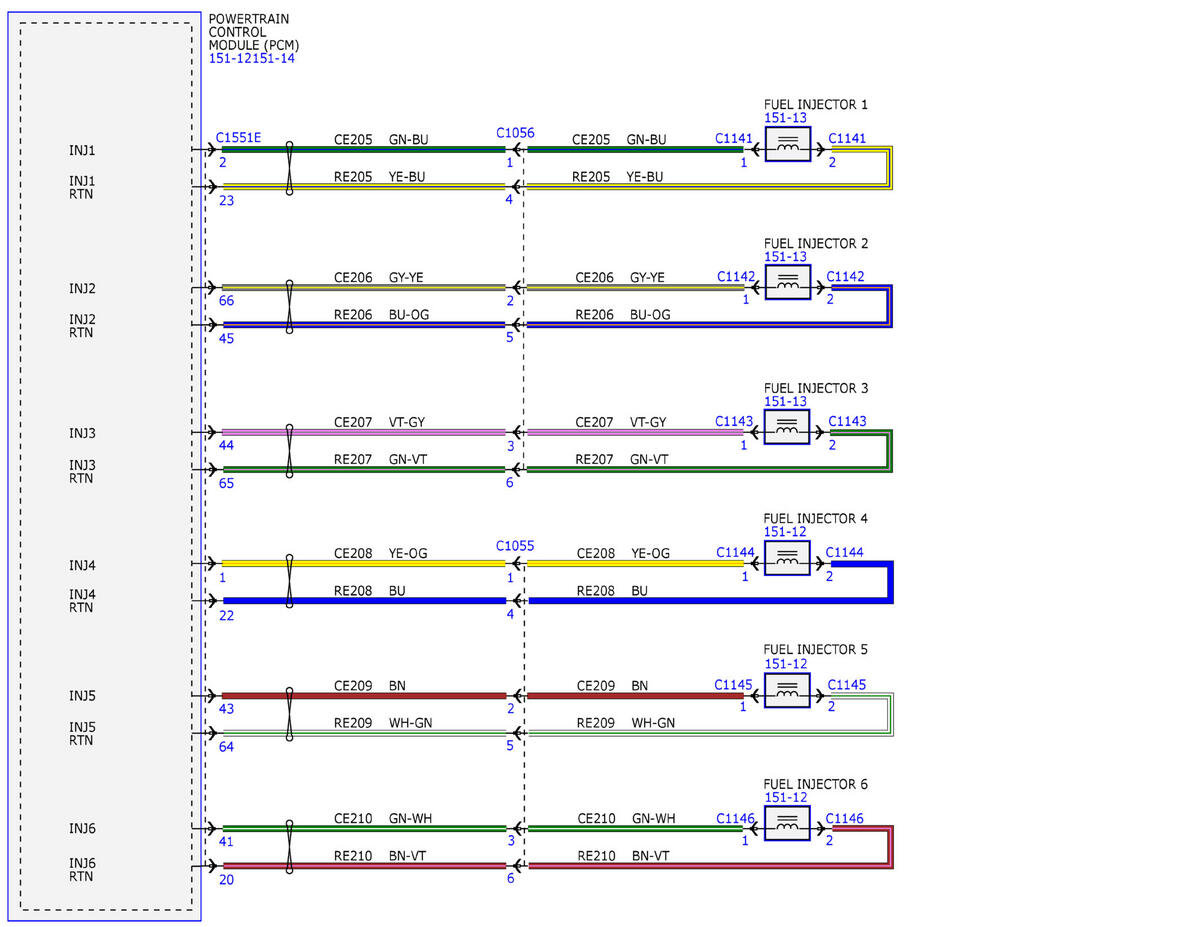

Fig 12: No Caption

GFDWR239042

Courtesy of FORD MOTOR COMPANY

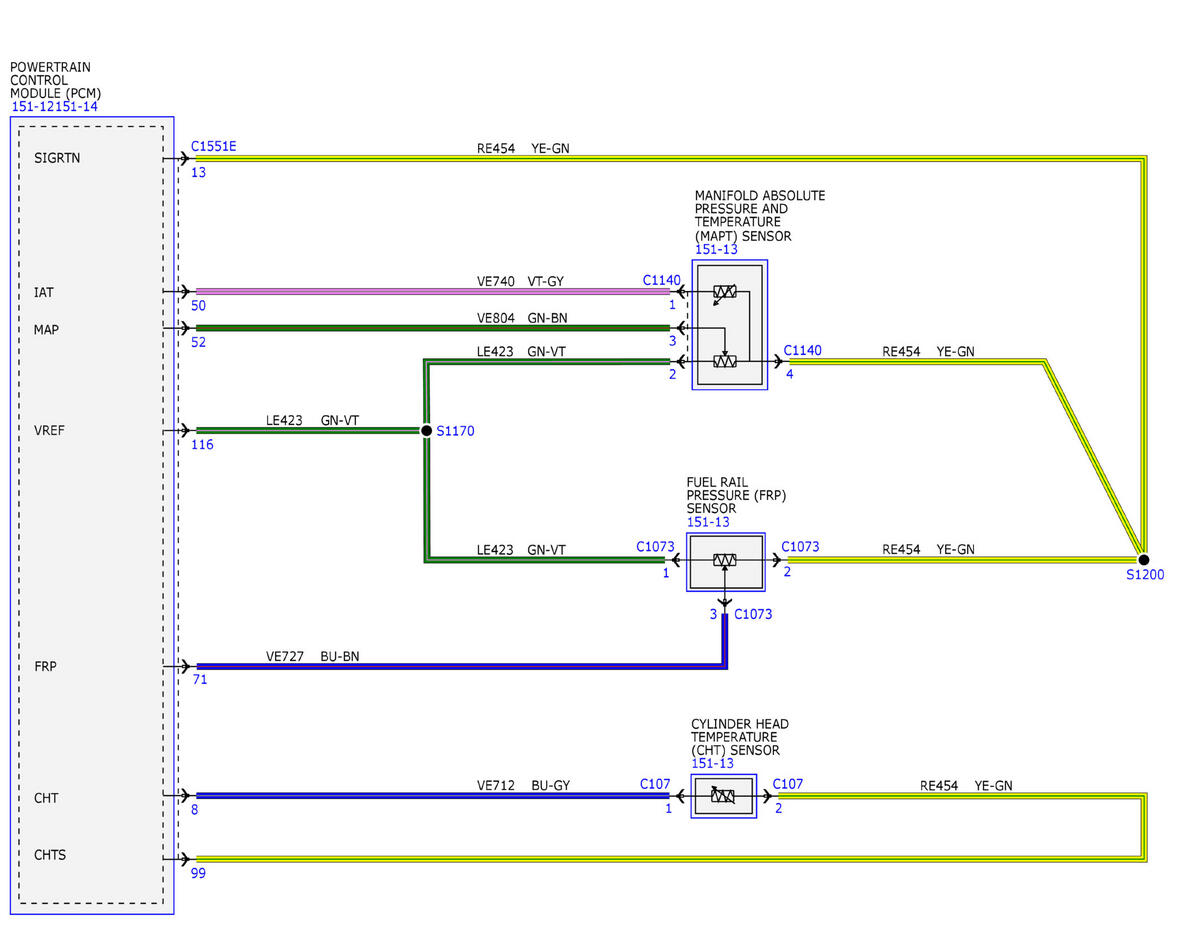

Fig 13: No Caption

GFDWR239043

Courtesy of FORD MOTOR COMPANY

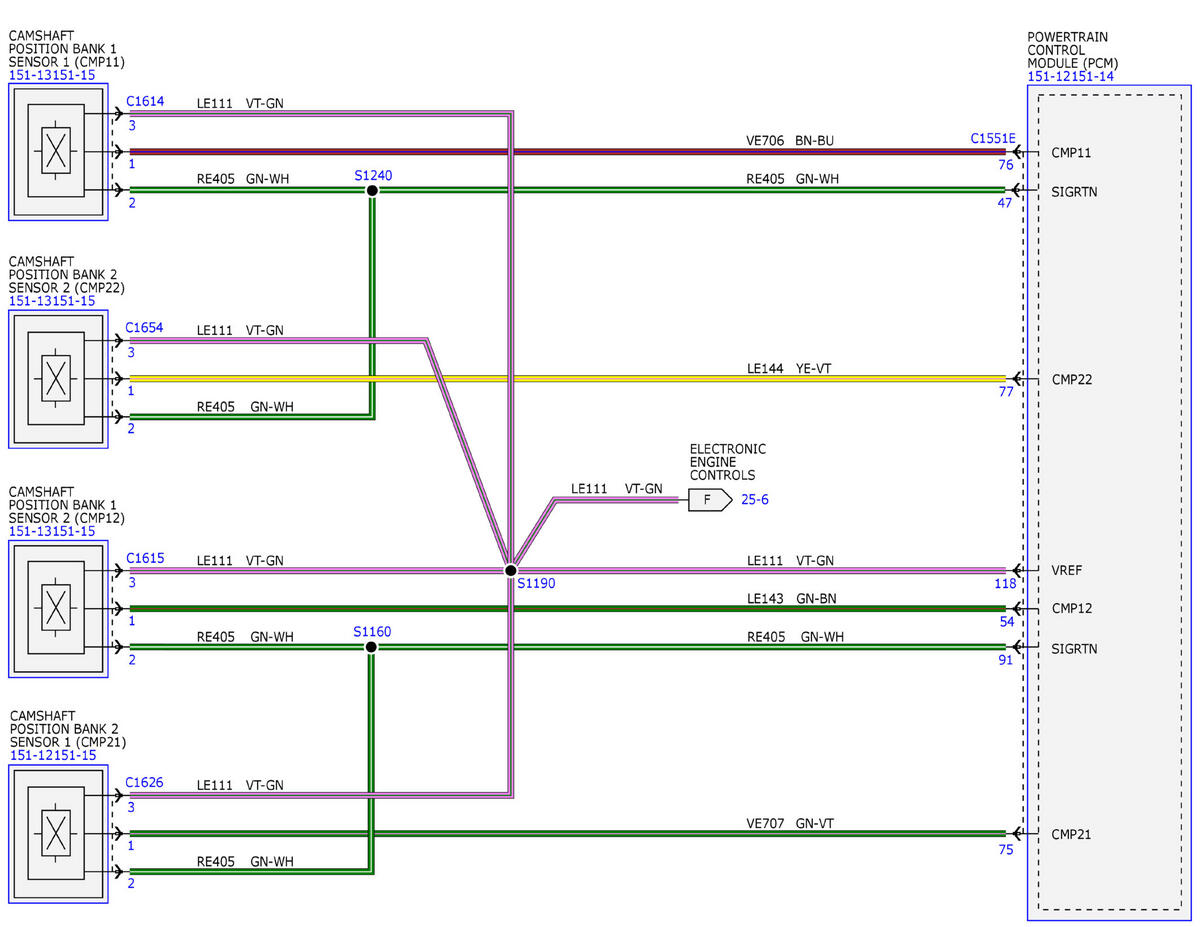

Fig 14: No Caption

GFDWR239044

Courtesy of FORD MOTOR COMPANY

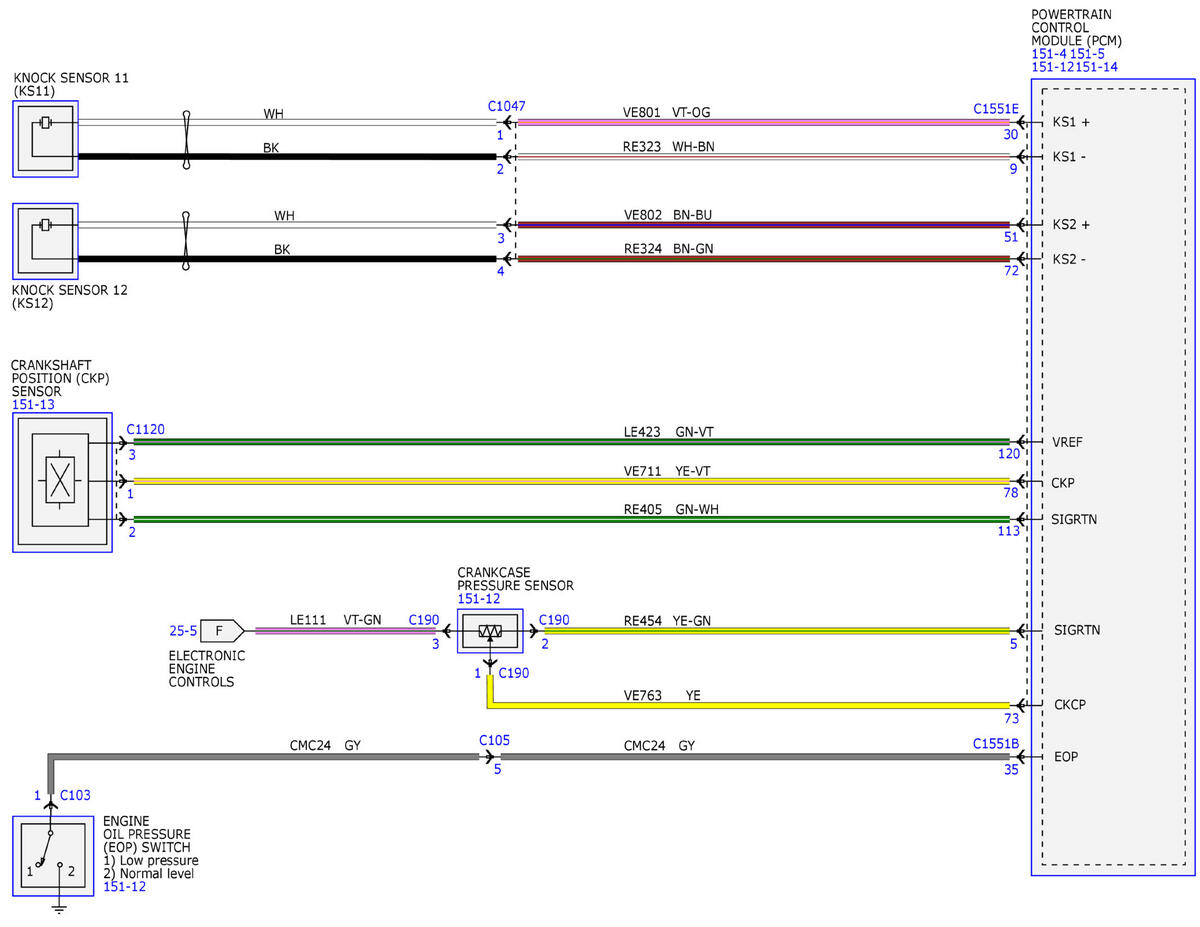

Fig 15: No Caption

GFDWR239045

Courtesy of FORD MOTOR COMPANY

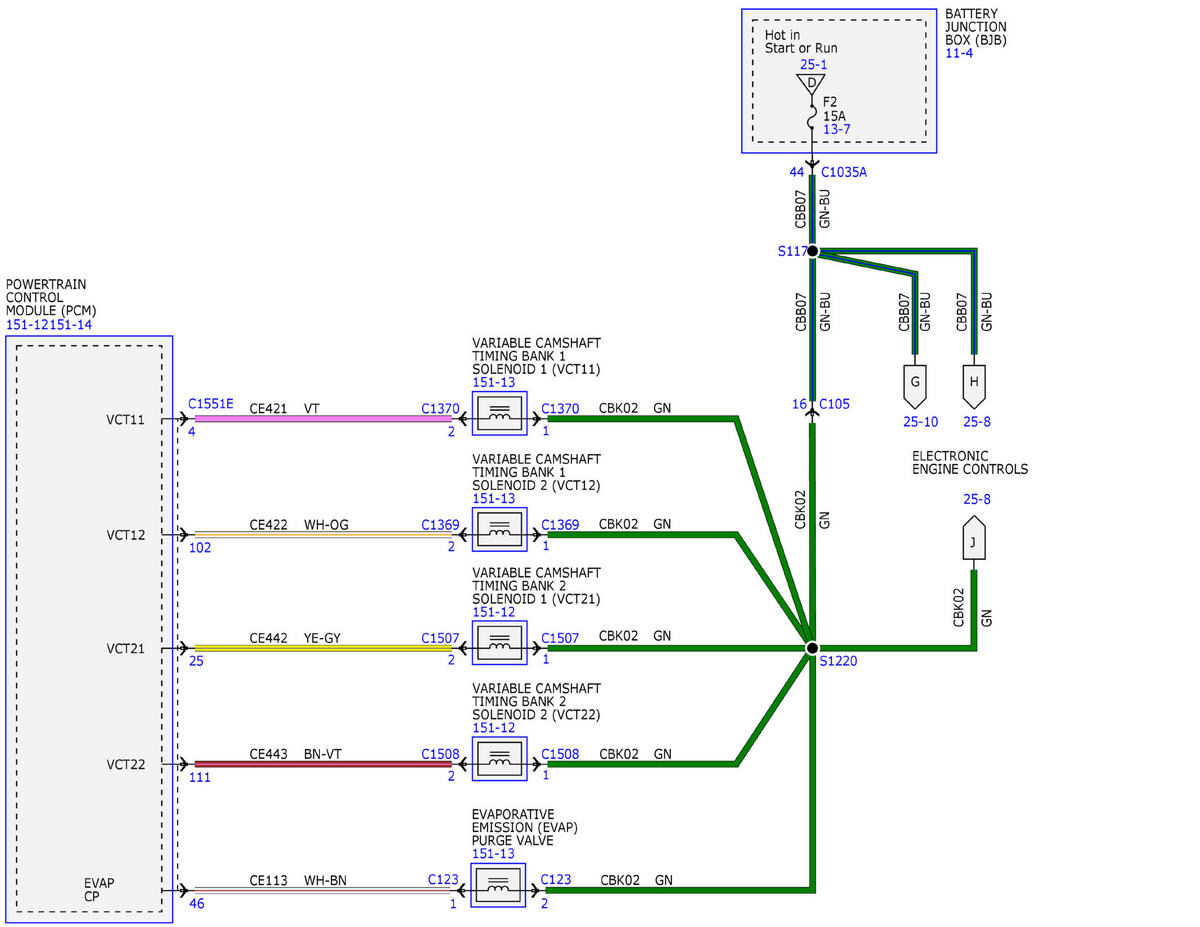

Fig 16: No Caption

GFDWR239046

Courtesy of FORD MOTOR COMPANY

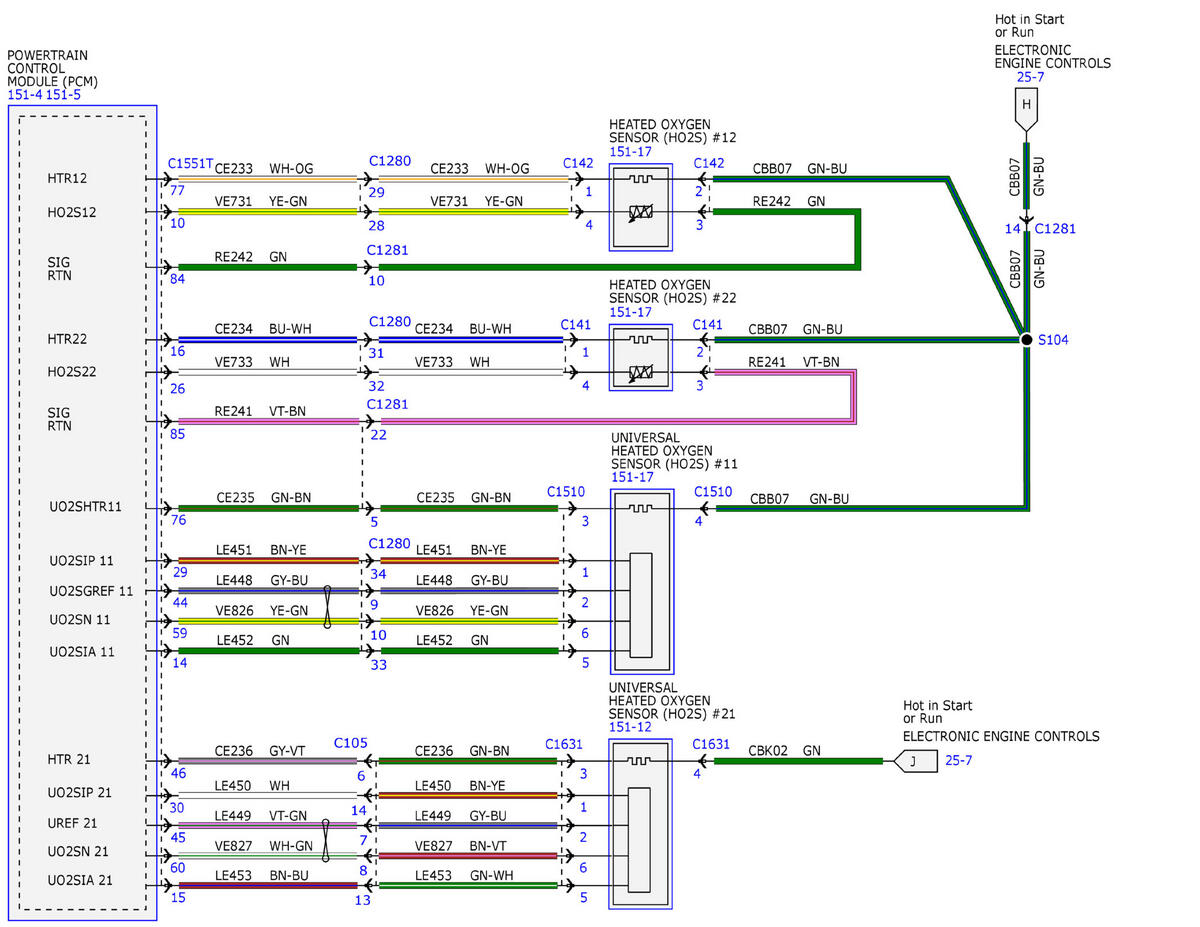

Fig 17: No Caption

GFDWR239047

Courtesy of FORD MOTOR COMPANY

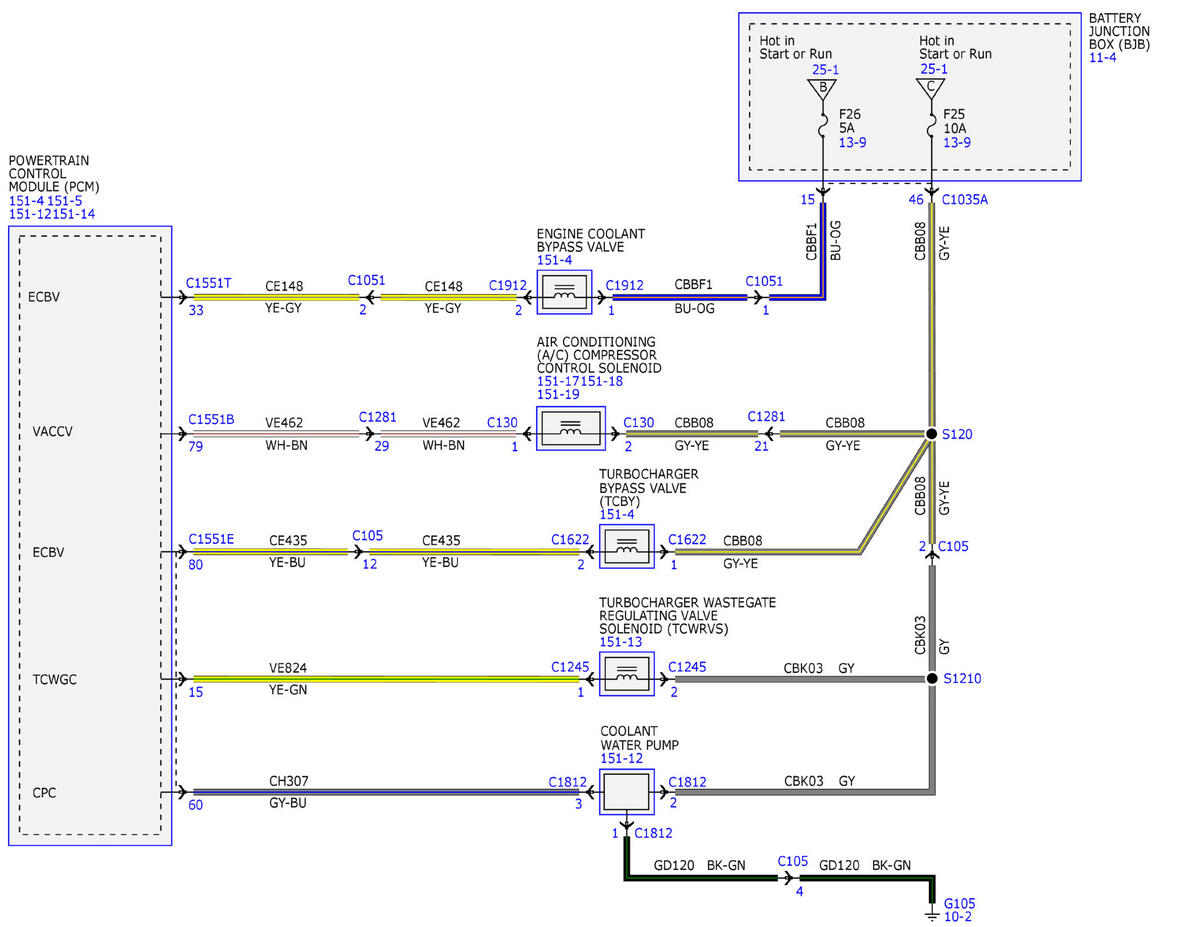

Fig 18: No Caption

GFDWR239048

Courtesy of FORD MOTOR COMPANY
