Cooling Fan

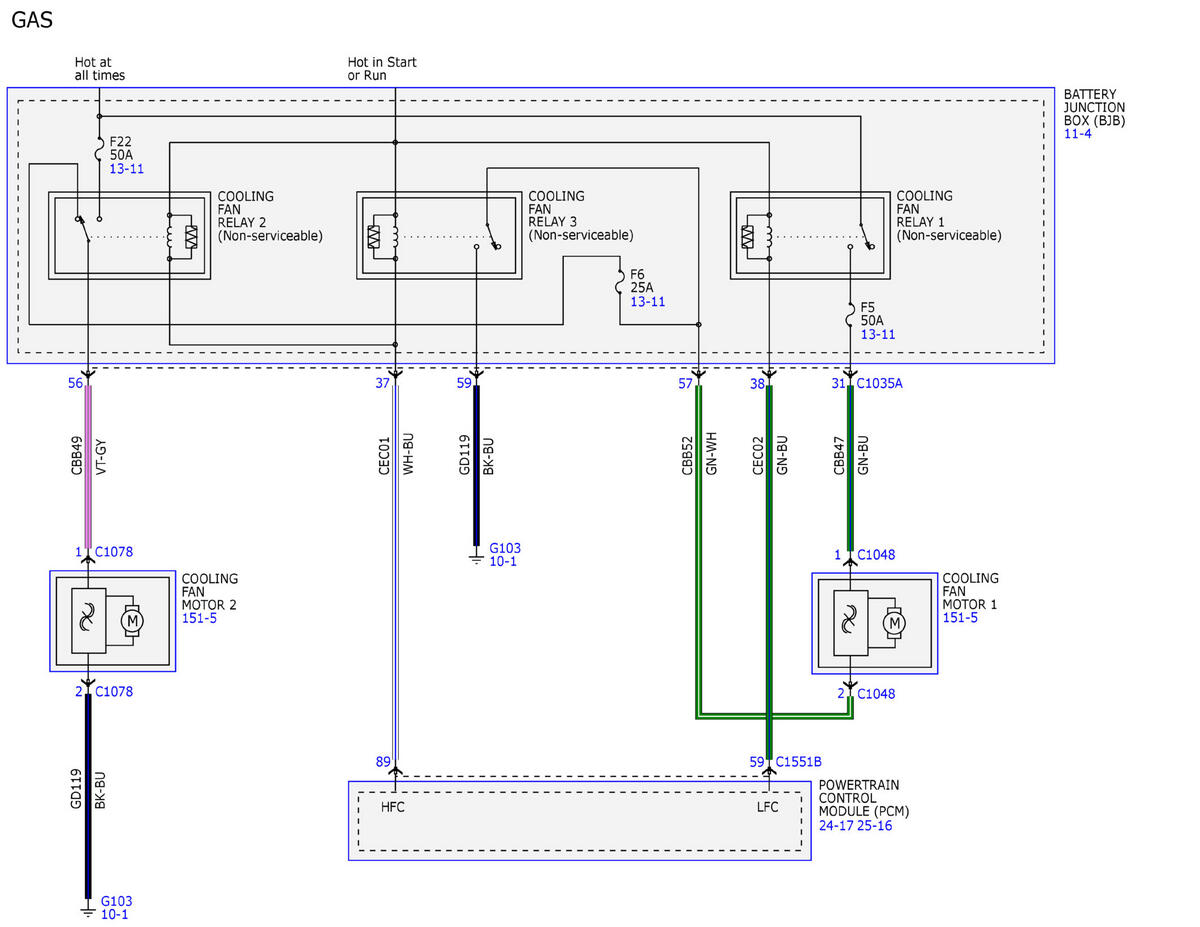

Fig 1: No Caption
GFDWR239007Courtesy of FORD MOTOR COMPANY

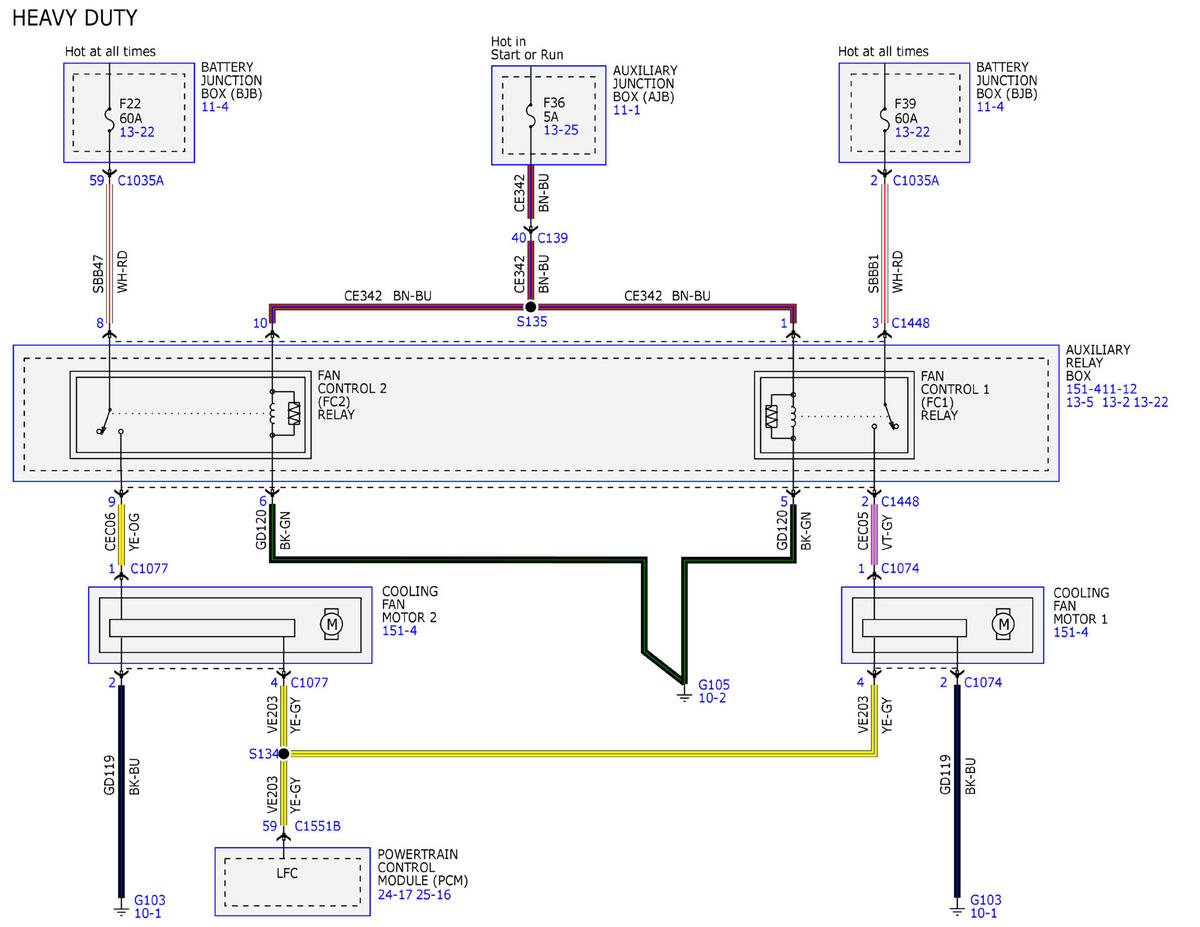

Fig 2: No Caption
GFDWR239008Courtesy of FORD MOTOR COMPANY

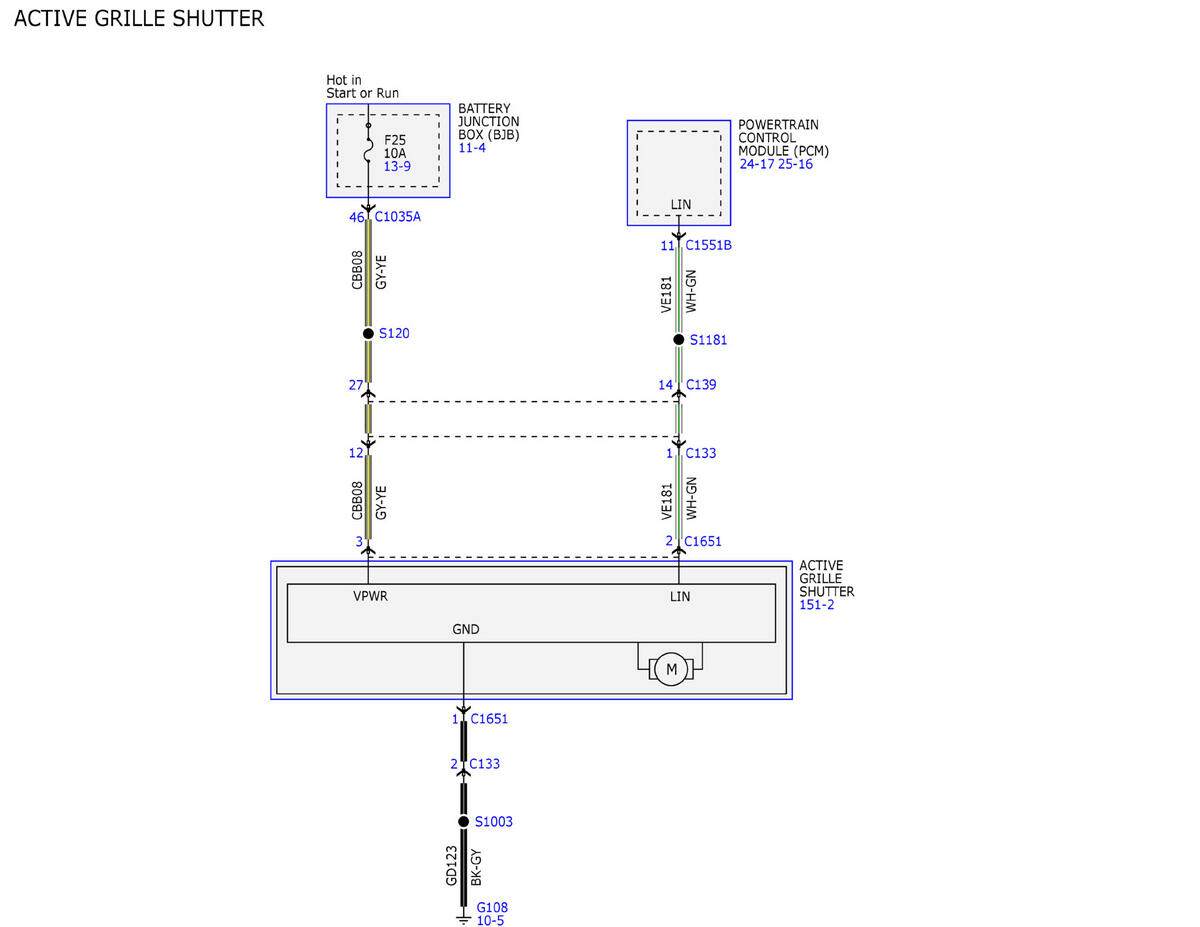

Fig 3: No Caption
GFDWR239009Courtesy of FORD MOTOR COMPANY

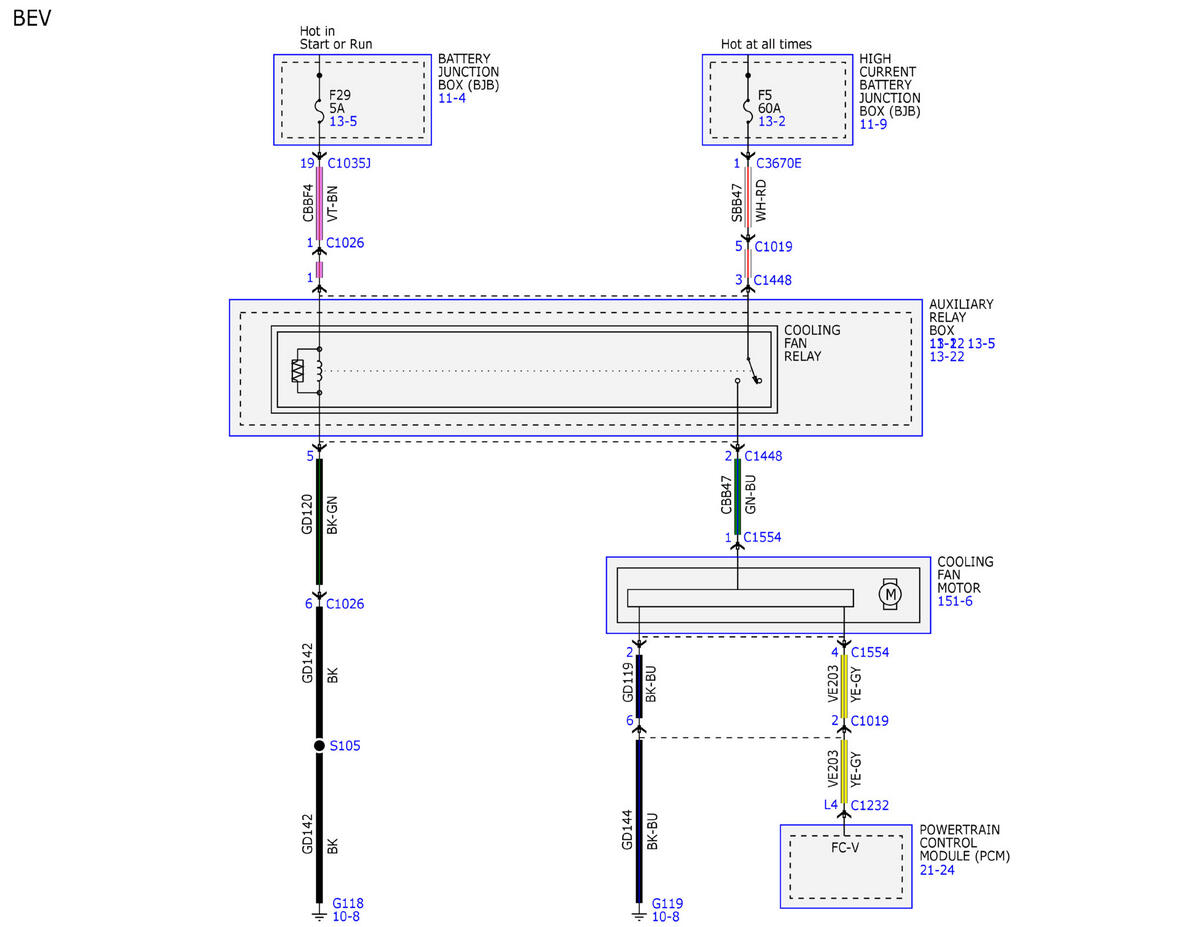

Fig 4: No Caption
GFDWR239010Courtesy of FORD MOTOR COMPANY
