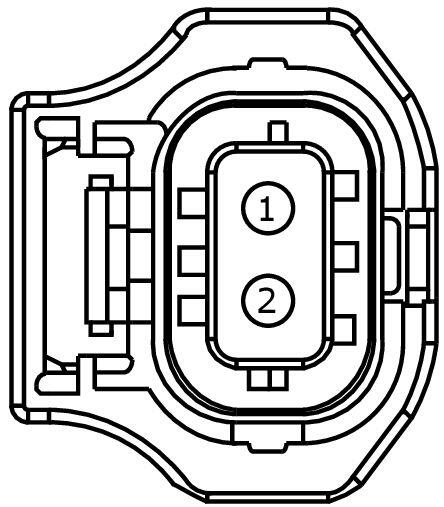

Connector End View C4479 - PARKING BRAKE ACTUATOR MOTOR RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4479 | PARKING BRAKE ACTUATOR MOTOR RH | BK | 14A107/2L508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-TB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CCB19 (BU) | 12 | CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) | EU5T-14474-TB | ||||
| 2 | CCB18 (BK) | 12 | CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+) | EU5T-14474-TB | ||||
Available Pigtail Kits
Pigtail Kit Part Number
: WPT-1506
Service Part Number:
AU2Z-14S411-DB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
Actuator - Door Lock Fuel Injector Injector - UREA Sensor - Fuel Rail Pressure Solenoid - Engine Variable Timing Solenoid - Fuel Volume Regulator Control Valve - Fuel Metering Valve - Heated PCV Valve - Vapor Management
