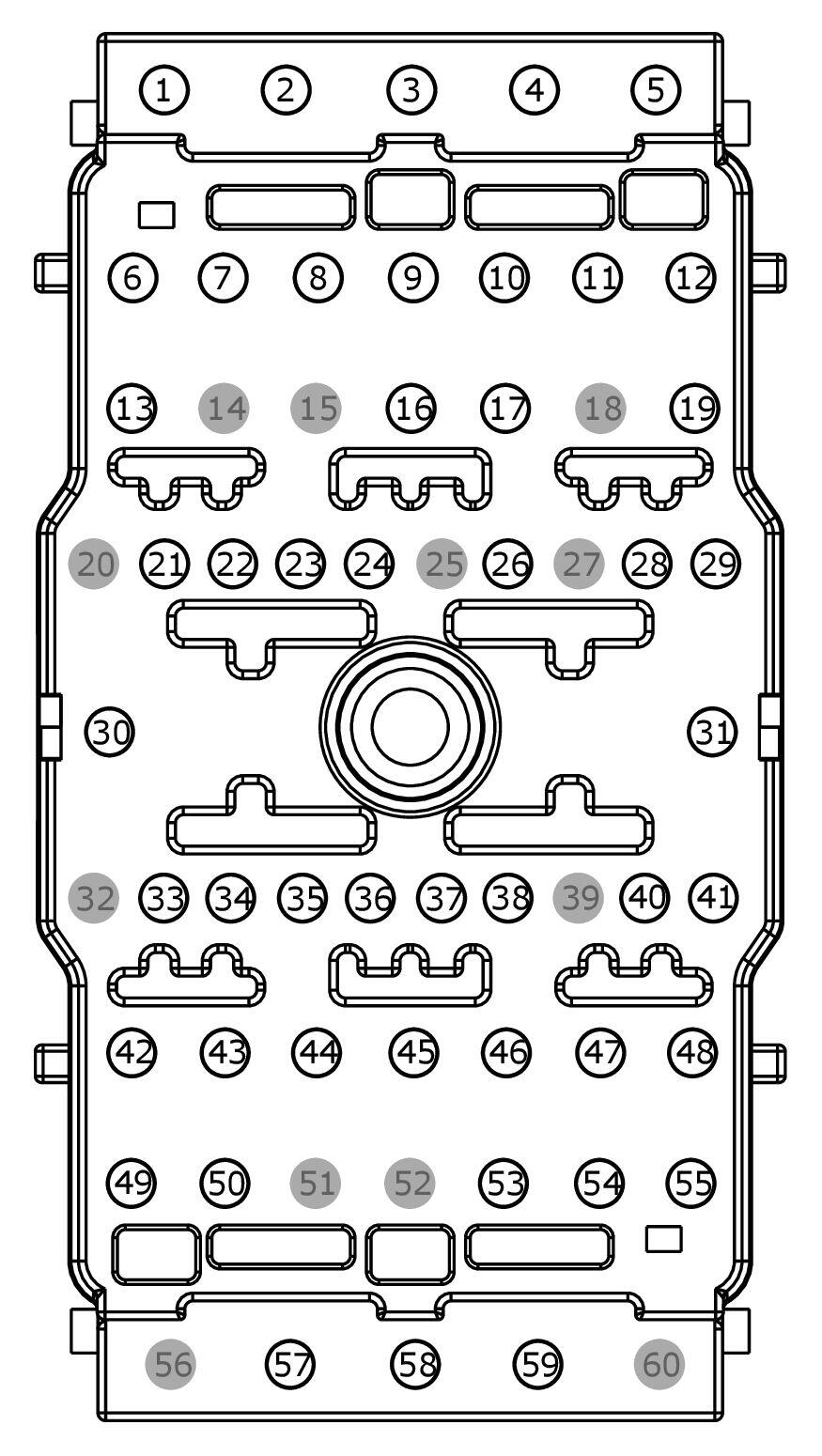

| 1 |
CBB58 (GY-OG) |
18 |
FUSE - 58 OR CIRCUIT BREAKER |
BEV |
DU5T-14474-JBB |
| 2 |
CBBJ7 (GN-BN) |
10 |
FUSE - 45 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
| 3 |
CLF31 (YE-GY) |
18 |
RELAY- BEAM LOW RIGHT |
DU5T-14474-JBB |
| 3 |
CLF31 (YE-GY) |
20 |
RELAY- BEAM LOW RIGHT |
BEV 4P |
N/A |
| 4 |
CBBJ8 (GY-VT) |
10 |
FUSE - 46 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
| 5 |
CLF30 (VT-BN) |
18 |
RELAY- BEAM LOW LEFT |
DU5T-14474-JBB |
| 5 |
CLF30 (VT-BN) |
20 |
RELAY- BEAM LOW LEFT |
BEV 4P |
N/A |
| 6 |
CAT16 (GY-BN) |
16 |
RELAY - TRAILER TOW BACKUP LAMPS |
DU5T-14474-JBB |
| 7 |
CLF05 (BU-GN) |
20 |
CTRL MOD. - BEAM LOW RIGHT |
DU5T-14474-JBB |
| 8 |
SBB05 (GY-RD) |
20 |
FUSE - 5 OR CIRCUIT BREAKER |
BEV |
DU5T-14474-JBB |
| 9 |
CLF04 (BN-BU) |
18 |
CTRL MOD. - BEAM LOW LEFT |
DU5T-14474-JBB |
| 10 |
SBB74 (YE-RD) |
10 |
FUSE - 74 OR CIRCUIT BREAKER |
BEV |
DU5T-14474-UBB |
| 11 |
CB201 (BU) |
12 |
FUSE - 1 OR CIRCUIT BREAKER |
DU5T-14474-LBB |
| 12 |
SBB80 (VT-RD) |
10 |
FUSE - 80 OR CIRCUIT BREAKER |
DU5T-14474-NBB |
| 13 |
CAT17 (BN) |
10 |
RELAY - TRAILER TOW PARK LAMPS (COLOR TO SAE 1239) |
DU5T-14474-NBB |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BEV |
DU5T-14474-JBB |
| 17 |
SBB17 (RD) |
20 |
FUSE - 17 OR CIRCUIT BREAKER |
BEV |
DU5T-14474-JBB |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CBB04 (VT-RD) |
12 |
FUSE - 13 OR CIRCUIT BREAKER |
DU5T-14474-LBB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BU5T-14474-UA |
| 22 |
CDC43 (YE-BU) |
20 |
RELAY - ELECTRICAL STEERING COLUMN LOCK |
BEV |
BU5T-14474-UA |
| 23 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BU5T-14474-UA |
| 24 |
CAT11 (BN) |
20 |
CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239) |
BU5T-14474-UA |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
CAT03 (GY-BN) |
18 |
CTRL MOD. - TRAILER TOW # BACKUP LAMPS |
7C3T-14474-DA |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
BU5T-14474-UA |
| 29 |
RE226 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
BU5T-14474-UA |
| 30 |
CBBJ5 (WH-OG) |
8 |
FUSE - 11 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
| 31 |
CHA02 (BN-GN) |
10 |
RELAY - AUX. BLOWER |
DU5T-14474-UBB |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BU5T-14474-UA |
| 34 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
N/A |
| 35 |
CH123 (VT-GN) |
20 |
CTRL MOD. - BLOWER MOTOR RELAY |
BU5T-14474-UA |
| 36 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BU5T-14474-UA |
| 37 |
CRH04 (VT-GN) |
20 |
CTRL MOD. - RELAY HORN |
BU5T-14474-UA |
| 37 |
CRH04 (VT-GN) |
22 |
ECU - RELAY HORN |
auxiliary fuse panel |
N/A |
| 38 |
CRD02 (BN-BU) |
20 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
BU5T-14474-UA |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
CPM22 (GY-BN) |
20 |
SWITCH - POWER MIRROR # FOLD/DRIVE TOGGLE |
BU5T-14474-UA |
| 41 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BU5T-14474-UA |
| 42 |
CBB77 (RD) |
20 |
FUSE - 4 OR CIRCUIT BREAKER |
DU5T-14474-JBB |
| 42 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
BEV 4P |
N/A |
| 42 |
CBBH1 (BN) |
18 |
FUSE - 171 OR CIRCUIT BREAKER |
with BEV |
N/A |
| 43 |
CDC72 (BN-WH) |
20 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
DU5T-14474-JBB |
| 44 |
GD238 (BK-WH) |
14 |
GROUND - COWL SIDE/PILLAR A RIGHT |
DU5T-14474-LBB |
| 45 |
CDC71 (YE-GY) |
20 |
CTRL MOD. - POWER OUTLET ENABLE OR SET |
DU5T-14474-JBB |
| 46 |
CBB77 (RD) |
20 |
FUSE - 4 OR CIRCUIT BREAKER |
DU5T-14474-JBB |
| 47 |
GD238 (BK-WH) |
20 |
GROUND - COWL SIDE/PILLAR A RIGHT |
DU5T-14474-JBB |
| 48 |
CBB09 (VT-GY) |
18 |
FUSE - 9 OR CIRCUIT BREAKER |
DU5T-14474-LBB |
| 49 |
CBB54 (VT-OG) |
10 |
FUSE - 21 OR CIRCUIT BREAKER |
DU5T-14474-NBB |
| 49 |
CBBH1 (BN) |
12 |
FUSE - 171 OR CIRCUIT BREAKER |
with BEV |
N/A |
| 50 |
CDC64 (WH-BU) |
20 |
RELAY - RUN ACCESSORY |
DU5T-14474-JBB |
| 51 |
* |
* |
Not Used |
N/A |
| 52 |
* |
* |
Not Used |
N/A |
| 53 |
CBBH8 (GY-OG) |
14 |
FUSE - 178 OR CIRCUIT BREAKER |
DU5T-14474-LBB |
| 54 |
CPM02 (BU) |
20 |
CTRL MOD. - FOLD MIRRORS FOLD POSITION |
DU5T-14474-JBB |
| 55 |
CPM01 (YE-GN) |
20 |
CTRL MOD. - FOLD MIRRORS DRIVE POSITION |
DU5T-14474-JBB |
| 56 |
* |
* |
Not Used |
N/A |
| 57 |
CH402 (YE-GN) |
10 |
RELAY - FRONT BLOWER |
DU5T-14474-UBB |
| 58 |
CRH01 (YE-RD) |
14 |
RELAY - HORN |
DU5T-14474-LBB |
| 59 |
CBBJ6 (BU-WH) |
10 |
FUSE - 12 OR CIRCUIT BREAKER |
DU5T-14474-UBB |
| 60 |
* |
* |
Not Used |
N/A |
