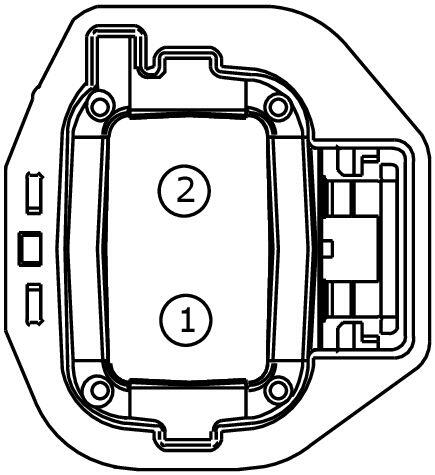

Connector End View C1048 - COOLING FAN MOTOR 1
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1048 | COOLING FAN MOTOR 1 | DK GY | 9K499 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1C1T-14474-AA | KU2Z-14474-AA | 6.30 |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.30 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB47 (GN-BU) | 8 | FUSE - 47 OR CIRCUIT BREAKER | 1C1T-14474-AA | ||||
| 2 | CBB52 (GN-WH) | 8 | FUSE - 52 OR CIRCUIT BREAKER | 97BG-14474-CFA | ||||
Available Pigtail Kits
Pigtail Kit Part Number
: WPT-1619
Service Part Number:
3U2Z-14S411-EUAC
Gauge:
14
Pin material:
Silver & Silver(Greased)
Cavities:
2

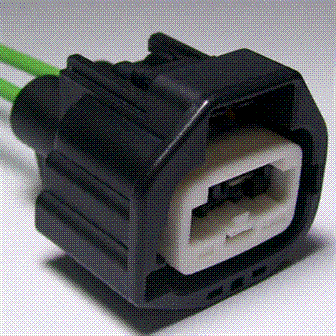

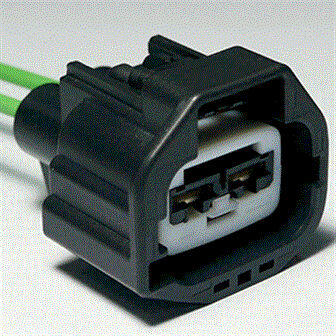

Vehicle Uses:
Actuator - Park Brake Battery Charger - Cooling Fan Connector - Inline Module - All Wheel Drive Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Sensor - Brake Fluid Level Sensor - Washer Fluid level Trailer Tow - Vehicle Side
Pigtail Kit Part Number
: WPT-1669
Service Part Number:
3U2Z-14S411-EUAD
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
Actuator - Park Brake Battery Charger - Cooling Fan Connector - Inline Module - All Wheel Drive Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Sensor - Air Suspension - LH - Rear Sensor - Brake Fluid Level Sensor - Washer Fluid level Trailer Tow - Vehicle Side
Pigtail Kit Part Number
: WPT-1417
Service Part Number:
3U2Z-14S411-EUAB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Trailer Tow - Vehicle Side
