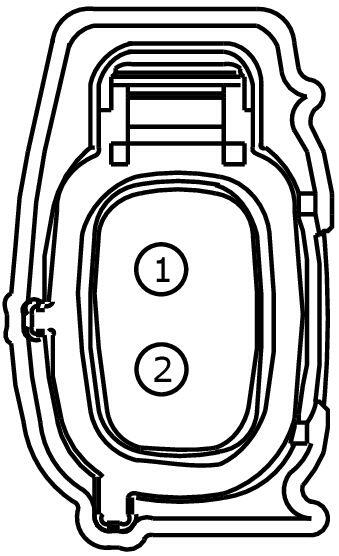

Connector End View C119 - FUEL INJECTION PUMP

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C119	FUEL INJECTION PUMP	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
XR8T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE226 (YE-VT)	17	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	XR8T-14474-CA
2	RE226 (GN-VT)	17	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	XR8T-14474-CA

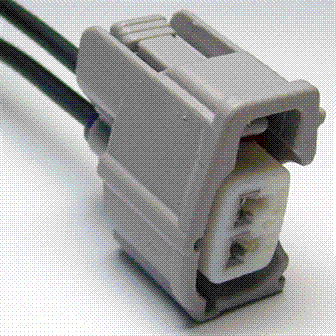

Available Pigtail Kits

Pigtail Kit Part Number

: WPT-1277

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-UA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

Solenoid - Fuel Volume Regulator Control
