Brake Pads - Vehicles With: Single Rear Wheels Electronic Parking Brake (EPB): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH side shown LH side similar.

WARNING: WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

Activate the EPB service mode. Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation .
Remove the wheel and tire. Refer to: Wheel and Tire .
Disconnect the EPB actuator motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Detach the wheel speed sensor harness from the brake hose grommet.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

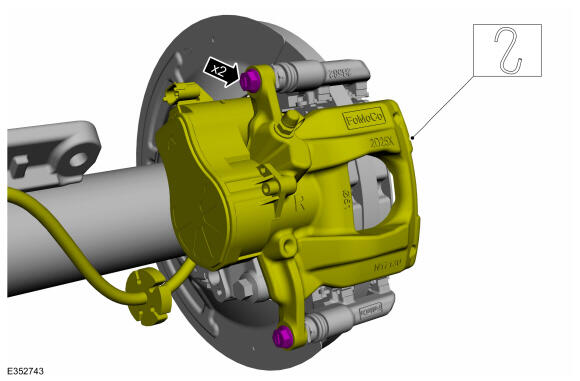

Remove the bolts and position the brake caliper aside.

Torque: 34 Nm

Courtesy of FORD MOTOR COMPANY

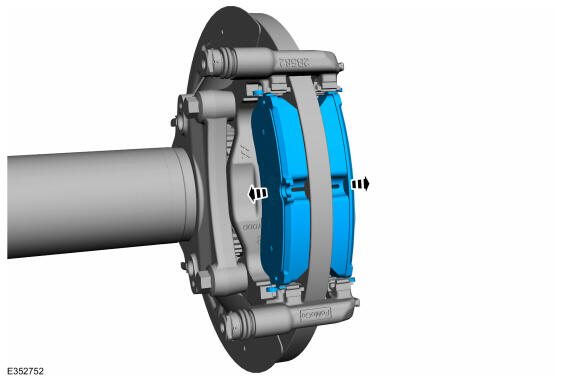

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY

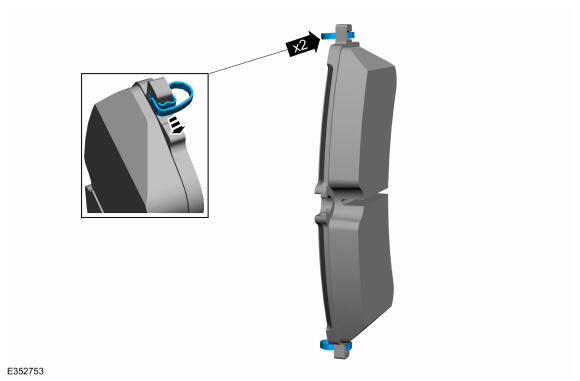

Remove the radial springs from the brake pad.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

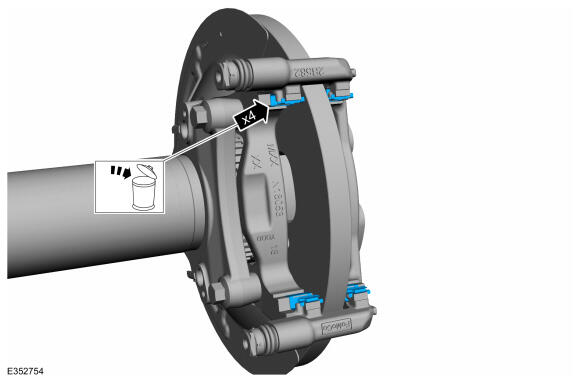

Remove and discard the brake pad clips.

Courtesy of FORD MOTOR COMPANY

NOTE: Below steps are required when guide rods do not move freely.
NOTE: Note the position of the components before removal.

Remove the guide rods.

Courtesy of FORD MOTOR COMPANY
Remove the guide rod boots.

Courtesy of FORD MOTOR COMPANY
