Brake Pads - Electric Motor (C0): Installation

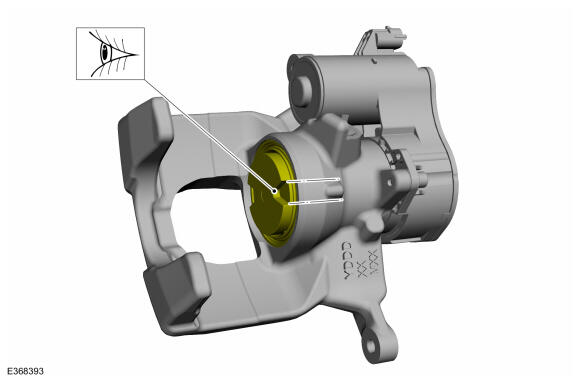

  1. Align the caliper piston groove with the caliper reference.
    GFD837100Courtesy of FORD MOTOR COMPANY

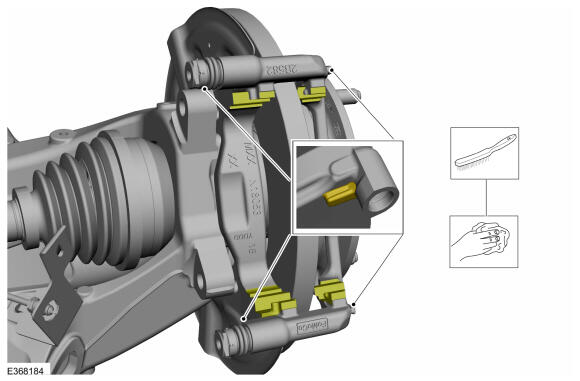

  2. Clean the brake pad to anchor plate contact surface.
    GFD837101Courtesy of FORD MOTOR COMPANY

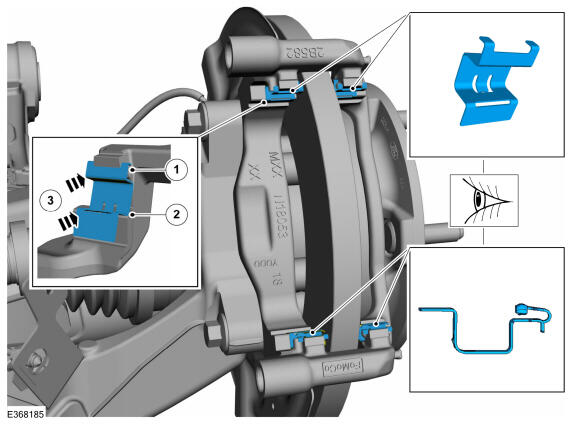

  3. NOTE: Make sure that the components are installed to the position noted before removal.

    1. Start to install the clip from the top rail.
    2. Install the clip over the lower abutment.
    3. Apply pressure with fingers to fully seat the clip against bracket.

    GFD837102Courtesy of FORD MOTOR COMPANY

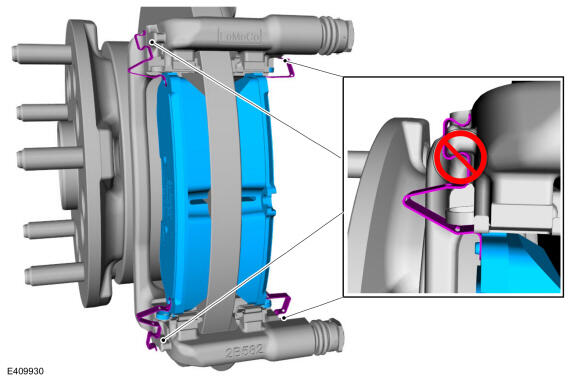

  4. NOTE: To ensure correct fitment of the brake pads, the brake pad springs are clipped to the brake caliper bracket as the last step after switching off the service mode.
    • Slightly tip the pads at an angle.

    • Ensure the guide springs are fully located on the slide.

    • Ensure the brake pads remain in contact with the brake disc.

    GFD837103Courtesy of FORD MOTOR COMPANY

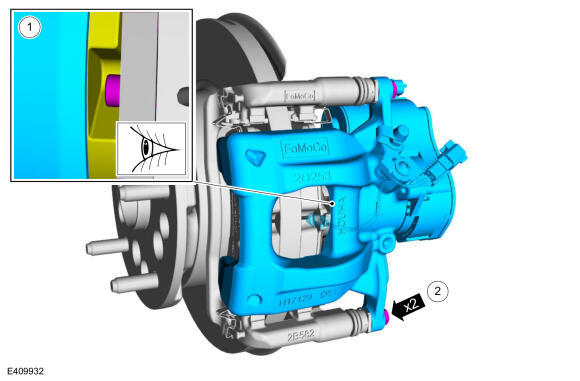

  6. NOTE: Make sure that the brake hose is not twisted and is correctly located.

    1. NOTE: Ensure the inner brake pad with pin is aligned to the caliper piston groove.

      Carefully place the caliper in position, ensure the stud fits into the slot.

    2. NOTE: Take extra care not to damage the component.
      NOTE: Only tighten the bolts finger tight at this stage.

    GFD837104Courtesy of FORD MOTOR COMPANY

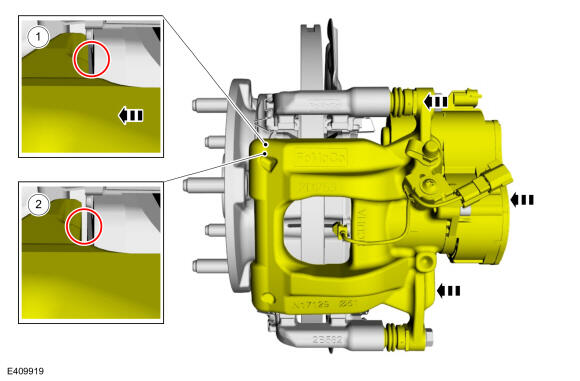

  7. Push the caliper with the hand outwards.
    GFD837105Courtesy of FORD MOTOR COMPANY
  8. Fix the caliper in this position using a spacer 1.5 to 2mm or the suggested equipment.Use the General Equipment: Feeler Gauge
    GFD837106Courtesy of FORD MOTOR COMPANY

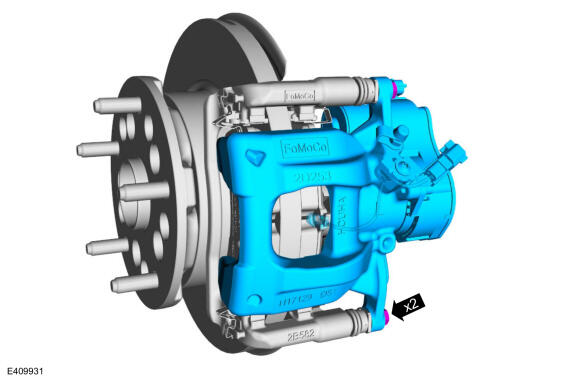

  9. Tighten the brake caliper bolts.

    Torque: 34 Nm

    GFD837107Courtesy of FORD MOTOR COMPANY

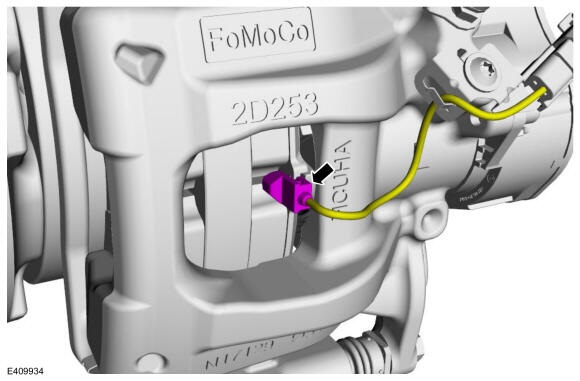

  10. Connect the electrical connector.
    GFD837108Courtesy of FORD MOTOR COMPANY

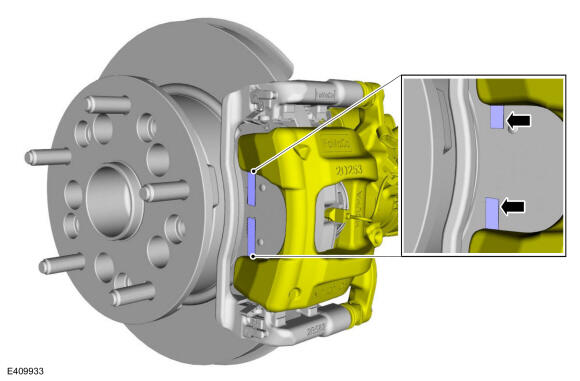

  11. Remove the equipment.
    GFD837109Courtesy of FORD MOTOR COMPANY
  12. Deactivate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
  13. Apply the brake pedal several times to verify correct brake system operation.

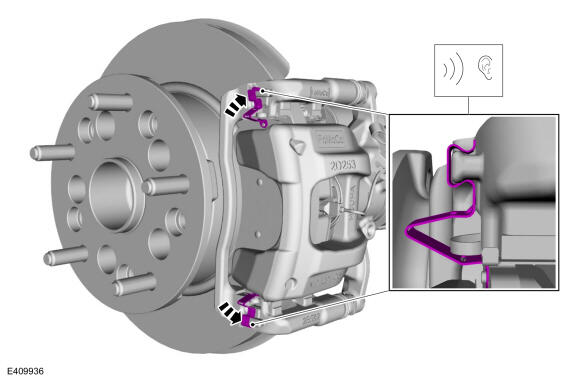

  14. NOTE: Brake pad clip is one time fit and can not be reused if damaged.
    NOTE: Make sure that the component is correctly located on the locating dowels.

    Listen to the click sound while installing the clips to the bracket.

    GFD837110Courtesy of FORD MOTOR COMPANY
  15. Remove the wheel and tire. Refer to: Wheel and Tire .
