Brake Disc Shield - Vehicles With: Light Duty Brakes: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING

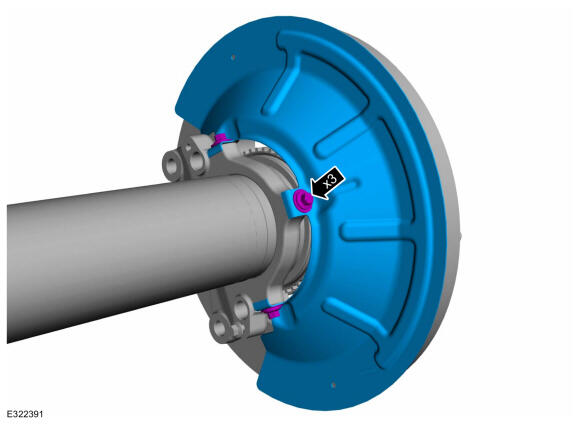

2. Remove the 3 bolts and the brake disc shield.

   Torque: 15 Nm
