Brake Disc - Vehicles With: Single Rear Wheels Electronic Parking Brake (EPB): Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

Activate the EPB service mode. Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation .
Remove the axle shaft. Refer to: Axle Shaft .

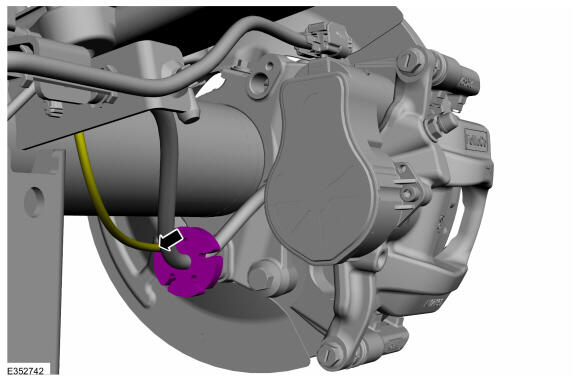

Detach the wheel speed sensor harness from the brake hose grommet.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no load is placed on the brake hose.

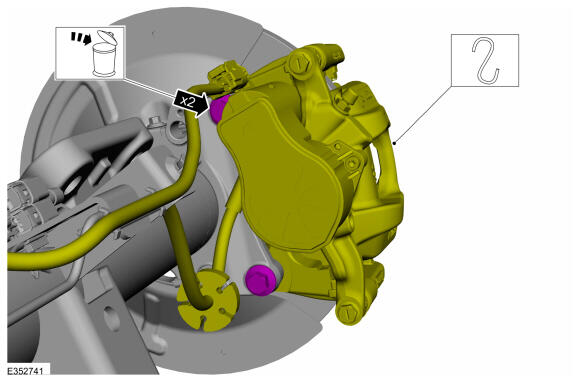

Remove and discard the anchor plate bolts. Support the brake caliper and anchor plate assembly.

Torque: SRW:: 115 Nm

Courtesy of FORD MOTOR COMPANY

NOTE: SRW graphics shown, SRW Jumbo similar.
NOTE: SRW graphics shown, SRW Jumbo similar

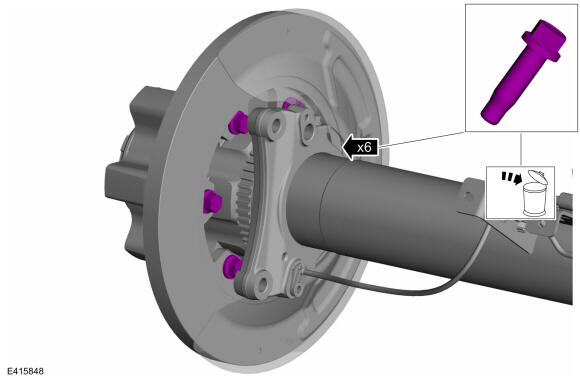

Remove the brake disc bolts. Discard the bolts

Torque:

Stage 1: 35 lb. ft (48 N.m)

Stage 2: 60°

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no load is placed on the brake hose.

NOTE: Make sure that the mating faces are clean and free of foreign material.

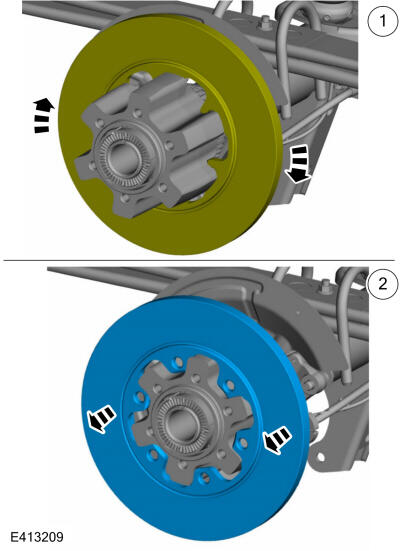

Rotate and remove the brake disc.

Courtesy of FORD MOTOR COMPANY
