Brake Disc - Vehicles With: Dual Rear Wheels Light Duty Brakes: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Axle Shaft .

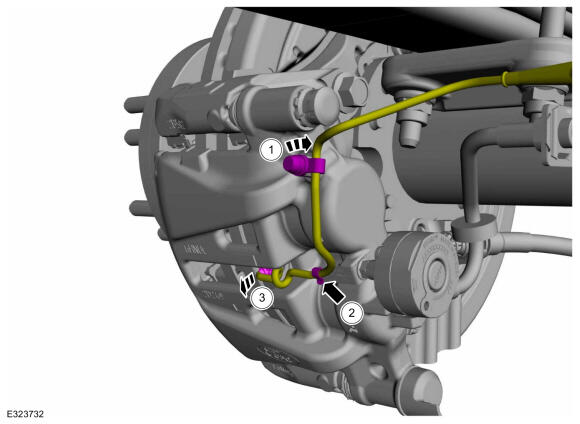

Disconnect the brake pad wear indicator assembly and position aside.
1. Remove the bleeder screw cap and detach the wear indicator sensor cable.
2. Detach the wear indicator sensor cable from mounting bracket.
3. Detach the wear indicator sensor.
Courtesy of FORD MOTOR COMPANY

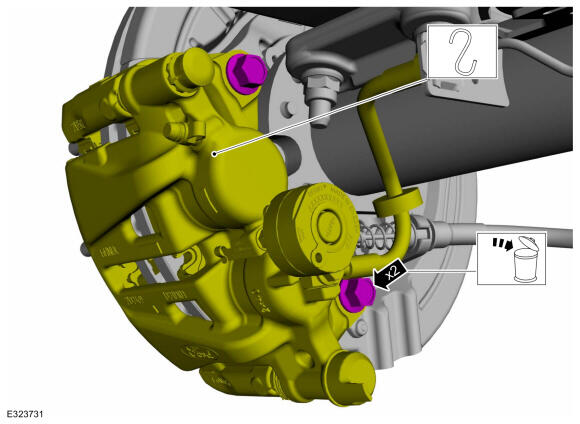

NOTE: Make sure that no load is placed on the brake hose.

Remove the 2 anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.

Torque: 175 Nm

Courtesy of FORD MOTOR COMPANY

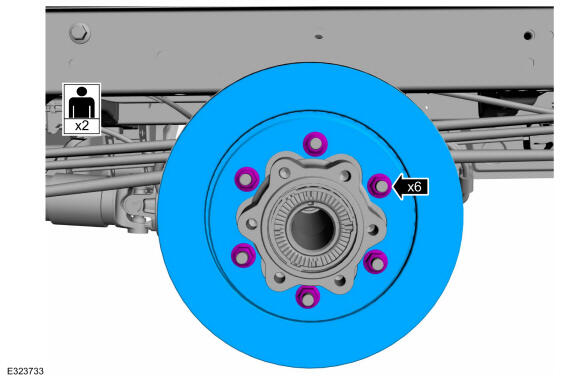

NOTE: This step requires the aid of another technician.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Remove the nuts and the brake disc.

Torque: 175 Nm

Courtesy of FORD MOTOR COMPANY
