Brake Caliper Anchor Plate - Vehicles With: Light Duty Brakes Single Rear Wheels Electronic Parking Brake (EPB): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake pads. Refer to: Brake Pads - Vehicles With: Single Rear Wheels/Electronic Parking Brake (EPB) .
2. NOTE: Discard the bolts.
   NOTE: Make sure that new bolts are installed.

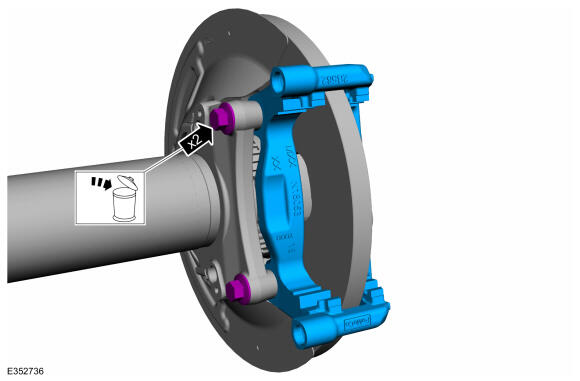

   Remove the bolts and the brake caliper anchor plate. Discard the bolts.

   Torque: SRW:: 115 Nm

Courtesy of FORD MOTOR COMPANY
