Brake Caliper - Vehicles With: Dual Rear Wheels Heavy Duty Brakes: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove wheel and tire. Refer to: Wheel and Tire .
  2. Disconnect the brake pad wear indicator assembly and position aside.

    1. Remove the bleeder screw cap and detach the wear indicator sensor cable.
    2. Detach the wear indicator sensor cable from mounting bracket.
    3. Detach the wear indicator sensor.

    GFD837080Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure that all openings are sealed.

    Remove the brake hose flow bolt and disconnect the brake hose from the brake caliper. Discard the washers.

    Torque: 35 Nm

    GFD837081Courtesy of FORD MOTOR COMPANY

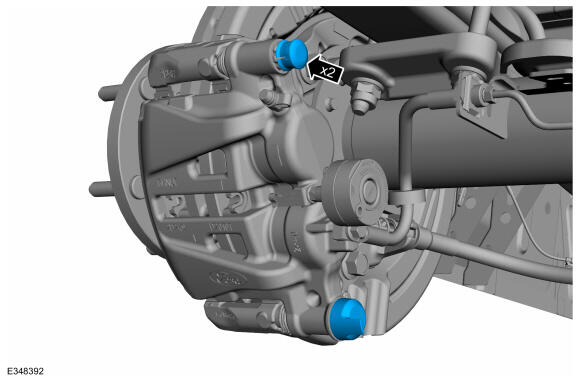

  4. Remove the guide pin bolt caps.
    GFD837083Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the brake caliper. Discard the bolts.

    Torque: 34 Nm

GFD837082Courtesy of FORD MOTOR COMPANY
