Brake Caliper - Electric Motor (C0): Installation

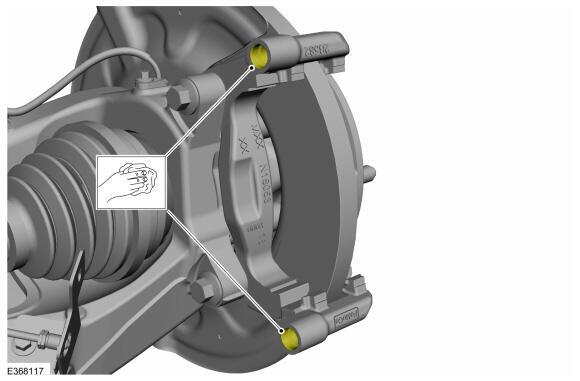

- Clean the anchor plate bore using the specified material.
Material: Brake Cleaner
- Dry the anchor plate bore with air line.

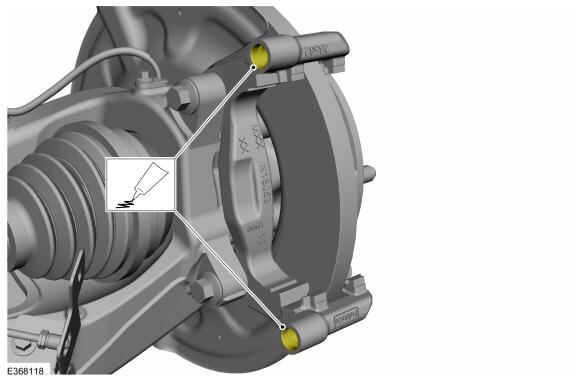

- Fill the anchor plate bore with the grease supplied in service kit.
Material: (ESA-M1C200-A) (ESE-M1C171-A)

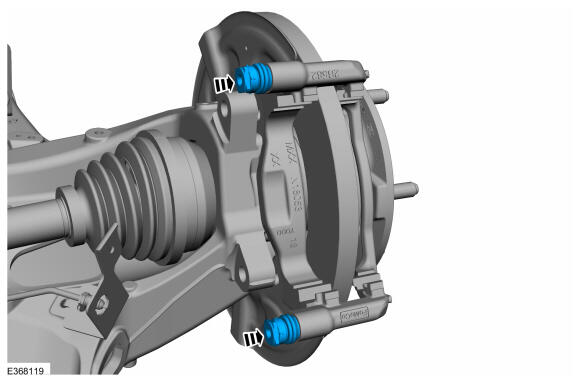

- Orient and push guide rod all the way into caliper anchor plate bore.

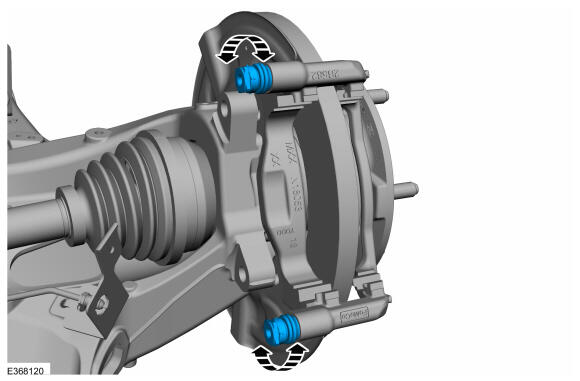

- Rotate the guide rod to grease the complete surface. Pull the guide rod back and forth to remove the excess grease.
- To install, reverse the removal procedure.
- Deactivate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
- Bleed the brake system. Refer to: Brake System Bleeding .
- Apply the brake pedal several times to verify correct brake system operation.
