Brake Backing Plate - Vehicles With: Dual Rear Wheels Heavy Duty Brakes: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

1. Remove the brake shoes. Refer to: Parking Brake Shoes - 5 Ton Vehicle, Vehicles With: Drum-in-Hat .

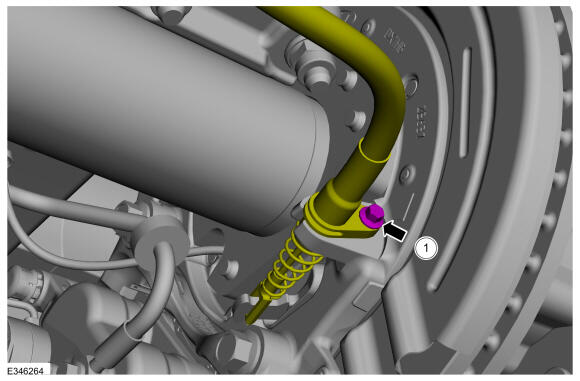

2. Remove the bolt and disconnect the LH parking brake cable from backing plate.

   Torque: 6 Nm

   Courtesy of FORD MOTOR COMPANY

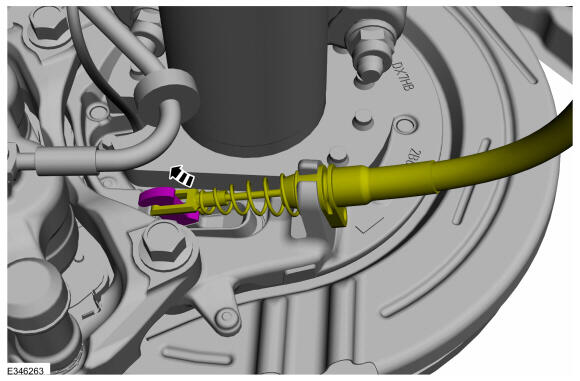

3. Disconnect the LH parking brake cable from the actuation lever.

   Courtesy of FORD MOTOR COMPANY

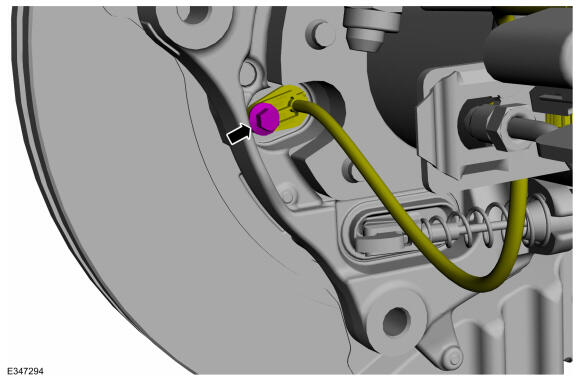

4. Remove the bolt and disconnect the wheel speed sensor.

   Torque: 11 Nm

   Courtesy of FORD MOTOR COMPANY

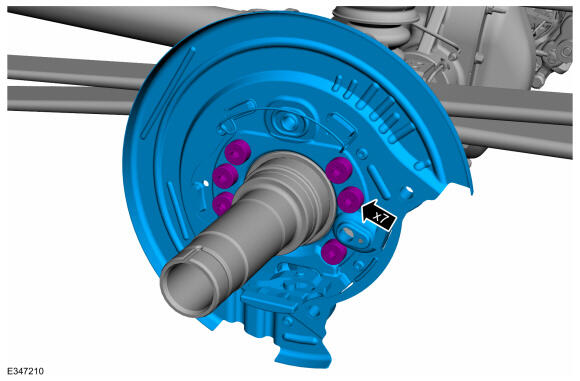

5. Remove the bolts and brake backing plate.

   Torque: 110 Nm

Courtesy of FORD MOTOR COMPANY
