Brake Pedal and Bracket - LHD: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Refer to: STEERING COLUMN
NOTE:
Make sure that the clutch pedal remains in the rest position.
NOTE:
Make sure that the brake pedal remains in the rest position.

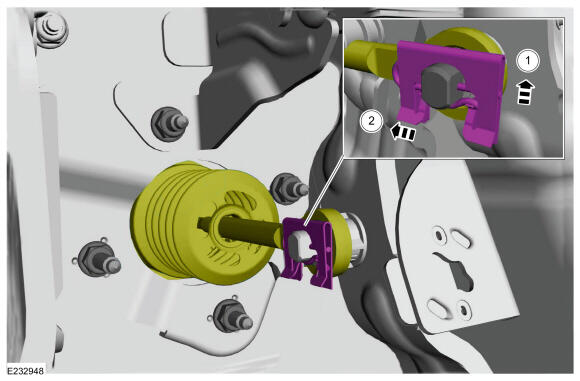

Refer to appropriate Clutch Controls article.
NOTE:
Make sure that the brake booster vacuum is released.
Support the brake booster.
Torque: 20 Nm
