Brake Master Cylinder - LHD 4WD LHD FWD LHD RWD: Installation

To install, reverse the removal procedure.

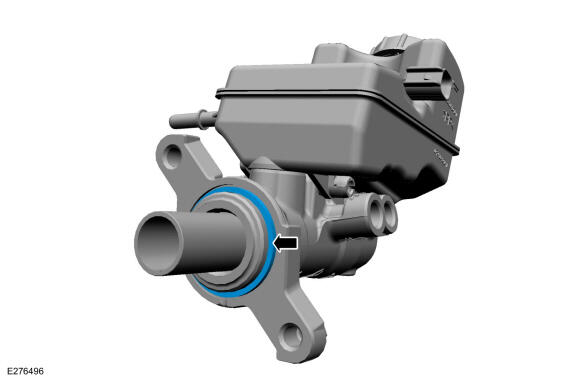

NOTE: Install new brake master cylinder seal. Lubricate the seal with clean, specified brake fluid.

NOTE: Make sure that a new component is installed.

NOTE: Make sure that the seal is correctly located.

Material: (WSS-M6C65-A2)

Courtesy of FORD MOTOR COMPANY
NOTE: Allow the brake pedal to return to it's natural off position, do not lift the brake pedal.

NOTE: The brake pedal switches are automatically adjusted during installation.

Courtesy of FORD MOTOR COMPANY
Refer to: BRAKE SYSTEM PRESSURE BLEEDING
Refer to appropriate Clutch Controls article.
If a new master cylinder was installed, road test the vehicle.
