Instrument Cluster

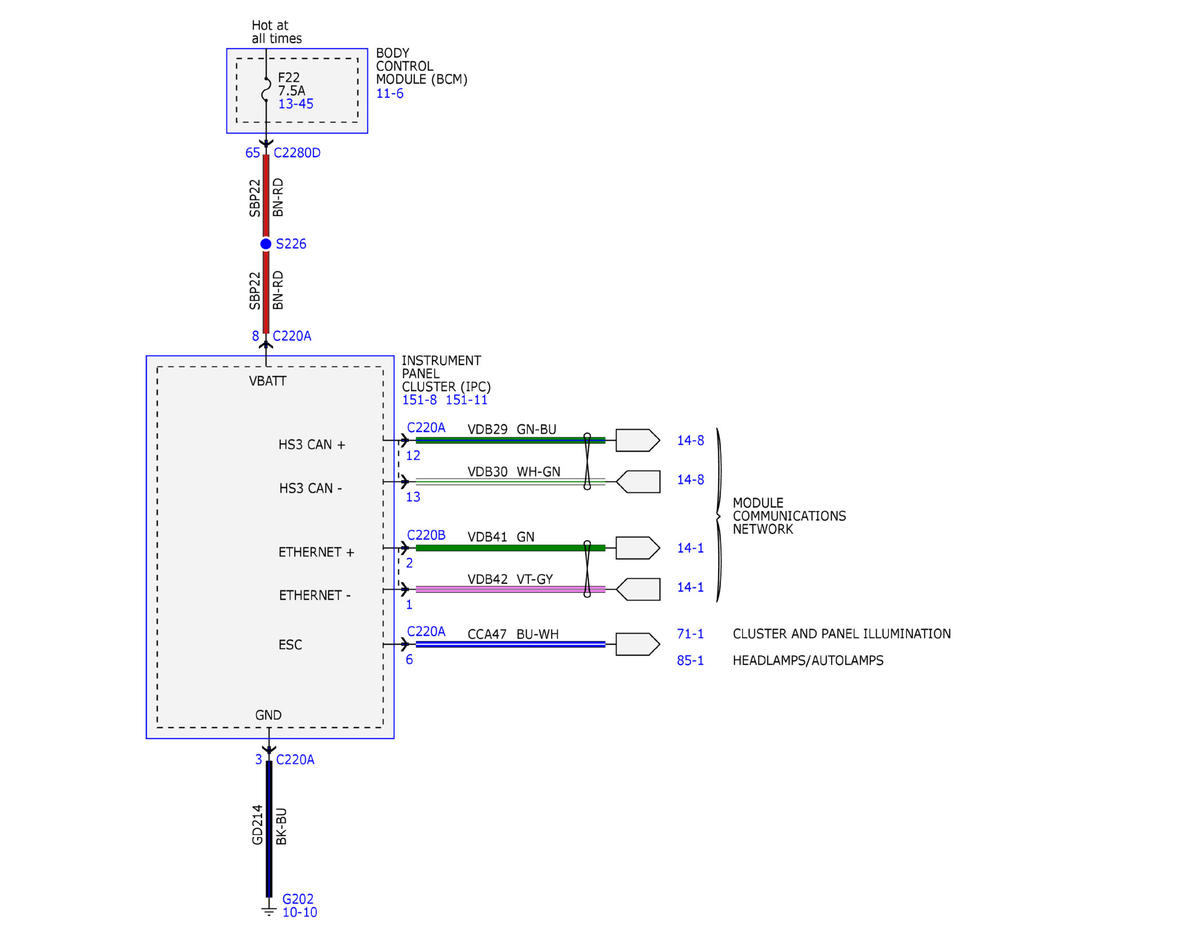

Fig 1: Intrument Cluster Wiring Diagram (1 Of 4)
GFDWR204451Courtesy of FORD MOTOR COMPANY

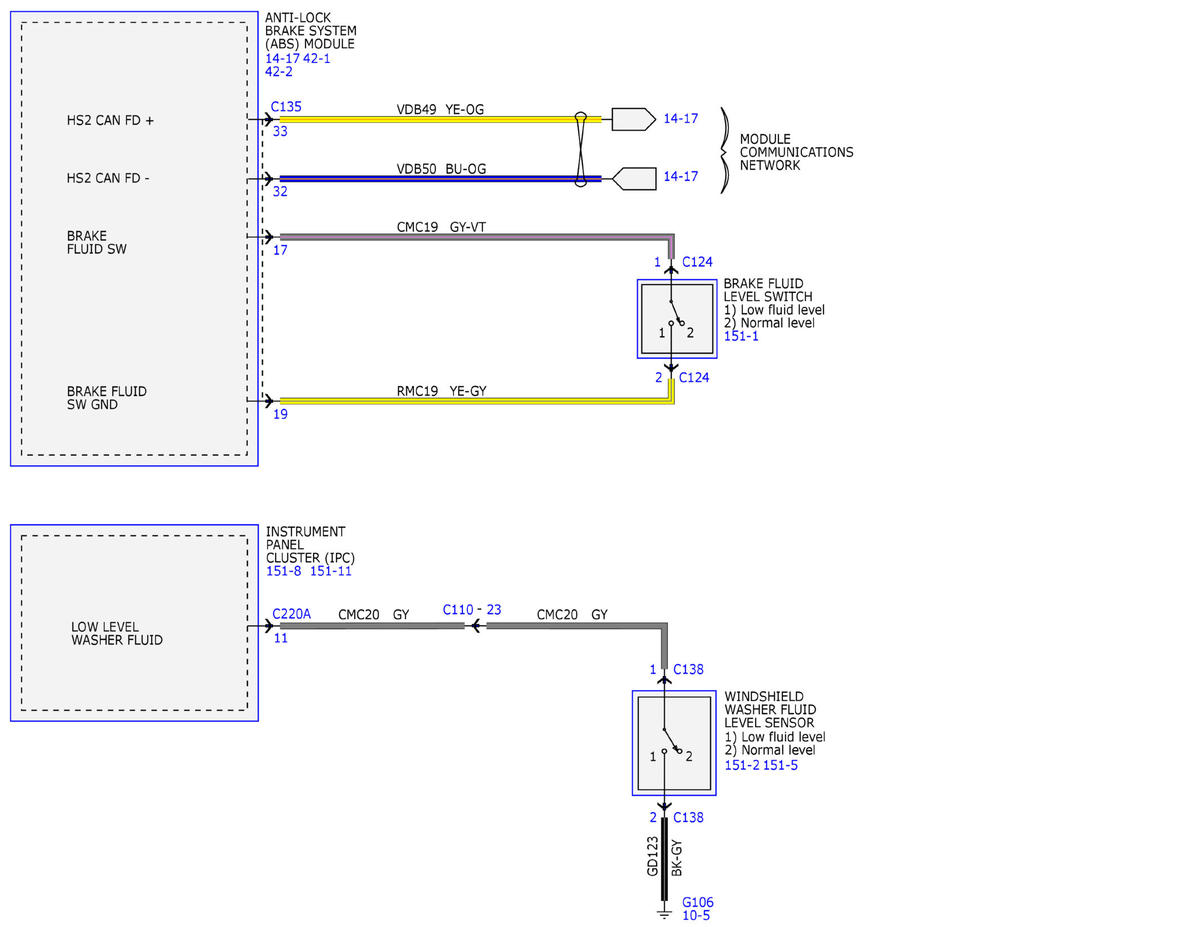

Fig 2: Intrument Cluster Wiring Diagram (2 Of 4)
GFDWR204452Courtesy of FORD MOTOR COMPANY

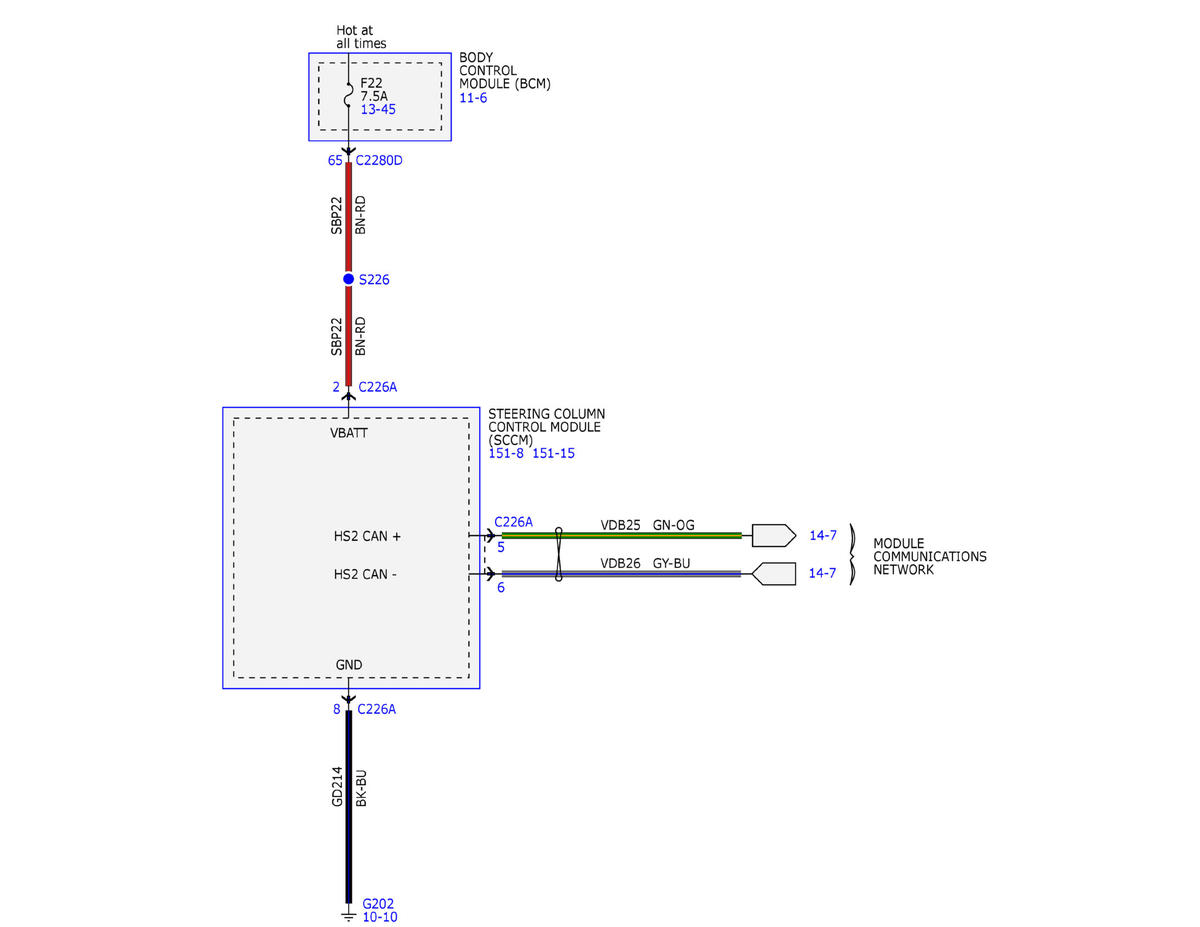

Fig 3: Intrument Cluster Wiring Diagram (3 Of 4)
GFDWR204453Courtesy of FORD MOTOR COMPANY

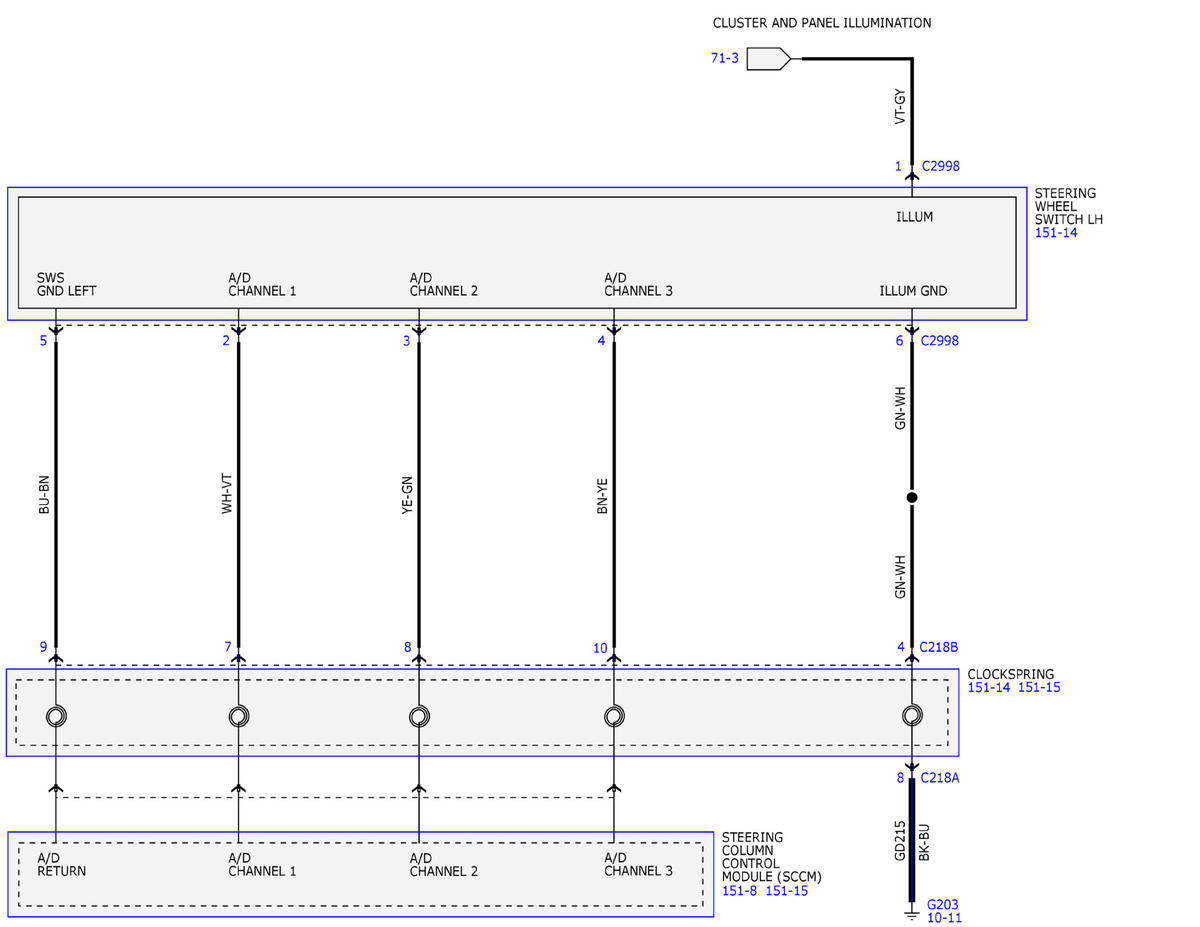

Fig 4: Intrument Cluster Wiring Diagram (4 Of 4)
GFDWR204454Courtesy of FORD MOTOR COMPANY
