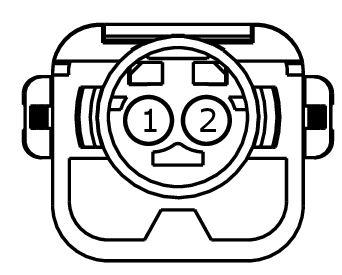

Connector End View C9018 - SIDE CURTAIN AIRBAG LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9018	SIDE CURTAIN AIRBAG LH	YE-BK	14K155	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR109 (BN-BU)	0.5	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE +	N/A
2	RR109 (BU-GN)	0.5	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1680

Service Part Number:

BU2Z-14S411-BMB

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Inflator - Safety Belt
• Module - Airbag
• Pretensioner - Seat Belt (Driver)
• Pretensioner - Seat Belt (Passenger)
• Resistor - Generic
• Sensor - Crash (Side Seat Airbag)
• Squib - Airbag (Driver)
• Squib - Airbag (Passenger)
