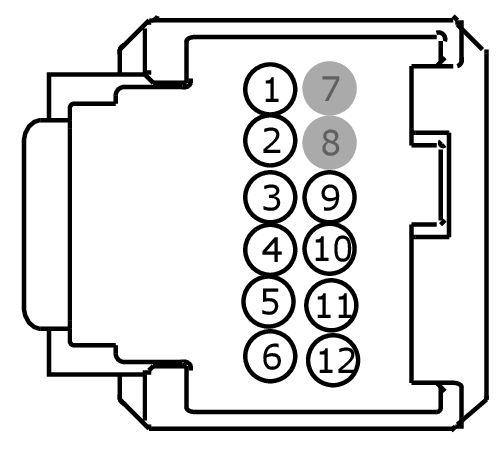

Connector End View C4816A - BATTERY ENERGY CONTROL MODULE (BECM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4816A	BATTERY ENERGY CONTROL MODULE (BECM)	BK	10B694	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
FU5T-14474-DB	Not Available
9U5T-14474-DB	DU2Z-14474-AA	0.64
FU5T-14474-LB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBX08 (RD)	0.75	FUSE - 146 OR CIRCUIT BREAKER	9U5T-14474-DB
2	SBX08 (RD-WH)	0.75	FUSE - 146 OR CIRCUIT BREAKER	9U5T-14474-DB
3	CYC03 (BN-GN)	0.75	CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY ENABLE (CONT_PWR_EN)	9U5T-14474-DB
4	CYD14 (GN-BN)	0.35	CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP)	9U5T-14474-DB
5	VDB04 (BU)	0.13	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	FU5T-14474-LB
5	VDB04 (BK-WH)	0.13	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	FU5T-14474-LB
6	VDB05 (BK)	0.13	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	FU5T-14474-LB
6	VDB05 (WH)	0.13	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	FU5T-14474-LB
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CR167 (YE-VT)	0.35	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	FU5T-14474-DB
10	RE481 (BU-GY)	0.35	SIGNAL RETURN	FU5T-14474-DB
11	GD909 (BK-WH)	0.75	GROUND	9U5T-14474-DB
12	GD909 (BK)	0.75	GROUND	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1401

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-SA

Gauge:

20

Pin material:

Tin

Cavities:

12
