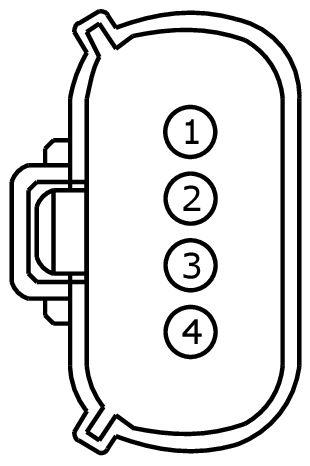

Connector End View C3808 - SECOND ROW SEATBELT BUCKLE RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3808	SECOND ROW SEATBELT BUCKLE RH	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR206 (BN)	0.5	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD	BU5T-14474-UA
2	RR172 (GN-VT)	0.5	CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES	BU5T-14474-UA
3	CR205 (WH-OG)	0.5	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 MIDDLE	BU5T-14474-UA
4	RR172 (GN-VT)	0.5	CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-925

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-TA

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• A/C Compressor Clutch
• Lamp - Headlamp - High/Low Beam
