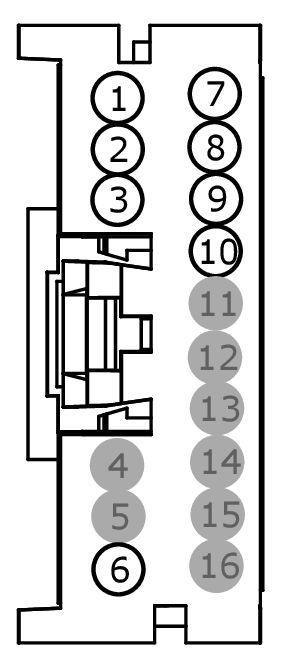

Connector End View C930 - OVERHEAD CONSOLE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C930	OVERHEAD CONSOLE	BK	14335	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
GU5T-14474-KA	LU2Z-14474-AA	0.50
JU5T-14474-AFA	LU2Z-14474-AA	0.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLN09 (YE-GN)	0.35	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	GU5T-14474-KA
2	VLN04 (VT-GY)	0.35	CTRL MOD. - IP/SWITCH ILLUMINATION	GU5T-14474-KA
3	CLN70 (BN-GN)	0.13	SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1	JU5T-14474-AFA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	GD234 (BK-VT)	0.35	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT	GU5T-14474-KA
7	CBP09 (VT-GY)	0.35	FUSE - 9 OR CIRCUIT BREAKER	GU5T-14474-KA
7	CR195 (YE-BU)	0.35	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	LHD	GU5T-14474-KA
8	CR190 (GY-BN)	0.35	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	GU5T-14474-KA
9	CR189 (BU-OG)	0.35	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	GU5T-14474-KA
10	VLN33 (GY-VT)	0.35	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	GU5T-14474-KA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

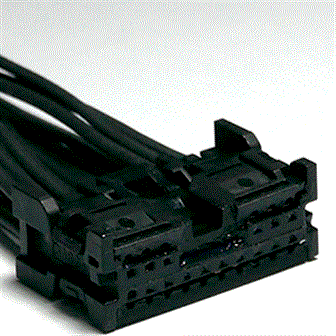

Pigtail Kit Part Number WPT-1643

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-UA

Gauge:

22

Pin material:

Tin (greased)

Cavities:

16

Vehicle Uses:

• Lamp - Dome/Map
• Switch - Seat (driver)
• Switch - Seat (passenger)
• Switch - Seat Passenger Side (2nd Row)
