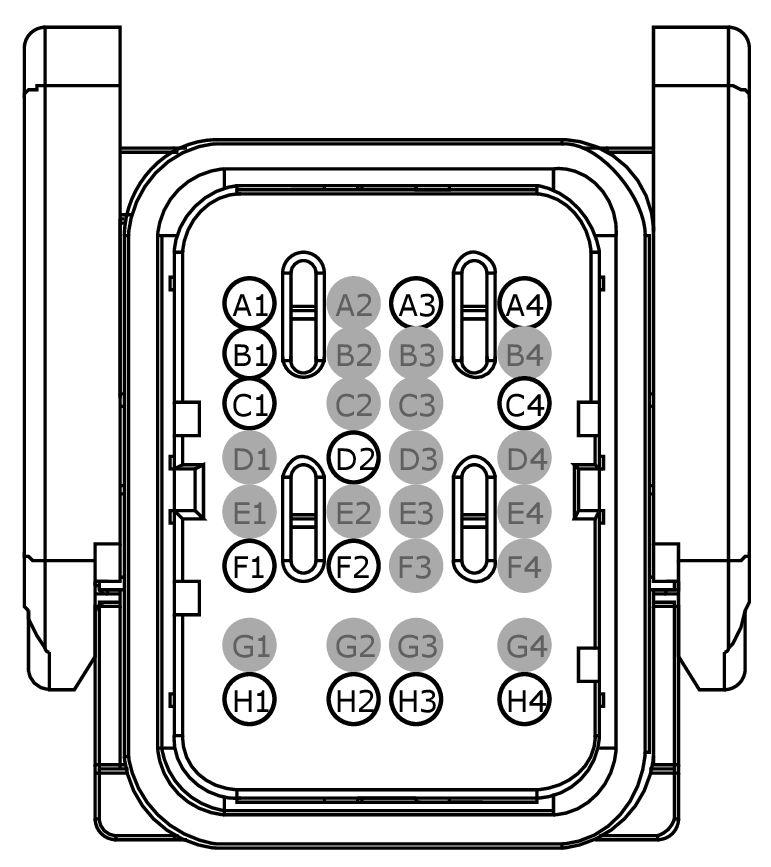

Connector End View C805 - REAR DOOR LATCH CONTROL MODULE RH [DCMH]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C805	REAR DOOR LATCH CONTROL MODULE RH [DCMH]	BK	14632	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
A1	VPE34 (GN-BU)	0.5	CTRL MOD. - WAKE UP	GU5T-14474-JA
A1	VPE34 (BK)	0.5	CTRL MOD. - WAKE UP	RHD	GU5T-14474-JA
A2	*	*	Not Used	N/A
A3	VDB07 (VT-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	GU5T-14474-JA
A3	VDB07 (BK)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	RHD	GU5T-14474-JA
A4	VDB06 (GY-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	GU5T-14474-JA
A4	VDB06 (BK)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	RHD	GU5T-14474-JA
B1	VPE43 (YE-GN)	0.5	CTRL MOD. - LIN	GU5T-14474-JA
B1	VPE43 (BK)	0.5	CTRL MOD. - LIN	RHD	GU5T-14474-JA
B2	*	*	Not Used	N/A
B3	*	*	Not Used	N/A
B4	*	*	Not Used	N/A
C1	RPE40 (BN-WH)	0.5	CTRL MOD. - SIGNAL RETURN	GU5T-14474-JA
C1	RPE40 (BK)	0.5	CTRL MOD. - SIGNAL RETURN	RHD	GU5T-14474-JA
C2	*	*	Not Used	N/A
C3	*	*	Not Used	N/A
C4	CPL39 (YE)	0.5	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR)	GU5T-14474-JA
C4	CPL39 (BK)	0.5	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR)	RHD	GU5T-14474-JA
D1	*	*	Not Used	N/A
D2	VPK47 (VT-GY)	0.5	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	GU5T-14474-JA
D2	VPK47 (BK)	0.5	SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA	RHD	GU5T-14474-JA
D3	*	*	Not Used	N/A
D4	*	*	Not Used	N/A
E1	*	*	Not Used	N/A
E2	*	*	Not Used	N/A
E3	*	*	Not Used	N/A
E4	*	*	Not Used	N/A
F1	CR193 (GN)	0.5	CTRL MOD. - ELATCH REAR EVENT NOTIFICATION SIGNAL	GU5T-14474-JA
F1	CR193 (BK)	0.5	CTRL MOD. - ELATCH REAR EVENT NOTIFICATION SIGNAL	RHD	GU5T-14474-JA
F2	VPE40 (YE-GY)	0.5	CTRL MOD. - SIGNAL FEED	GU5T-14474-JA
F2	VPE40 (BK)	0.5	CTRL MOD. - SIGNAL FEED	RHD	GU5T-14474-JA
F3	*	*	Not Used	N/A
F4	*	*	Not Used	N/A
G1	*	*	Not Used	N/A
G2	*	*	Not Used	N/A
G3	*	*	Not Used	N/A
G4	*	*	Not Used	N/A
H1	SBBD6 (VT-RD)	2	FUSE - 136 OR CIRCUIT BREAKER	DU5T-14474-JA
H1	SBBD6 (BK)	2	FUSE - 136 OR CIRCUIT BREAKER	RHD	DU5T-14474-JA
H2	VPE12 (GY-OG)	1.5	REAR LATCH RELEASE MOTOR +	DU5T-14474-JA
H2	VPE12 (BK)	1.5	REAR LATCH RELEASE MOTOR +	RHD	DU5T-14474-JA
H3	VPE13 (WH)	1.5	REAR LATCH RELEASE MOTOR -	DU5T-14474-JA
H3	VPE13 (BK)	1.5	REAR LATCH RELEASE MOTOR -	RHD	DU5T-14474-JA
H4	GD383 (BK-WH)	1.5	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	DU5T-14474-JA
H4	GD383 (BK)	1.5	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	RHD	DU5T-14474-JA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1733

Service Part Number:

NU2Z-14S411-AGA

Gauge:

16 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Electronic Door Latch
Module - On Board Diagnostic Control
