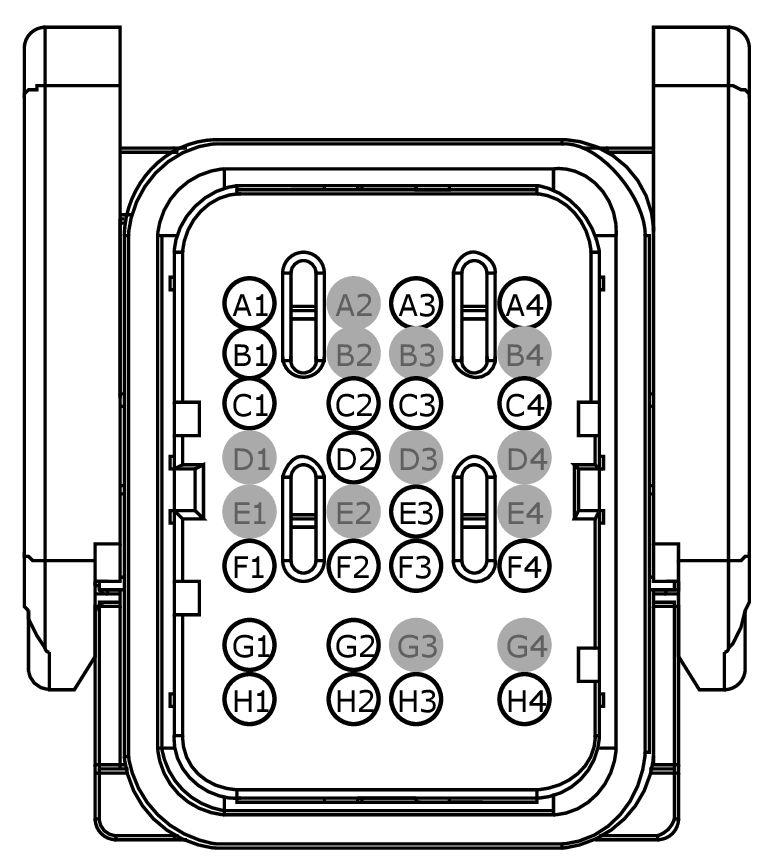

Connector End View C609 - FRONT DOOR LATCH CONTROL MODULE RH [DCMF]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C609	FRONT DOOR LATCH CONTROL MODULE RH [DCMF]	BK	14630/14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
A1	CPE44 (VT-BN)	0.35	CTRL MOD. - WAKE UP	GU5T-14474-JA
A1	CPE44 (BK)	0.35	CTRL MOD. - WAKE UP	RHD	GU5T-14474-JA
A2	*	*	Not Used	N/A
A3	VDB07 (BK)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	RHD	GU5T-14474-HA
A3	VDB07 (VT-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	GU5T-14474-HA
A4	VDB06 (GY-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	GU5T-14474-HA
A4	VDB06 (BK)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	RHD	GU5T-14474-HA
B1	VPE41 (BK)	0.35	CTRL MOD. - LIN BUS	RHD	GU5T-14474-JA
B1	VPE41 (BU-GN)	0.35	CTRL MOD. - LIN BUS	GU5T-14474-JA
B2	*	*	Not Used	N/A
B3	*	*	Not Used	N/A
B4	*	*	Not Used	N/A
C1	RPE38 (VT-GY)	0.5	SENSOR RTN	GU5T-14474-JA
C1	RPE37 (BK)	0.5	SENSOR RTN	RHD	GU5T-14474-JA
C2	CPL87 (BK)	0.35	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	RHD	GU5T-14474-HA
C2	CPL88 (BU-BN)	0.35	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR PASSENGER	GU5T-14474-HA
C3	RPE15 (BK)	0.5	DOUBLE LOCK SENSOR RETURN	RHD	GU5T-14474-JA
C4	CPL31 (BK)	0.5	SWITCH - LATCH PASSENGER # AJAR	RHD	GU5T-14474-JA
C4	CPL31 (WH)	0.5	SWITCH - LATCH PASSENGER # AJAR	GU5T-14474-JA
D1	*	*	Not Used	N/A
D2	VPK40 (WH-OG)	0.5	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	GU5T-14474-JA
D2	VPK40 (BK)	0.5	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	RHD	GU5T-14474-JA
D3	*	*	Not Used	N/A
D4	*	*	Not Used	N/A
E1	*	*	Not Used	N/A
E2	*	*	Not Used	N/A
E3	VPE15 (BK)	0.5	DOUBLE LOCK SENSOR FEED	RHD	GU5T-14474-JA
E4	*	*	Not Used	N/A
F1	CR191 (BK)	0.5	CTRL MOD. - ELATCH EVENT NOTIFICATION SIGNAL (ENS)	RHD	GU5T-14474-JA
F1	CR191 (BN-WH)	0.5	CTRL MOD. - ELATCH EVENT NOTIFICATION SIGNAL (ENS)	GU5T-14474-JA
F2	VPE38 (BU-GY)	0.5	DOOR LATCH SENSOR FEED	GU5T-14474-JA
F2	VPE37 (BK)	0.5	DOOR LATCH SENSOR FEED	RHD	GU5T-14474-JA
F3	CPL43 (BK)	0.35	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	RHD	GU5T-14474-HA
F3	CPL16 (YE-GN)	0.35	SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK	GU5T-14474-HA
F4	CPL15 (BU-GY)	0.35	SWITCH - TRIM DOOR LOCK PASSENGER # LOCK	GU5T-14474-HA
F4	CPL42 (BK)	0.35	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	RHD	GU5T-14474-HA
G1	VPE09 (BK)	1.5	DOUBLE LOCK MOTOR -	RHD	DU5T-14474-JA
G2	VPE08 (BK)	1.5	DOUBLE LOCK MOTOR +	RHD	DU5T-14474-JA
G3	*	*	Not Used	N/A
G4	*	*	Not Used	N/A
H1	SBB82 (YE-RD)	1.5	FUSE - 82 OR CIRCUIT BREAKER	DU5T-14474-JA
H1	SBB80 (BK)	1.5	FUSE - 80 OR CIRCUIT BREAKER	RHD	DU5T-14474-JA
H2	VPE04 (BK)	1.5	DOOR LATCH MOTOR +	RHD	DU5T-14474-JA
H2	VPE06 (VT-WH)	1.5	DOOR LATCH MOTOR +	DU5T-14474-JA
H3	VPE07 (YE)	1.5	DOOR LATCH MOTOR -	DU5T-14474-JA
H3	VPE05 (BK)	1.5	DOOR LATCH MOTOR -	RHD	DU5T-14474-JA
H4	GD238 (BK)	1.5	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	DU5T-14474-JA
H4	GD238 (BK-WH)	1.5	GROUND - COWL SIDE/PILLAR A RIGHT	DU5T-14474-JA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1733

Service Part Number:

NU2Z-14S411-AGA

Gauge:

16 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Electronic Door Latch
Module - On Board Diagnostic Control
