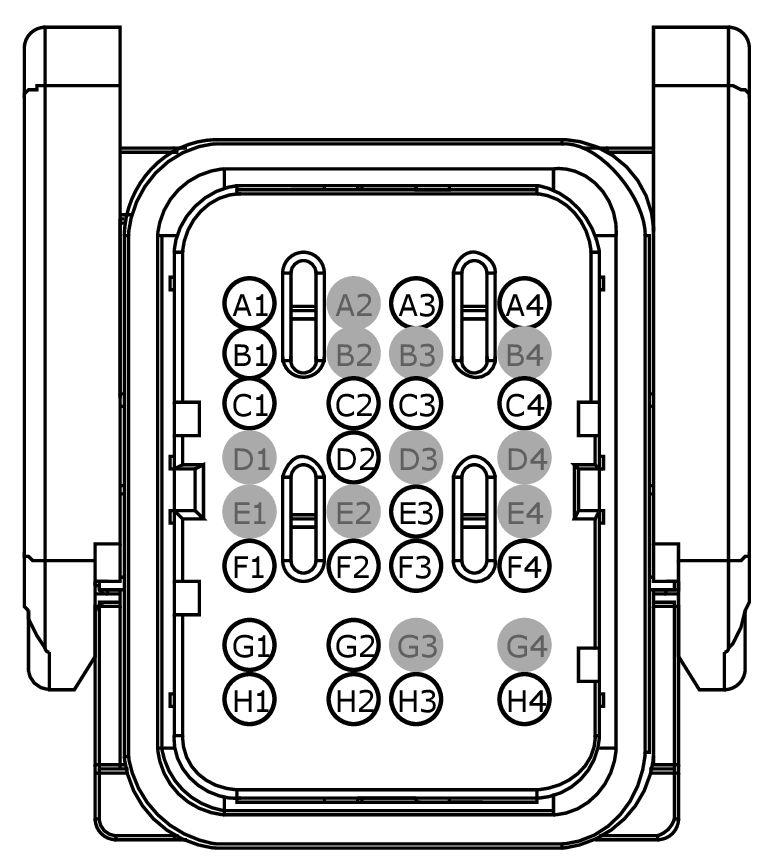

Connector End View C525 - FRONT DOOR LATCH CONTROL MODULE LH [DCME]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C525	FRONT DOOR LATCH CONTROL MODULE LH [DCME]	BK	14630/14631	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
A1	CPE43 (BK)	0.35	WAKE UP SIGNAL	RHD	GU5T-14474-JA
A1	CPE43 (GN-VT)	0.35	WAKE UP SIGNAL	GU5T-14474-JA
A2	*	*	Not Used	N/A
A3	VDB07 (VT-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	GU5T-14474-HA
A3	VDB07 (BK)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	RHD	GU5T-14474-HA
A4	VDB06 (BK)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	RHD	GU5T-14474-HA
A4	VDB06 (GY-OG)	0.5	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	GU5T-14474-HA
B1	VPE44 (GN-WH)	0.35	LIN BUS	GU5T-14474-JA
B1	VPE44 (BK)	0.35	LIN BUS	RHD	GU5T-14474-JA
B2	*	*	Not Used	N/A
B3	*	*	Not Used	N/A
B4	*	*	Not Used	N/A
C1	RPE38 (BK)	0.5	SENSOR RETURN	RHD	GU5T-14474-JA
C1	RPE37 (BN-BU)	0.5	SENSOR RETURN	GU5T-14474-JA
C2	CPL87 (BN)	0.35	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	LHD	GU5T-14474-HA
C2	CPL88 (BK)	0.35	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR PASSENGER	GU5T-14474-HA
C3	RPE16 (BK)	0.5	DOUBLE LOCK SENSOR RETURN	GU5T-14474-JA
C4	VPK39 (BK)	0.5	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	GU5T-14474-JA
C4	CPL26 (GN-VT)	0.5	SWITCH - LATCH DRIVER # AJAR	LHD	GU5T-14474-JA
D1	*	*	Not Used	N/A
D2	VPK39 (GN-VT)	0.5	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	GU5T-14474-JA
D2	CPL26 (BK)	0.5	SWITCH - LATCH DRIVER # AJAR	RHD	GU5T-14474-JA
D3	*	*	Not Used	N/A
D4	*	*	Not Used	N/A
E1	*	*	Not Used	N/A
E2	*	*	Not Used	N/A
E3	VPE16 (BK)	0.5	DOUBLE LOCK SENSOR FEED	GU5T-14474-JA
E4	*	*	Not Used	N/A
F1	CR191 (BK)	0.5	CTRL MOD. - ELATCH EVENT NOTIFICATION SIGNAL (ENS)	RHD	GU5T-14474-JA
F1	CR191 (BN-WH)	0.5	CTRL MOD. - ELATCH EVENT NOTIFICATION SIGNAL (ENS)	GU5T-14474-JA
F2	VPE37 (WH-OG)	0.5	SENSOR FEED	GU5T-14474-JA
F2	VPE38 (BK)	0.5	SENSOR FEED	RHD	GU5T-14474-JA
F3	CPL16 (BK)	0.35	SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK	RHD	GU5T-14474-HA
F3	CPL43 (VT-GY)	0.35	SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK	GU5T-14474-HA
F4	CPL42 (GY-YE)	0.35	SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK	GU5T-14474-HA
F4	CPL15 (BK)	0.35	SWITCH - TRIM DOOR LOCK PASSENGER # LOCK	RHD	GU5T-14474-HA
G1	VPE17 (BK)	1.5	DOUBLE LOCK MOTOR -	RHD	DU5T-14474-JA
G2	VPE18 (BK)	1.5	DOUBLE LOCK MOTOR -	RHD	DU5T-14474-JA
G3	*	*	Not Used	N/A
G4	*	*	Not Used	N/A
H1	SBB82 (BK)	1.5	FUSE - 82 OR CIRCUIT BREAKER	EUROPE RHD	DU5T-14474-JA
H1	SBB80 (VT-RD)	1.5	FUSE - 80 OR CIRCUIT BREAKER	DU5T-14474-JA
H2	VPE04 (WH-GN)	1.5	MOTOR +	DU5T-14474-JA
H2	VPE06 (BK)	1.5	MOTOR +	RHD	DU5T-14474-JA
H3	VPE07 (BK)	1.5	MOTOR -	RHD	DU5T-14474-JA
H3	VPE05 (VT-OG)	1.5	MOTOR -	DU5T-14474-JA
H4	GD234 (BK-VT)	1.5	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT	DU5T-14474-JA
H4	GD234 (BK)	1.5	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT	RHD	DU5T-14474-JA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1733

Service Part Number:

NU2Z-14S411-AGA

Gauge:

16 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Electronic Door Latch
Module - On Board Diagnostic Control
