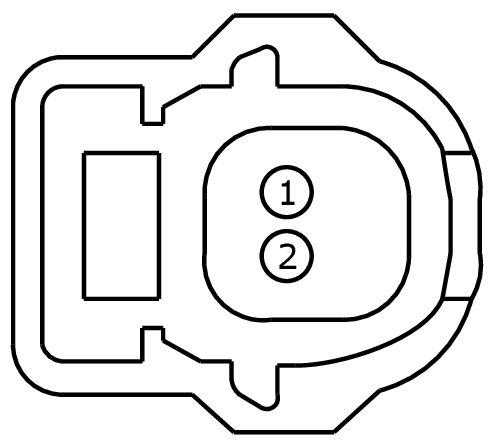

Connector End View C3212 - SECOND ROW SIDE IMPACT SENSOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3212	SECOND ROW SIDE IMPACT SENSOR RH	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
EU5T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR220 (VT-OG)	0.5	SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE	EU5T-14474-CA
2	RR134 (BN-BU)	0.5	CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE -	EU5T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Crash (Engine Compartment)
• Sensor - Seat Track Position
• Sensor - Side Impact
• Solenoid - Down Shift
• Solenoid - Torque Control Coupling
• Valve - Heated PCV
• Valve - Heater Core Shut Off
• Valve - Transmission Fluid Warmer
