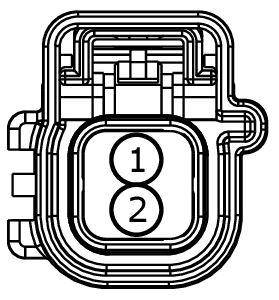

Connector End View C3056 - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3056 | INLINE | YE | 14D23014C687 | Not Available | ||||
MALE
Harness
14D230
FEMALE
Harness
14C687
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14421-TA | Not Available | |
| 97BG-14421-AHA | Not Available |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (VT-GY) | 0.5 | EU5T-14421-TA | |||
| 1 | CR106 (VT-GY) | 0.5 | 97BG-14421-AHA | |||
| 2 | RR106 (YE-OG) | 0.5 | 97BG-14421-AHA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RR106 (YE-OG) | 0.5 | N/A | |||
