Connector End View C3051 - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3051 | INLINE | BK | 14D23214D231 | See Below | ||||

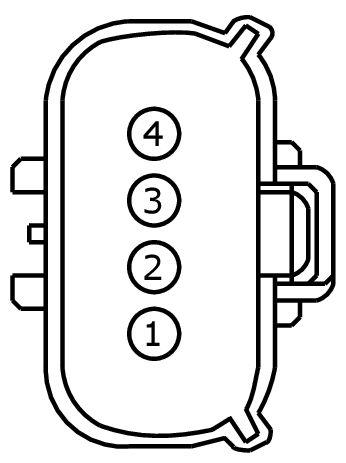

MALE
Harness
14D232

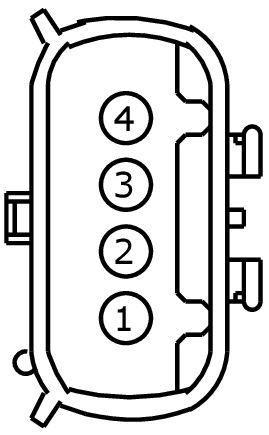

FEMALE
Harness
14D231
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6U5T-14421-BA | Not Available | |
| 7U5T-14474-SA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR105 (GN-BU) | 0.5 | N/A | |||
| 2 | RR105 (GY-YE) | 0.5 | N/A | |||
| 3 | CR1B2 (GY-OG) | 0.5 | N/A | |||
| 3 | LR142 (YE-BU) | 0.5 | 6U5T-14421-BA | |||
| 4 | LR142 (YE-BU) | 0.5 | 6U5T-14421-BA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR105 (GN-BU) | 0.5 | 7U5T-14474-SA | |||
| 2 | RR105 (GY-YE) | 0.5 | 7U5T-14474-SA | |||
| 3 | CR1B2 (GY-OG) | 0.5 | 7U5T-14474-SA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1427
Service Part Number:
9U2Z-14S411-MB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Switch - Seatbelt
Pigtail Kit Part Number WPT-940
Service Part Number:
9U2Z-14S411-MA
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
