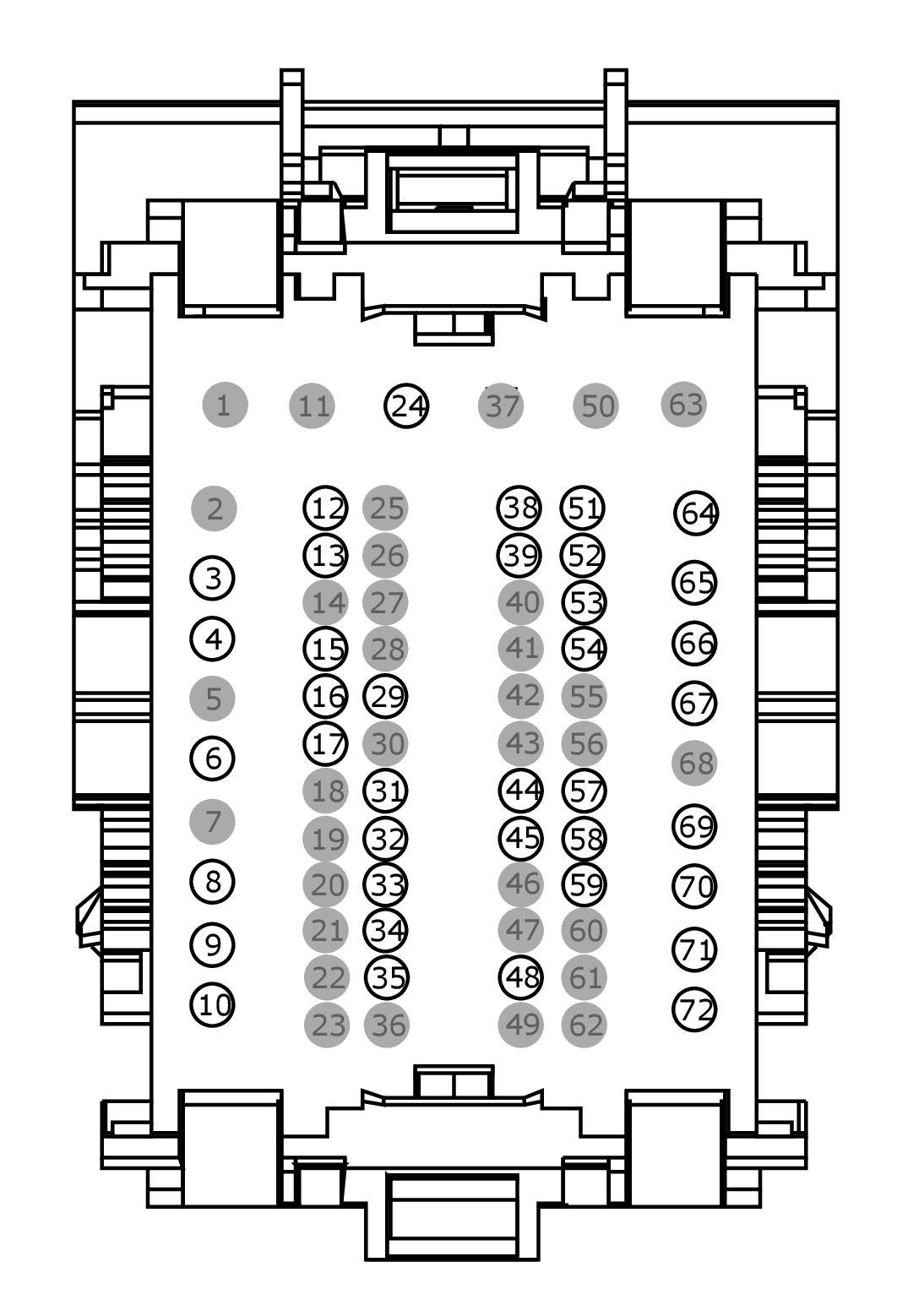

Connector End View C2280F - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280F	BODY CONTROL MODULE (BCM)	GY	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-AAB	DU2Z-14474-DA	1.50
EU5T-14474-FA	EU2Z-14474-AB	2.80
97BG-14474-ABB	DU2Z-14474-DA	1.50
8U5T-14474-BB	DU2Z-14474-CAFC	0.64
DU5T-14474-EAB	DU2Z-14474-CAFC	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	CBP03 (GY)	0.5	FUSE - 3 OR CIRCUIT BREAKER	97BG-14474-AAB
4	CBX07 (GN-RD)	0.5	POWER - CTRL MOD. AMBIENT LIGHTING	97BG-14474-AAB
5	*	*	Not Used	N/A
6	CLS23 (GY-OG)	0.5	CTRL MOD. - TURN LAMP LEFT REAR	97BG-14474-AAB
7	*	*	Not Used	N/A
8	GD309 (BK-YE)	0.75	GROUND - CROSS MEMBER MIDDLE LEFT # 2ND POINT	97BG-14474-ABB
9	GD309 (BK-YE)	0.75	GROUND - CROSS MEMBER MIDDLE LEFT # 2ND POINT	97BG-14474-ABB
10	CPL10 (GN-BN)	0.35	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE	97BG-14474-AAB
11	*	*	Not Used	N/A
12	CLS51 (WH-GN)	0.5	CTRL MOD. - STOP/TURN LEFT OUTBOARD	8U5T-14474-BB
13	CR167 (YE-VT)	0.35	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	8U5T-14474-BB
14	*	*	Not Used	N/A
15	CPK28 (WH-GN)	0.35	CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION	DU5T-14474-EAB
16	CPL44 (YE-OG)	0.35	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	8U5T-14474-BB
17	VLN33 (GY-VT)	0.5	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	8U5T-14474-BB
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	GD239 (BK-YE)	2.5	GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT	EU5T-14474-FA
24	GD233 (BK)	2.5	GROUND - COWL SIDE/PILLAR A LEFT	EU5T-14474-FA
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	CPL26 (GN-VT)	0.35	SWITCH - LATCH DRIVER # AJAR	8U5T-14474-BB
29	VPK39 (GN-VT)	0.35	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	RHD	8U5T-14474-BB
30	*	*	Not Used	N/A
31	CPL45 (BN)	0.35	SWITCH - LIFTGATE/DECKLID RELEASE	DU5T-14474-EAB
32	CPL31 (WH)	0.35	SWITCH - LATCH PASSENGER # AJAR	8U5T-14474-BB
33	CPL36 (GN)	0.35	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	8U5T-14474-BB
34	CPL39 (YE)	0.35	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR)	8U5T-14474-BB
35	CPK29 (GY-BU)	0.35	SWITCH - KEYLESS KEYPAD LINE A	DU5T-14474-EAB
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	CPK31 (YE-GN)	0.35	SWITCH - KEYLESS KEYPAD LINE C	DU5T-14474-EAB
39	CPK30 (VT-GN)	0.35	SWITCH - KEYLESS KEYPAD LINE B	DU5T-14474-EAB
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	CLS55 (GN-BU)	0.35	LAMP - TURN REAR LEFT # SIGNAL OUT	8U5T-14474-BB
45	CLS54 (BU-OG)	0.35	LAMP - TURN REAR RIGHT # SIGNAL OUT	8U5T-14474-BB
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	CLS09 (WH-OG)	0.5	CTRL MOD. - PARK REAR RIGHT	8U5T-14474-BB
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
51	CLS53 (GY-VT)	0.5	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	8U5T-14474-BB
52	CLS05 (BU-GY)	0.5	CTRL MOD. - PARK	8U5T-14474-BB
53	CLS08 (VT-GN)	0.5	CTRL MOD. - PARK REAR LEFT	8U5T-14474-BB
54	VDN02 (GN-OG)	0.35	CTRL MOD. - LIN BUS # BCM 2	DU5T-14474-EAB
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	CLS17 (YE-GY)	0.5	CTRL MOD. - STOP HIGH MOUNT	8U5T-14474-BB
58	VDN16 (BU-BN)	0.35	CTRL MOD. - LIN BUS # BCM 8	DU5T-14474-EAB
59	VDN14 (YE-VT)	0.35	CTRL MOD. - LIN BUS # 14	DU5T-14474-EAB
60	*	*	Not Used	N/A
61	*	*	Not Used	N/A
62	*	*	Not Used	N/A
63	*	*	Not Used	N/A
64	CRT34 (VT-OG)	0.5	RELAY - ANTI-THEFT/SECURITY HORN	97BG-14474-AAB
65	CLS27 (GN-OG)	0.5	CTRL MOD. - TURN LAMP RIGHT REAR	97BG-14474-AAB
66	CLS10 (GN-BN)	0.5	CTRL MOD. - REVERSE LEFT OR COMMON	97BG-14474-AAB
67	CLS37 (WH-BU)	0.5	CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON)	97BG-14474-AAB
68	*	*	Not Used	N/A
69	SBP12 (GN-RD)	0.5	FUSE - 12 OR CIRCUIT BREAKER	97BG-14474-AAB
70	SBP19 (BU-RD)	0.5	FUSE - 19 OR CIRCUIT BREAKER	97BG-14474-AAB
71	SBP18 (YE-RD)	0.5	FUSE - 18 OR CIRCUIT BREAKER	97BG-14474-AAB
72	CLN09 (YE-GN)	0.5	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	97BG-14474-AAB
