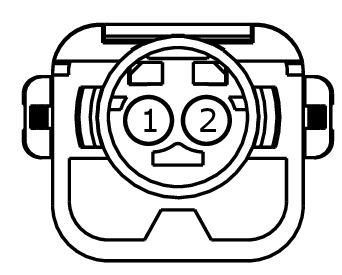

Connector End View C324B - SEATBELT ASSEMBLY LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C324B	SEATBELT ASSEMBLY LH	YE	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RR1B4 (GY-VT)	0.5	CTRL MOD. - SEAT BELT PRETENSIONER ANCHOR FRONT PASSENGER OUTBOARD -	N/A
2	CR1B4 (GY-YE)	0.5	CTRL MOD. - SEAT BELT PRETENSIONER ANCHOR FRONT PASSENGER OUTBOARD +	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1684

Service Part Number:

BU2Z-14S411-BGB

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Load Limiting Retractor
• Pretensioner - Seat Belt (Driver)
• Pretensioner - Seat Belt (Passenger)
• Squib - Airbag (Passenger)
