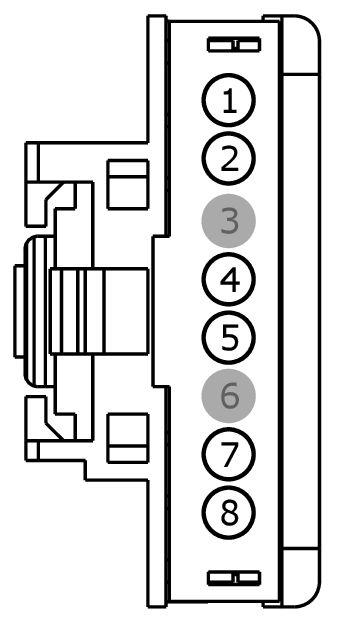

Connector End View C256 - PASSENGER AIRBAG

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C256	PASSENGER AIRBAG	YE	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
1L2T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR103 (GY-BU)	0.5	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	1L2T-14474-CA
2	RR103 (VT-GN)	0.5	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	1L2T-14474-CA
3	*	*	Not Used	N/A
4	CR104 (YE-GY)	0.5	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	1L2T-14474-CA
5	RR104 (WH-BU)	0.5	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	1L2T-14474-CA
6	*	*	Not Used	N/A
7	CR144 (GY-OG)	0.5	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +	1L2T-14474-CA
8	RR144 (VT-GN)	0.5	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -	1L2T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1397

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-DB

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Clockspring
• Module - Power Steering
