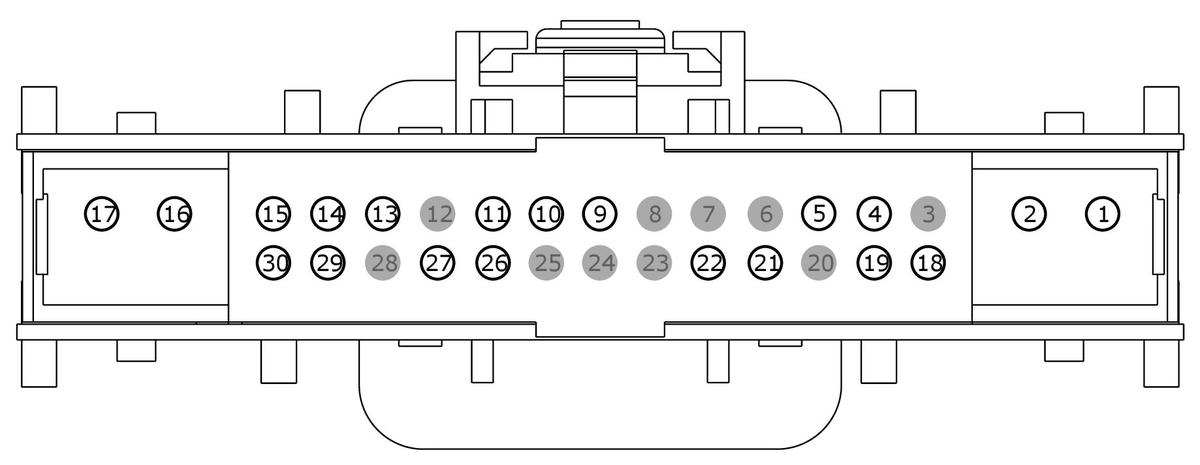

Connector End View C228B - HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C228B	HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
7C3T-14474-LA	DU2Z-14474-DA	1.50
9U5T-14474-DB	DU2Z-14474-AA	0.64
7C3T-14474-KA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB39 (WH-RD)	1.5	FUSE - 39 OR CIRCUIT BREAKER	7C3T-14474-LA
2	SBB39 (WH-RD)	1.5	FUSE - 39 OR CIRCUIT BREAKER	7C3T-14474-LA
3	*	*	Not Used	N/A
4	VH409 (WH)	0.5	SENSOR - DISCHARGE TEMP. # LEFT	9U5T-14474-DB
5	VH410 (GY-BU)	0.5	SENSOR - DISCHARGE TEMP. # LEFT 2ND	9U5T-14474-DB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VH470 (WH-OG)	0.35	SENSOR - FRONT INSIDE CAR TEMP. 3	9U5T-14474-DB
10	VH411 (VT-GN)	0.5	SENSOR - DISCHARGE TEMP. # RIGHT	9U5T-14474-DB
11	VH412 (YE-GY)	0.5	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	9U5T-14474-DB
12	*	*	Not Used	N/A
13	CH212 (BU-OG)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS)	9U5T-14474-DB
14	CH213 (BN-GN)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)	9U5T-14474-DB
15	RHS10 (BU-OG)	0.35	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	LHD	9U5T-14474-DB
15	RHS05 (YE-VT)	0.35	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	RHD	9U5T-14474-DB
16	CHS02 (YE-BU)	0.75	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	LHD	7C3T-14474-KA
16	CHS07 (GY-BU)	0.75	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	RHD	7C3T-14474-KA
17	CHS02 (YE-BU)	0.75	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	RHD	7C3T-14474-KA
17	CHS07 (GY-BU)	0.75	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	LHD	7C3T-14474-KA
18	VH441 (WH-BN)	0.35	SENSOR - DOOR POSITION TEMP. RIGHT	9U5T-14474-DB
19	VH413 (WH-BU)	0.35	SENSOR - HUMIDITY	9U5T-14474-DB
20	*	*	Not Used	N/A
21	VH416 (VT-GY)	0.35	SENSOR - SUN LOAD # LEFT	9U5T-14474-DB
22	VH417 (YE-OG)	0.35	SENSOR - SUN LOAD # RIGHT	9U5T-14474-DB
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	CR189 (BU-OG)	0.35	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	9U5T-14474-DB
27	VH469 (GN-BN)	0.35	SENSOR - FRONT INSIDE CAR TEMP. 2	9U5T-14474-DB
28	*	*	Not Used	N/A
29	VH414 (GN-BU)	0.35	SENSOR - INCAR TEMP.	9U5T-14474-DB
30	RHS05 (YE-VT)	0.5	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	9U5T-14474-DB
30	RHS10 (BU-OG)	0.5	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	9U5T-14474-DB
