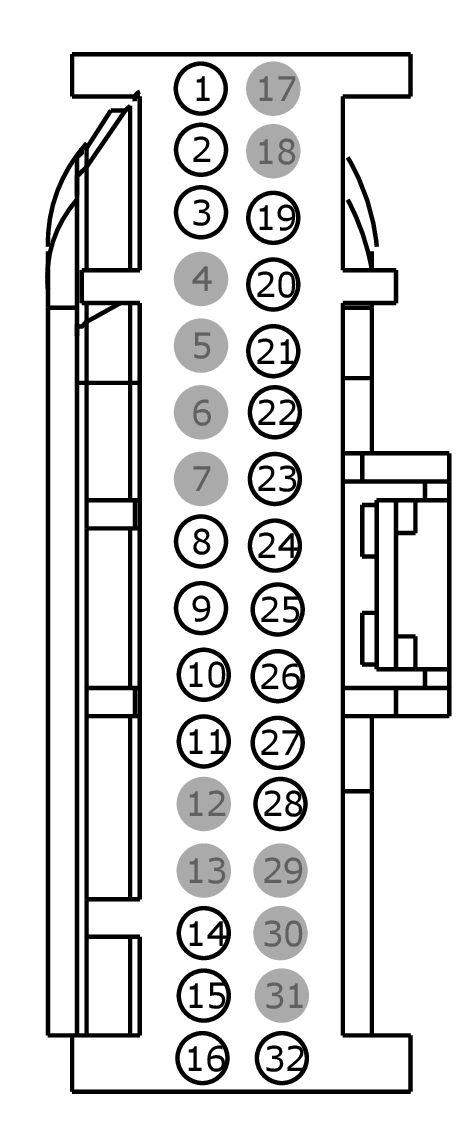

Connector End View C228A - HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C228A	HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD216 (BK-VT)	0.5	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-DB
2	RH111 (GY-BU)	0.5	CTRL MOD. - CLIMATE # GENERIC VREF RETURN	9U5T-14474-DB
3	LH111 (BN-WH)	0.5	CTRL MOD. - CLIMATE # GENERIC VREF	9U5T-14474-DB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CH239 (BU-WH)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS)	9U5T-14474-DB
9	CH238 (YE-OG)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS)	9U5T-14474-DB
10	VH440 (BU-BN)	0.35	SENSOR - DOOR POSITION TEMP. LEFT	9U5T-14474-DB
11	CH123 (VT-GN)	0.35	CTRL MOD. - BLOWER MOTOR RELAY	9U5T-14474-DB
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CH433 (BU-GY)	0.5	DEFROST CONTROL	9U5T-14474-DB
15	CH133 (YE-OG)	0.5	DEFROST INDICATOR	9U5T-14474-DB
16	CR190 (GY-BN)	0.35	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	9U5T-14474-DB
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VH438 (GN-VT)	0.35	SENSOR - DOOR POSITION RECIRC.	9U5T-14474-DB
20	VDB06 (GY-OG)	0.35	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	9U5T-14474-DB
21	VDB07 (VT-OG)	0.35	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	9U5T-14474-DB
22	VH406 (VT-BN)	0.5	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	9U5T-14474-DB
23	CH203 (GN-BN)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS)	9U5T-14474-DB
24	CH202 (BU-GN)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS)	9U5T-14474-DB
25	VH436 (YE-VT)	0.35	SENSOR - DOOR POSITION DEFROST	9U5T-14474-DB
26	VH101 (WH-VT)	0.35	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL	9U5T-14474-DB
27	CH208 (GN-OG)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	9U5T-14474-DB
28	CH207 (BU-GY)	0.35	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	9U5T-14474-DB
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	SBP21 (GY-RD)	0.35	FUSE - 21 OR CIRCUIT BREAKER	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1512

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-DA

Gauge:

20

Pin material:

Silver

Cavities:

32

Vehicle Uses:

• Module - Body Control
