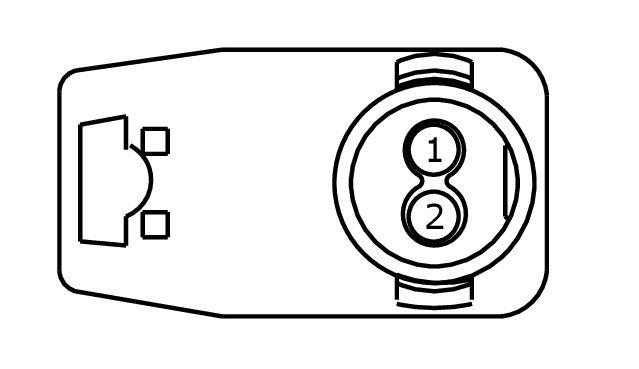

Connector End View C216B - DRIVER AIRBAG
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C216B | DRIVER AIRBAG | YE | PIA | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR102 (BU) | * | DRIVER AIRBAG 2 + | N/A | ||||
| 2 | RR102 (WH) | * | DRIVER AIRBAG 2 - | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1467
Service Part Number:
BU2Z-14S411-BKB
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
Pigtail Kit Part Number WPT-1227
Service Part Number:
BU2Z-14S411-BKA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
Pigtail Kit Part Number WPT-1681
Service Part Number:
BU2Z-14S411-BKC
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Inflator - Safety Belt
- Load Limiting Retractor
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Sensor - Crash (Side Seat Airbag)
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
