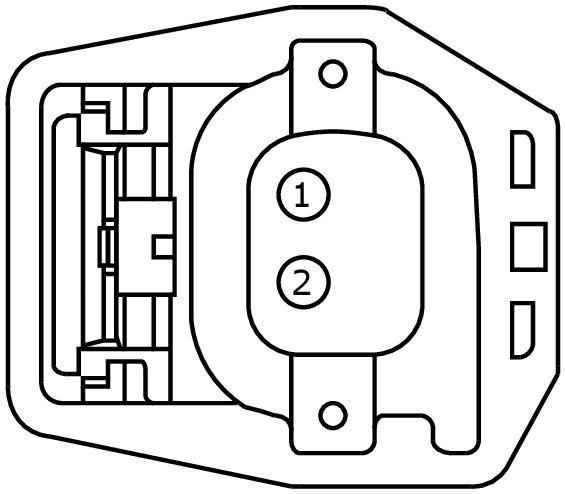

Connector End View C138 - WINDSHIELD WASHER FLUID LEVEL SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C138 | WINDSHIELD WASHER FLUID LEVEL SENSOR | DK GY | 14290 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ADA | LU2Z-14474-CA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC20 (GY) | 0.5 | SWITCH - LOW LEVEL WASHER FLUID | 97BG-14474-ADA | ||||
| 2 | GD123 (BK-GY) | 0.5 | GROUND - FENDER FRONT RIGHT | 97BG-14474-ADA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1748
Service Part Number:
NU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Exhaust Gas Temperature
- Sensor - Washer Fluid level
