Power Windows

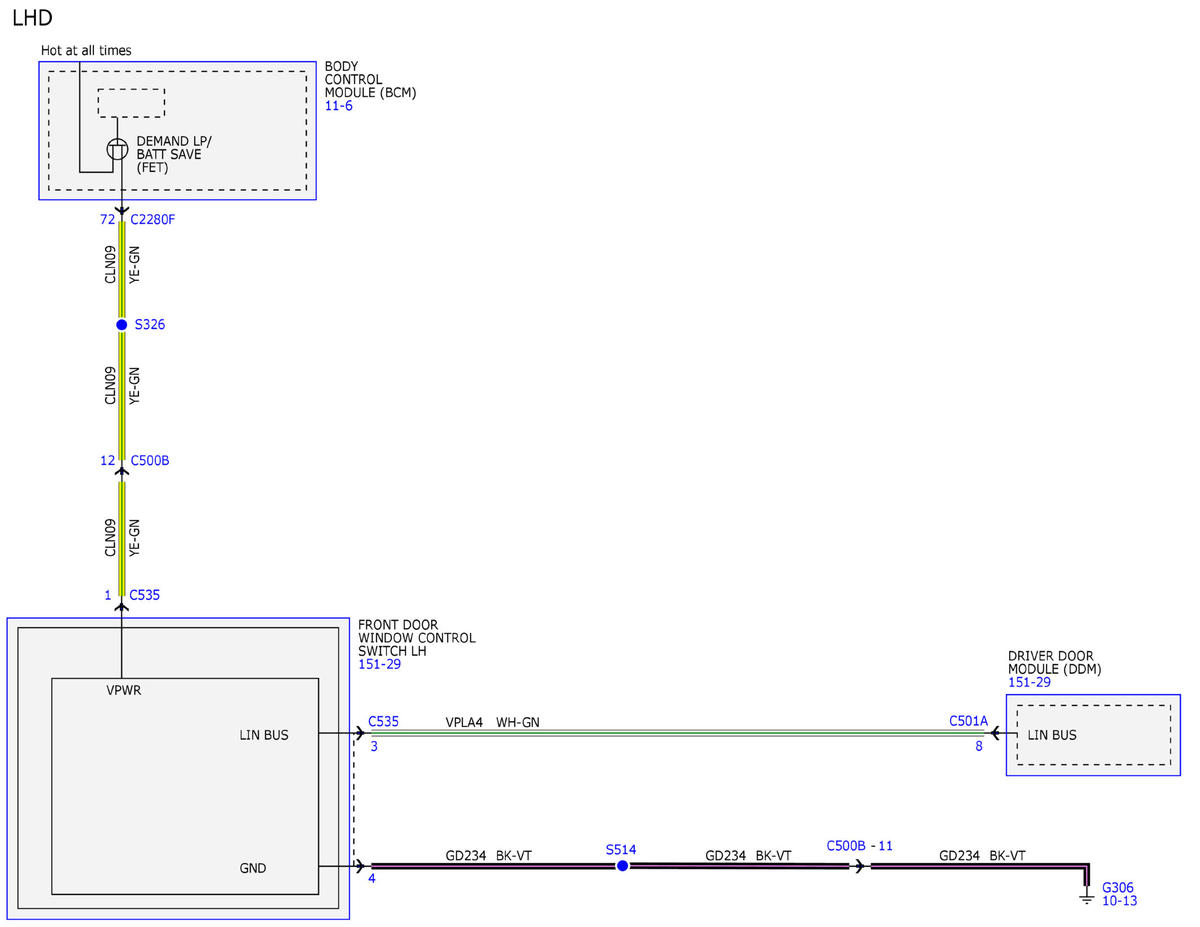

Fig 1: Power Windows Wiring Diagram (1 Of 16)

GFDWR204590

Courtesy of FORD MOTOR COMPANY

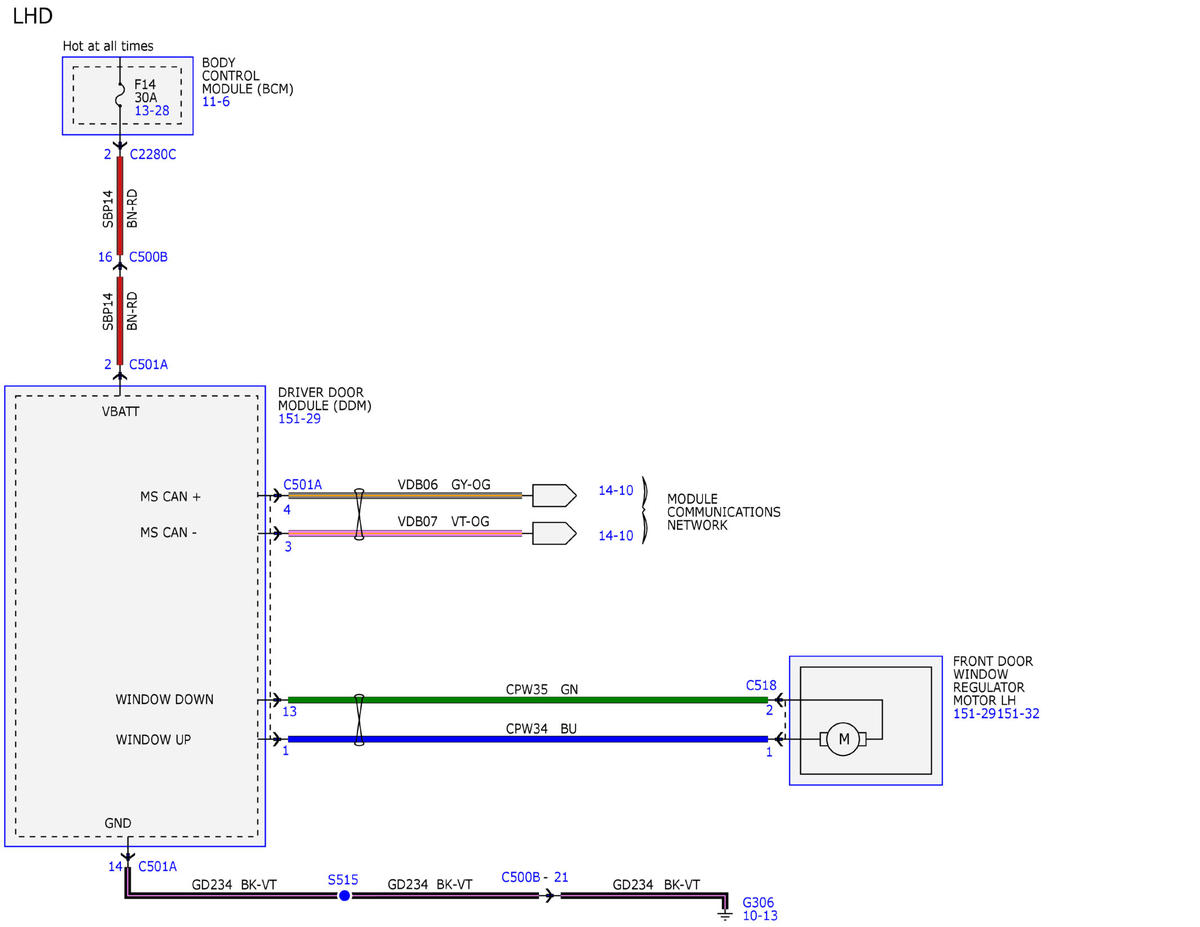

Fig 2: Power Windows Wiring Diagram (2 Of 16)

GFDWR204598

Courtesy of FORD MOTOR COMPANY

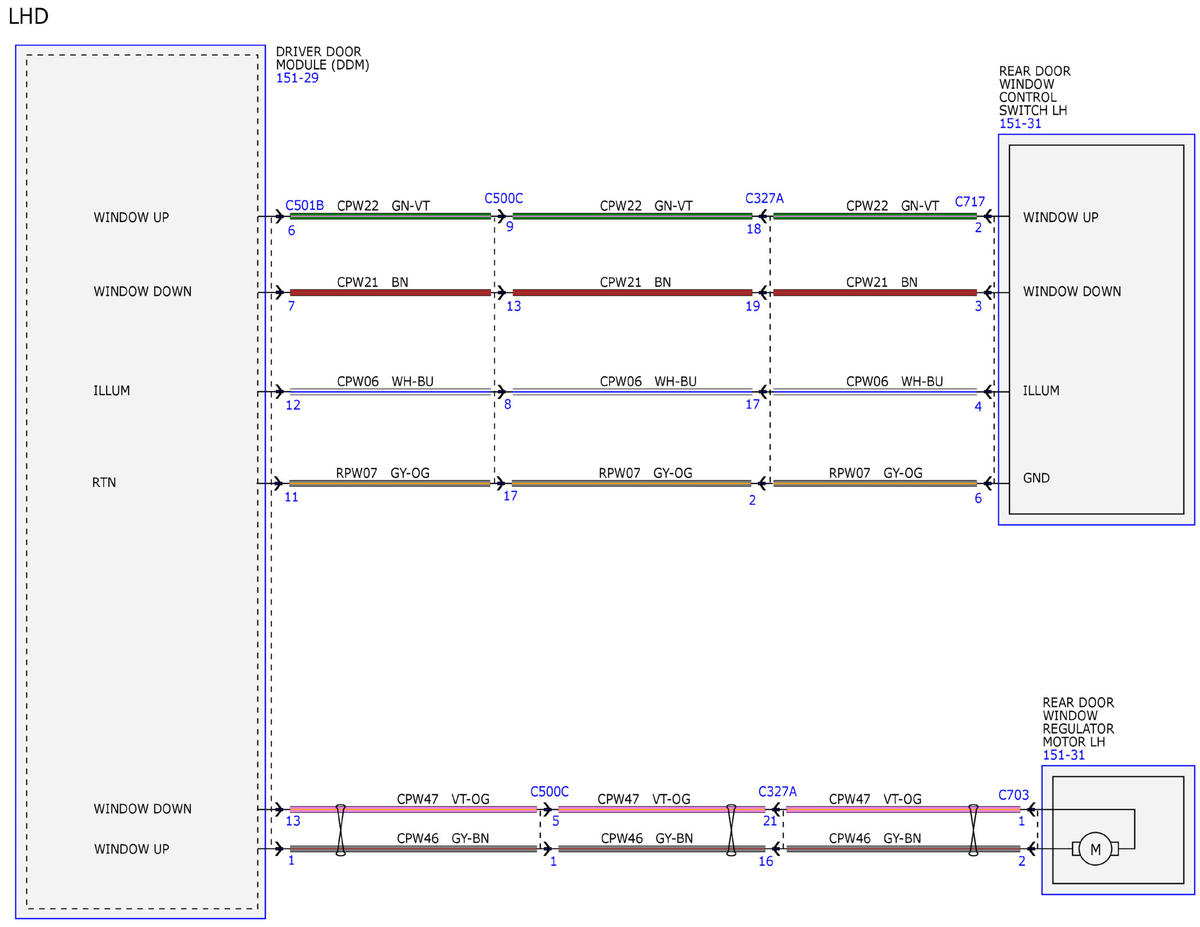

Fig 3: Power Windows Wiring Diagram (3 Of 16)

GFDWR204599

Courtesy of FORD MOTOR COMPANY

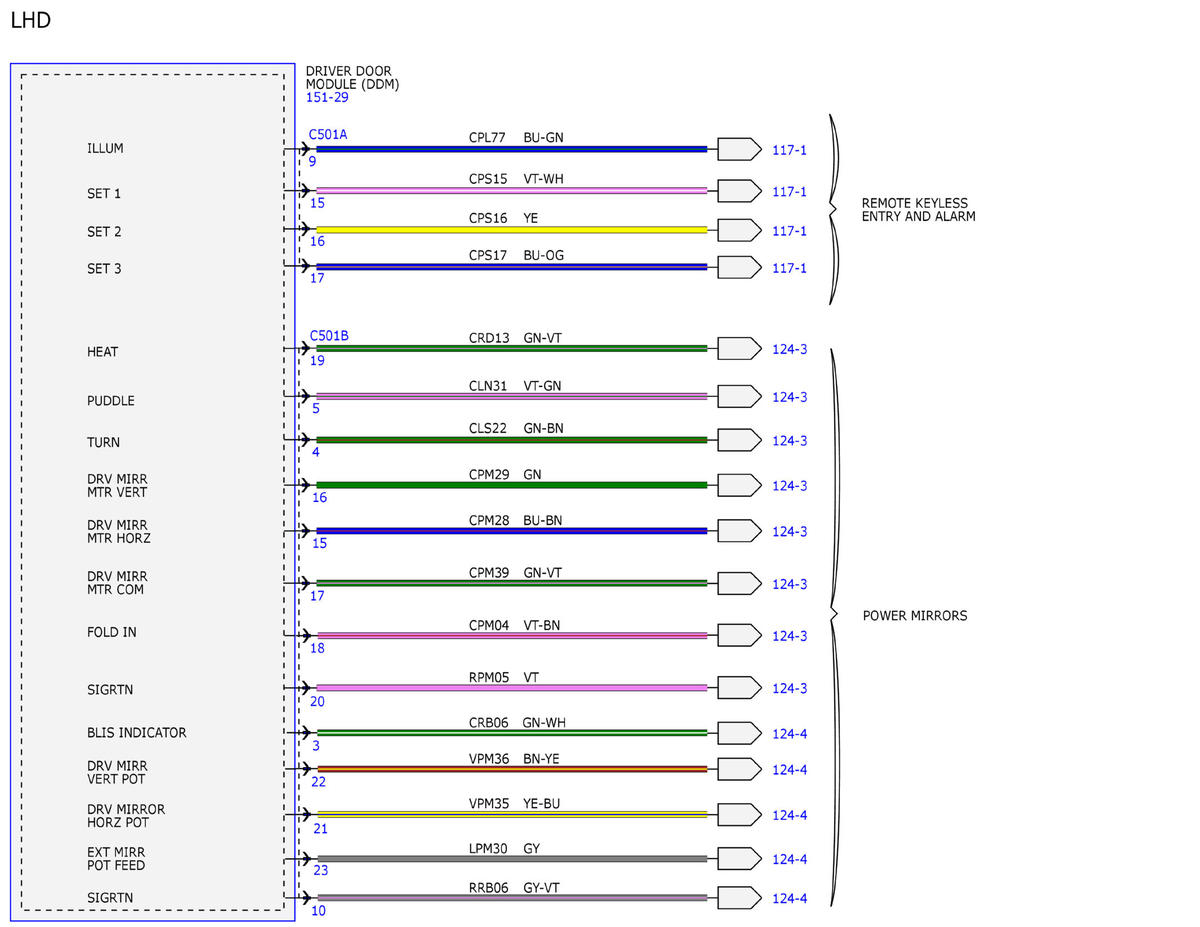

Fig 4: Power Windows Wiring Diagram (4 Of 16)

GFDWR204600

Courtesy of FORD MOTOR COMPANY

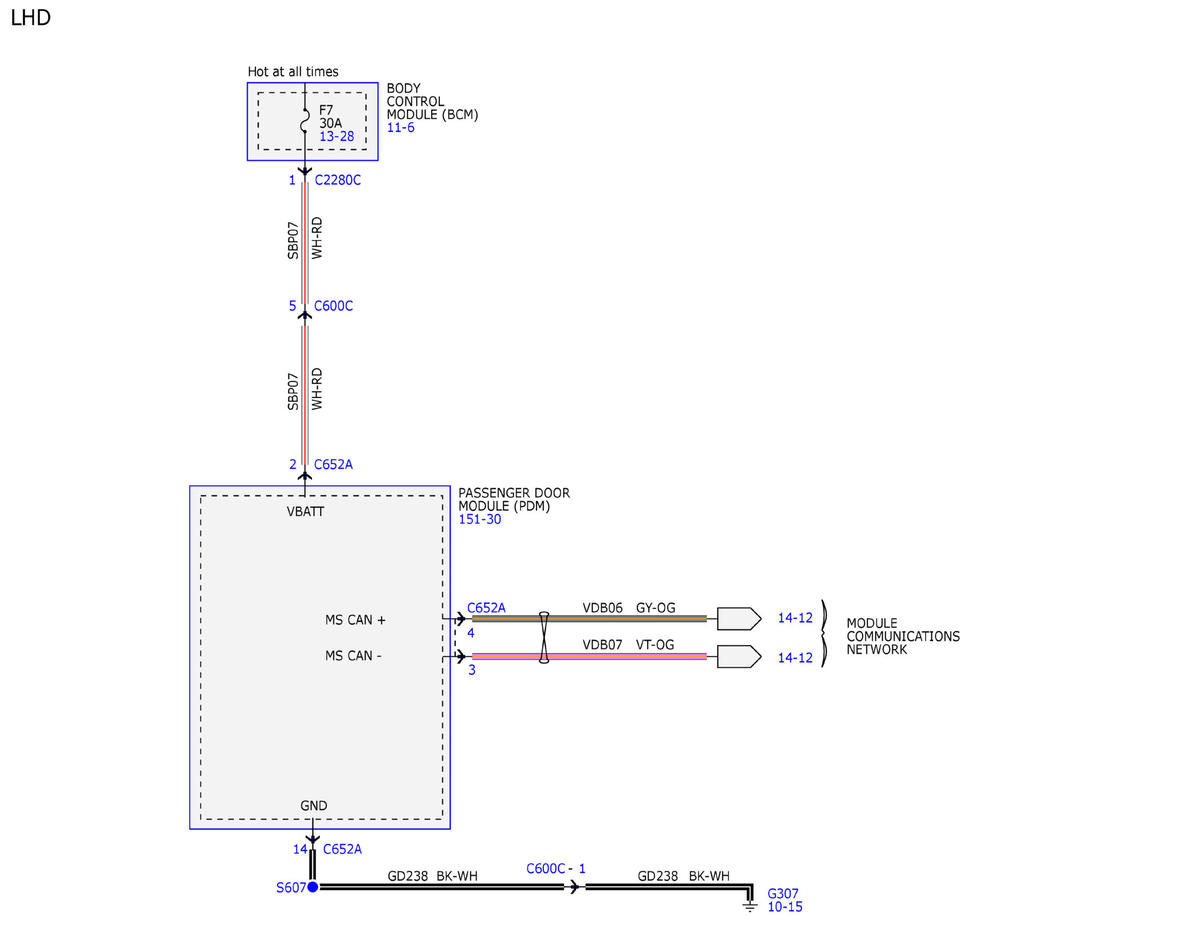

Fig 5: Power Windows Wiring Diagram (5 Of 16)

GFDWR204601

Courtesy of FORD MOTOR COMPANY

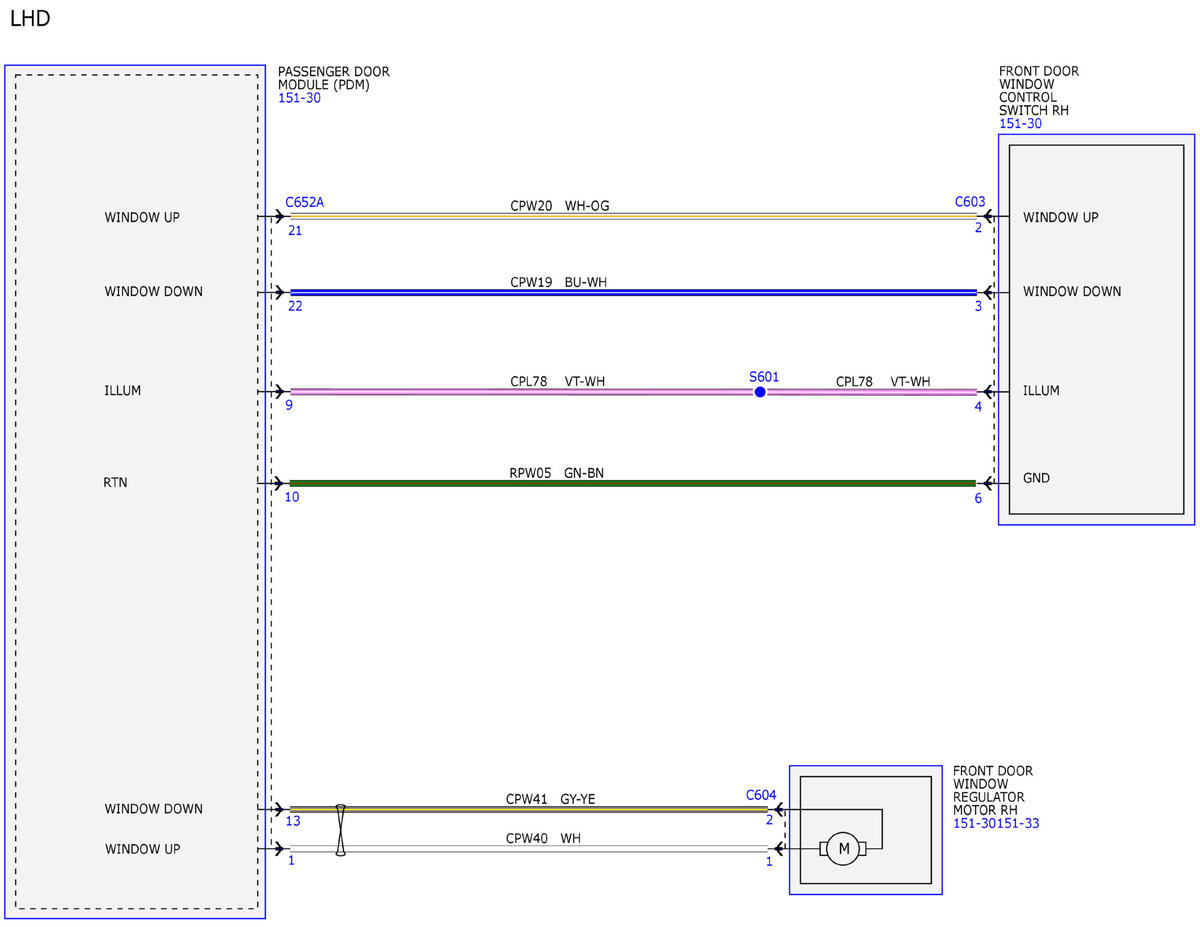

Fig 6: Power Windows Wiring Diagram (6 Of 16)

GFDWR204602

Courtesy of FORD MOTOR COMPANY

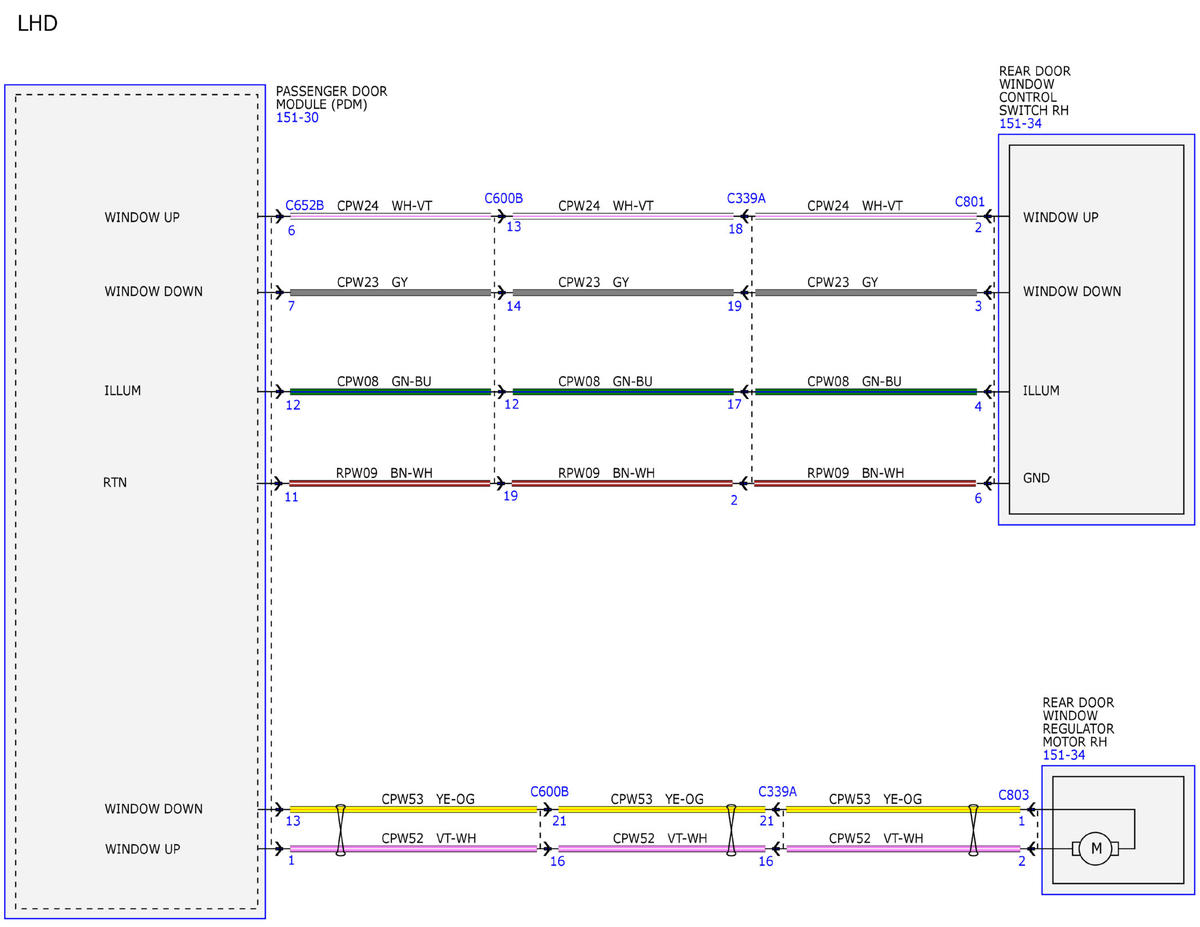

Fig 7: Power Windows Wiring Diagram (7 Of 16)

GFDWR204603

Courtesy of FORD MOTOR COMPANY

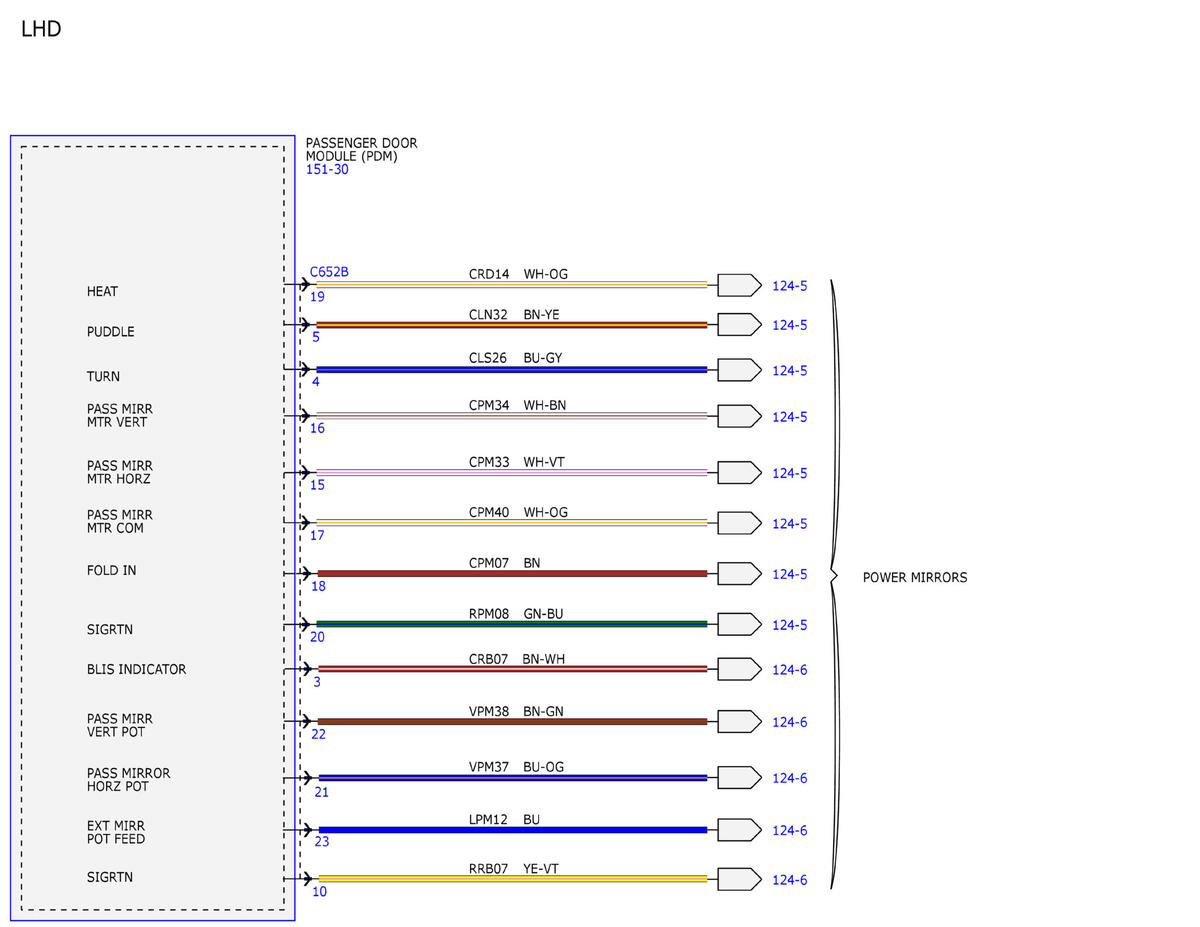

Fig 8: Power Windows Wiring Diagram (8 Of 16)

GFDWR204604

Courtesy of FORD MOTOR COMPANY

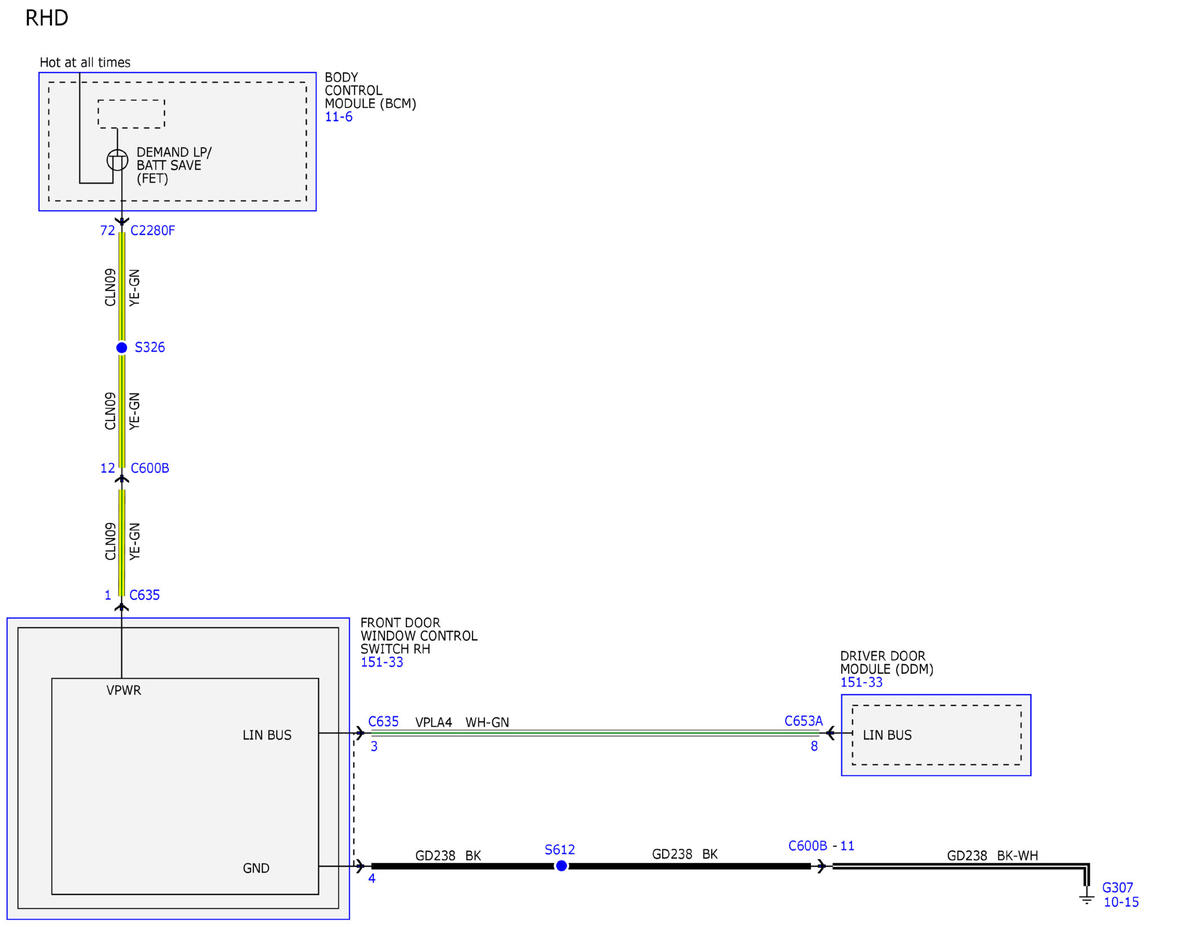

Fig 9: Power Windows Wiring Diagram (9 Of 16)

GFDWR204605

Courtesy of FORD MOTOR COMPANY

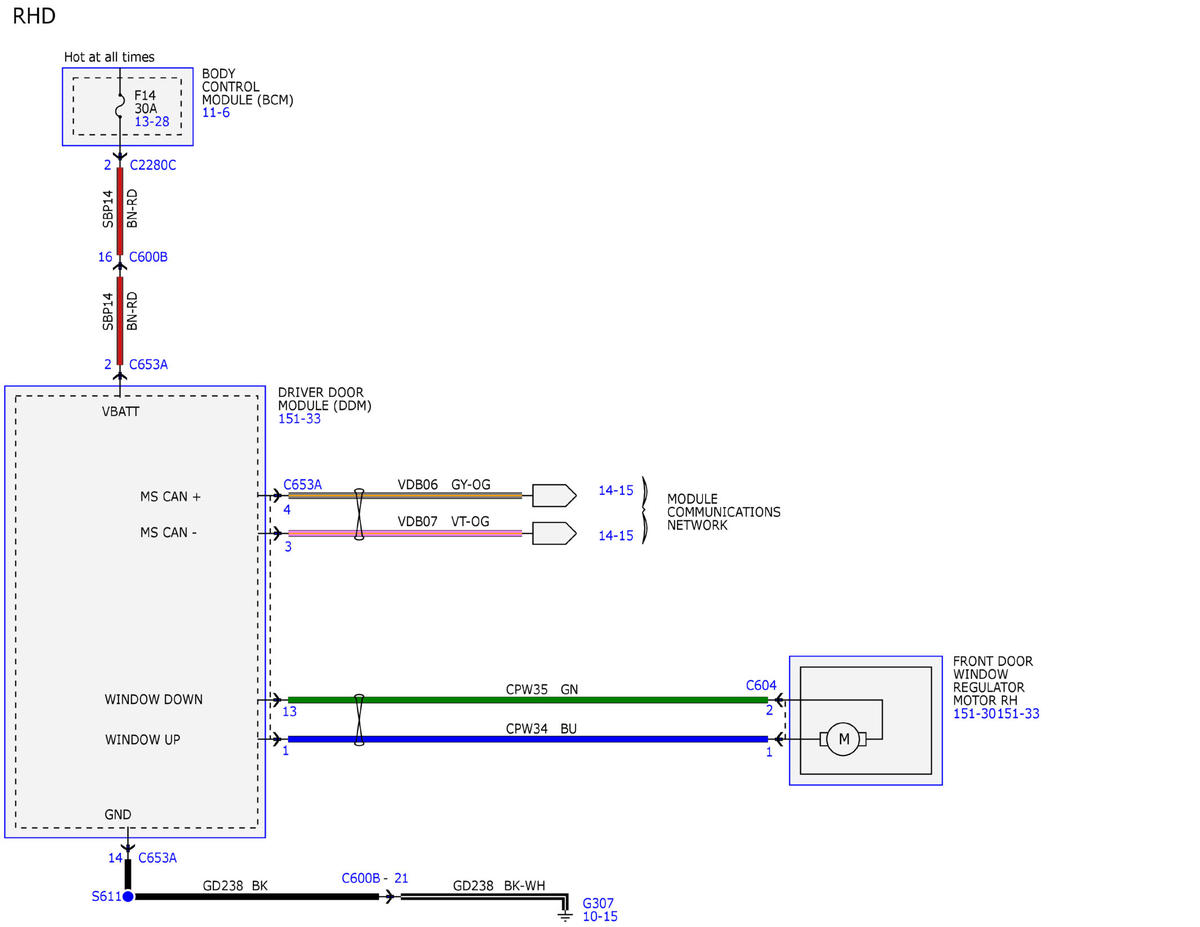

Fig 10: Power Windows Wiring Diagram (10 Of 16)

GFDWR204591

Courtesy of FORD MOTOR COMPANY

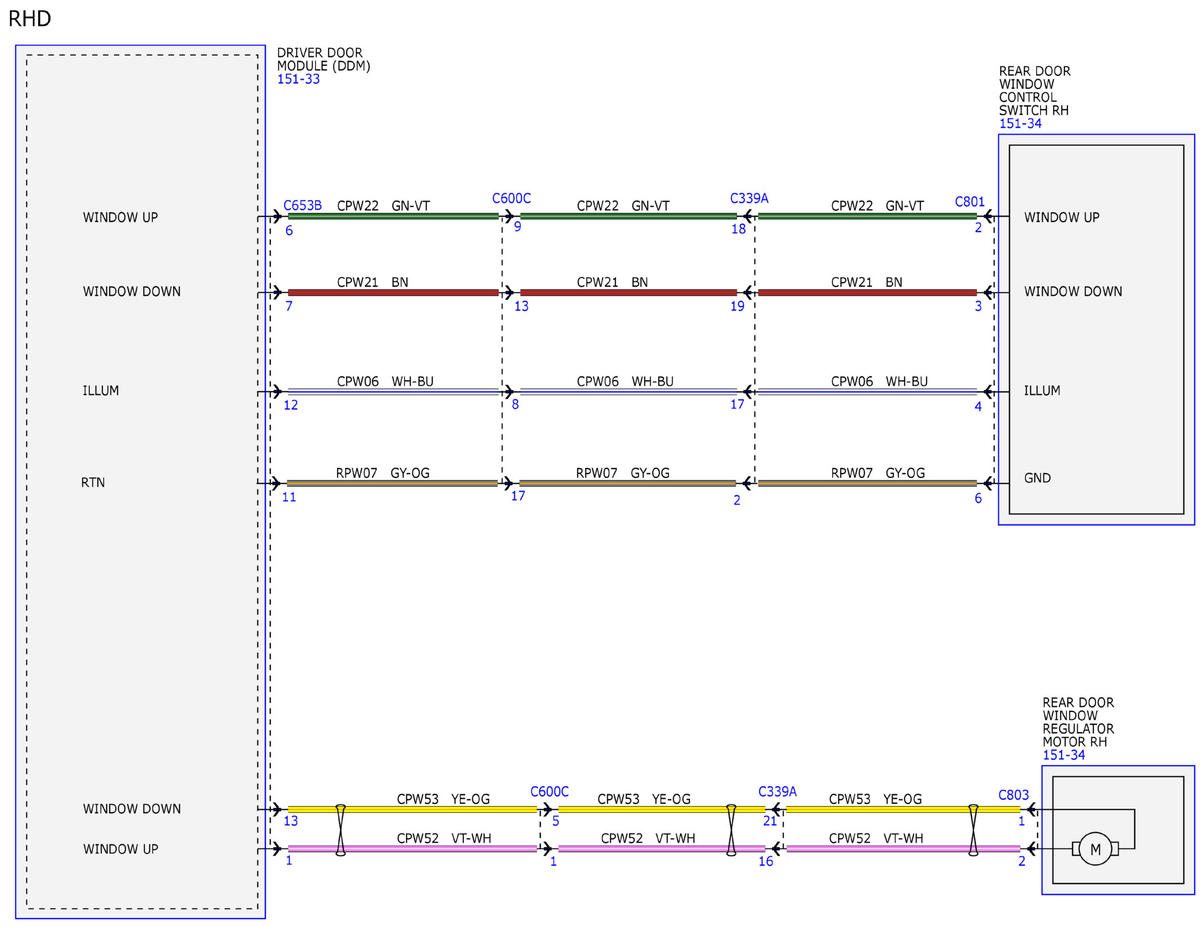

Fig 11: Power Windows Wiring Diagram (11 Of 16)

GFDWR204592

Courtesy of FORD MOTOR COMPANY

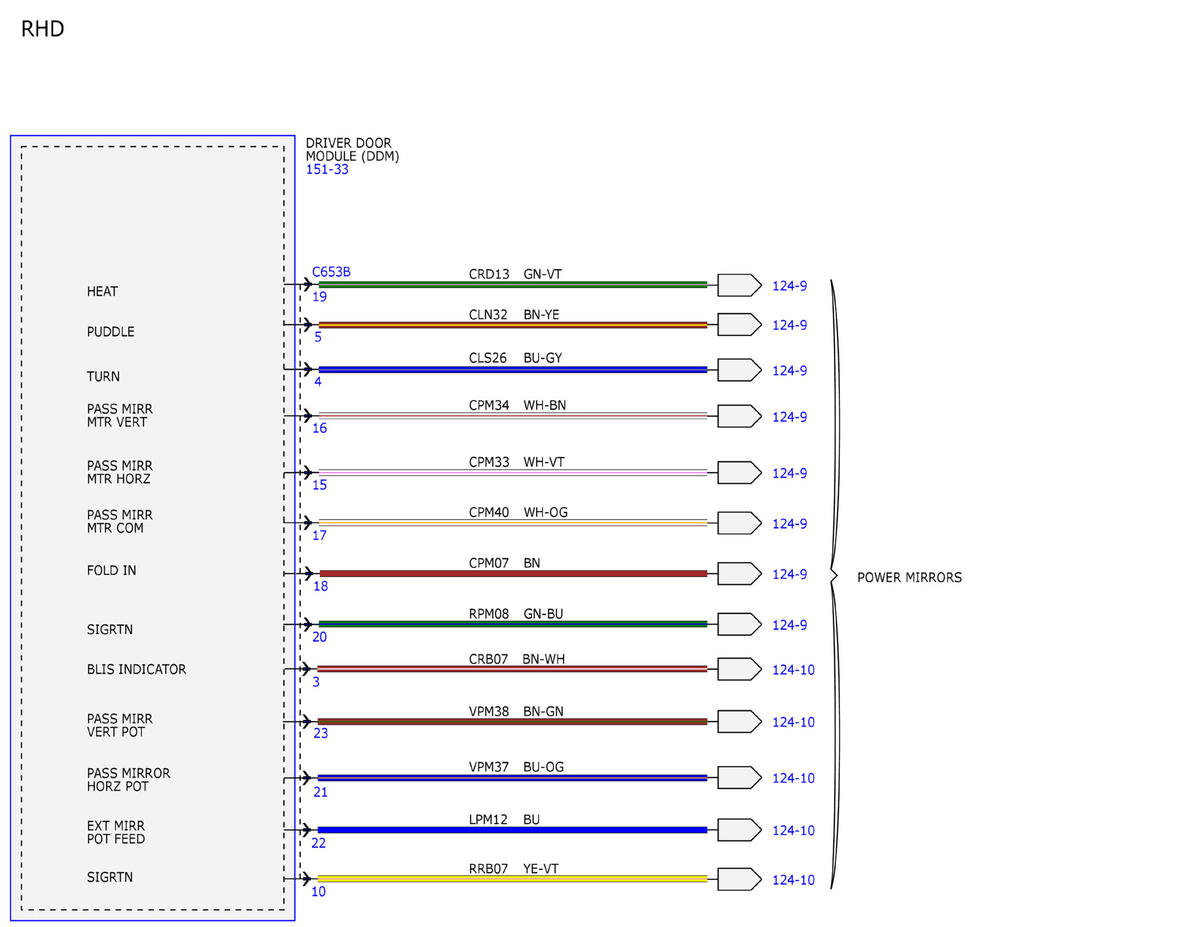

Fig 12: Power Windows Wiring Diagram (12 Of 16)

GFDWR204593

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Windows Wiring Diagram (13 Of 16)

GFDWR204594

Courtesy of FORD MOTOR COMPANY

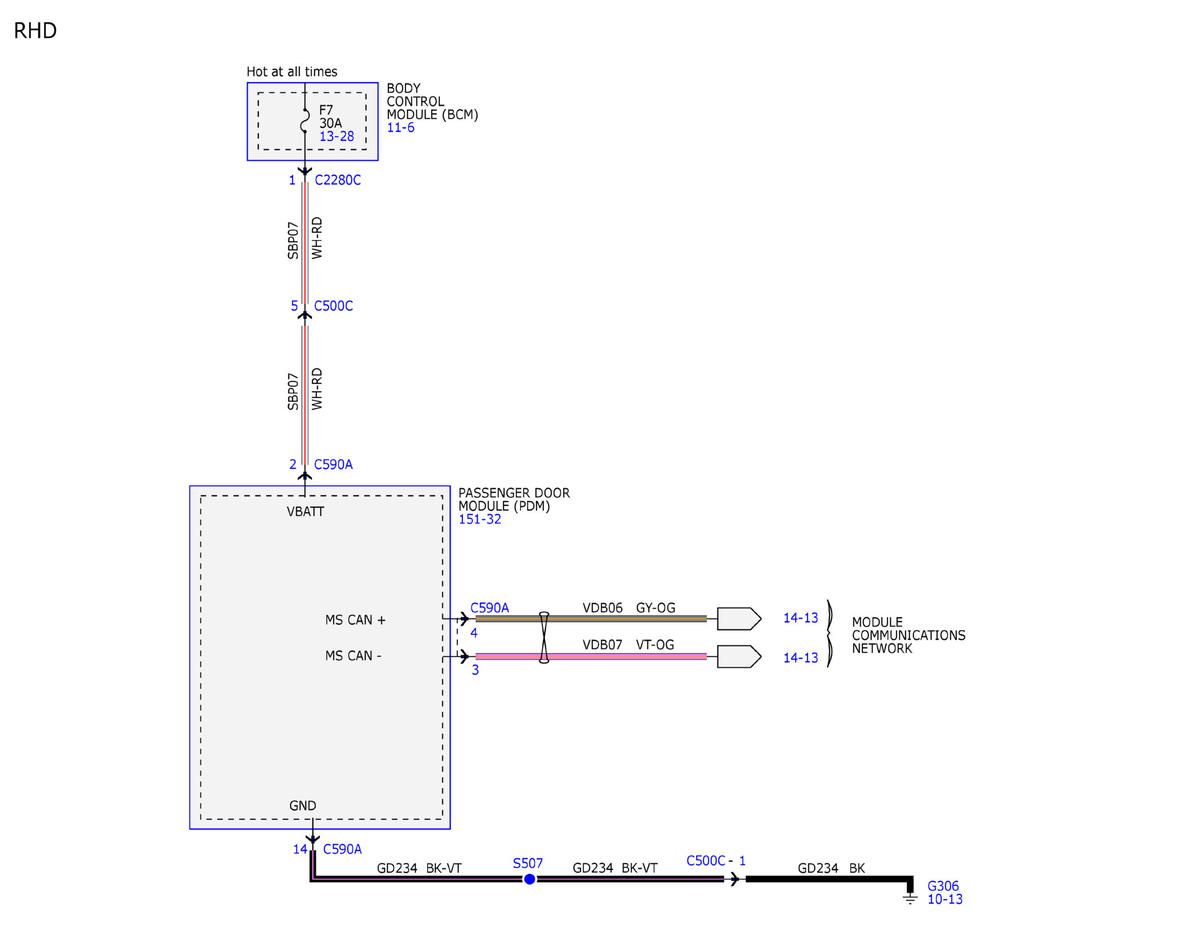

Fig 14: Power Windows Wiring Diagram (14 Of 16)

GFDWR204595

Courtesy of FORD MOTOR COMPANY

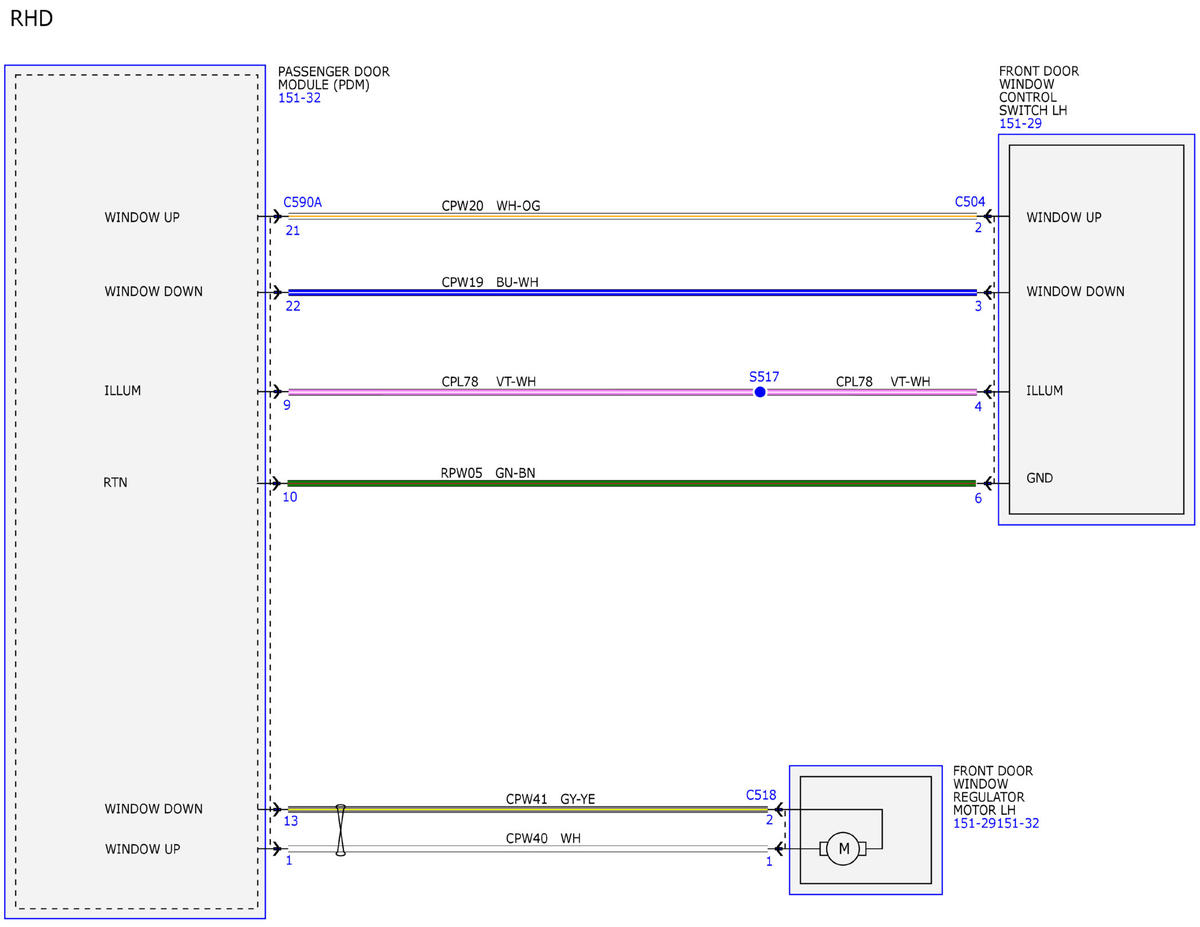

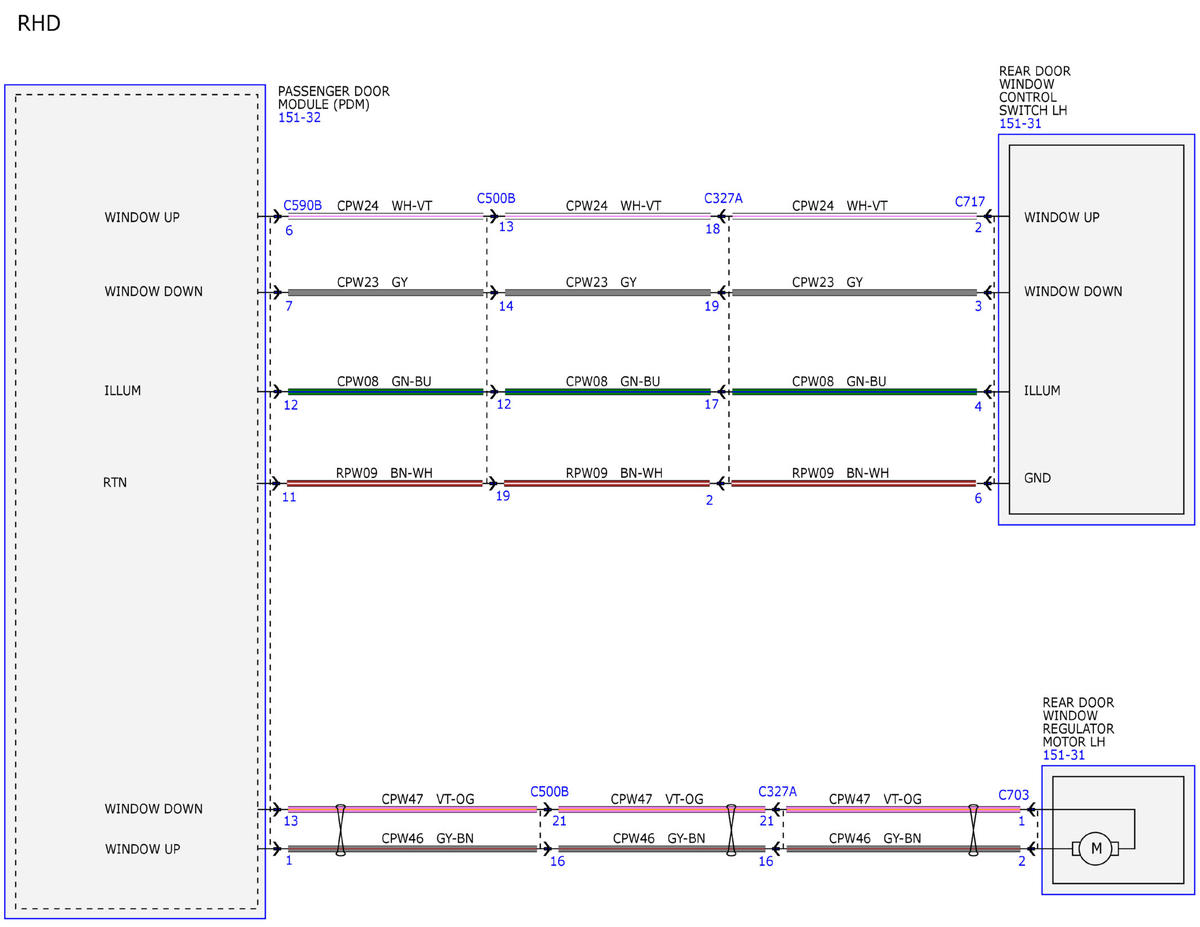

Fig 15: Power Windows Wiring Diagram (15 Of 16)

GFDWR204596

Courtesy of FORD MOTOR COMPANY

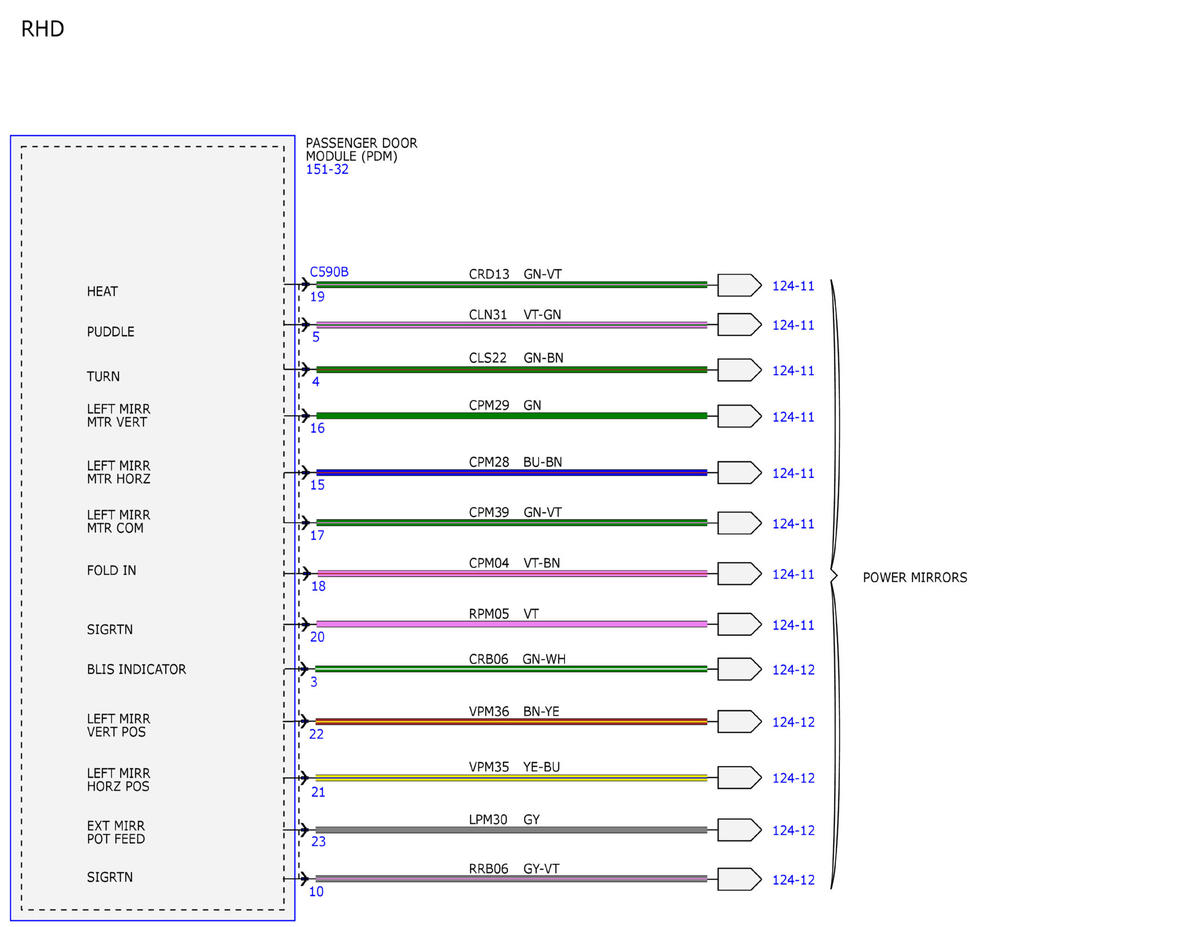

Fig 16: Power Windows Wiring Diagram (16 Of 16)

GFDWR204597

Courtesy of FORD MOTOR COMPANY
