Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

1. Remove the RH valve cover. Refer to: Valve Cover RH

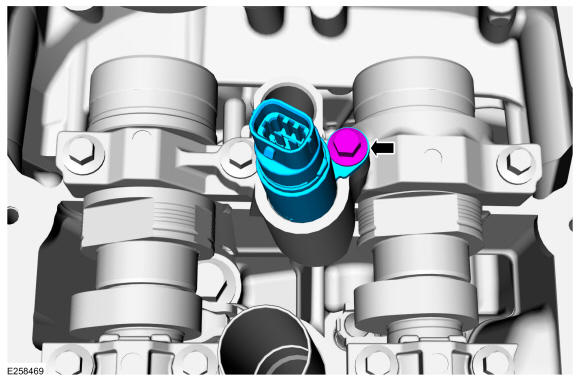

2. Remove the bolt and the exhaust VCT oil control solenoid.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

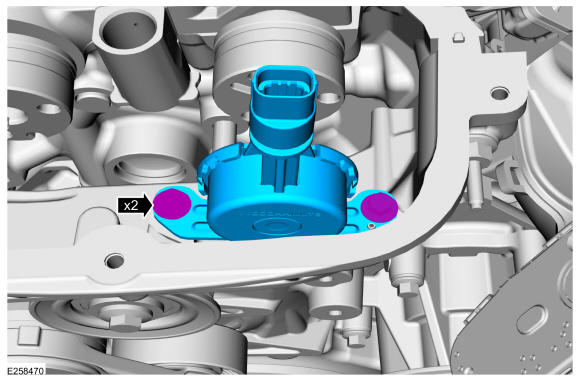

3. Remove the bolts and the intake VCT oil control solenoid.

   Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 30°

   Courtesy of FORD MOTOR COMPANY

   LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

4. Remove the LH valve cover. Refer to:Valve Cover RH

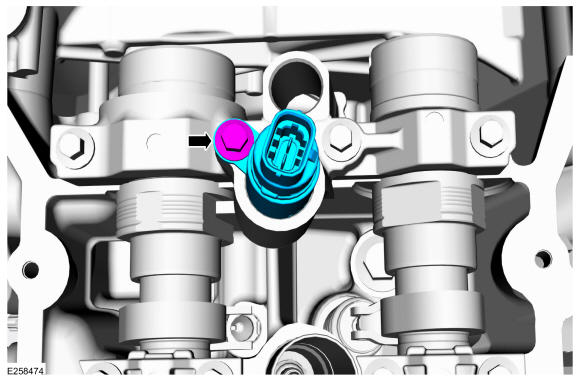

5. Remove the bolt and the exhaust VCT oil control solenoid.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

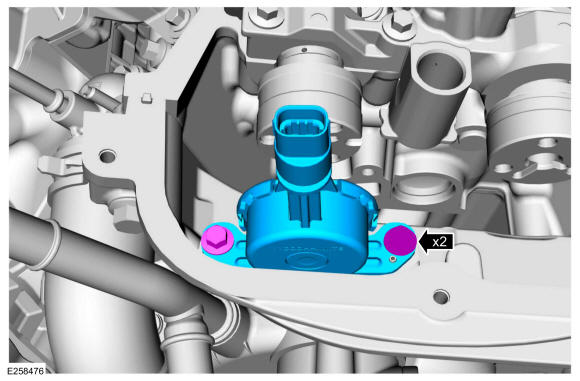

6. Remove the bolts and the intake VCT oil control solenoid.

   Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 30°

Courtesy of FORD MOTOR COMPANY
